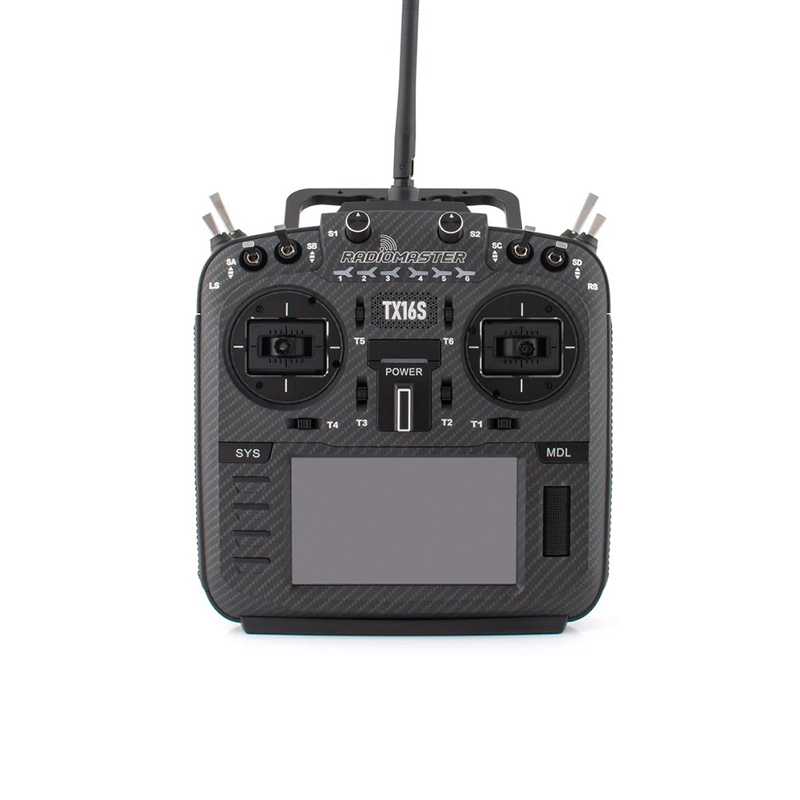

RadioMaster TX16S Mark II Max Radio Controller (M2) - ELRS - Black
The RadioMaster TX16S Mark II Max (M2) is a 16-channel radio transmitter featuring integrated ExpressLRS 2.4GHz technology for low-latency, long-range control, powered by EdgeTX firmware for extensive customization across FPV drones, airplanes, and other RC models.
Features
- Integrated ExpressLRS 2.4GHz module for high-performance, low-latency control.
- High-resolution 4.3-inch color touchscreen (480×272) for intuitive EdgeTX navigation.
- V4.0 gimbals with improved centering and thermal stability for precise input.
- Multi-protocol support via internal module bay for compatibility with various receivers.
- Ergonomic design with optional high/low rear grips and improved knobs/sliders.
Out of stock
The RadioMaster TX16S Mark II Max (M2) represents a significant evolution in open-source radio control, built around a robust 16-channel architecture. Its core integrates a dedicated ExpressLRS 2.4GHz transceiver, providing sub-10ms latency and robust RF link integrity essential for competitive FPV racing and long-range exploration. The system operates on a 6.6-8.4VDC input, compatible with standard 2S or 3S LiPo transmitter batteries.
Engineered for durability and precision, the transmitter features a retooled body shell with improved fit and upgraded internal plastics. The updated V4.0 Hall-effect gimbals share circuitry with the premium AG01 models, delivering exceptional stick resolution and temperature-stable centering. User interface enhancements include redesigned knobs with clear detents, smoother sliders, and a rear-mounted 3.5mm audio jack for headphone telemetry.
Additional Information
| Weight | 0.75 kg |
|---|---|
| Dimensions | 28.7 × 12.9 cm |
