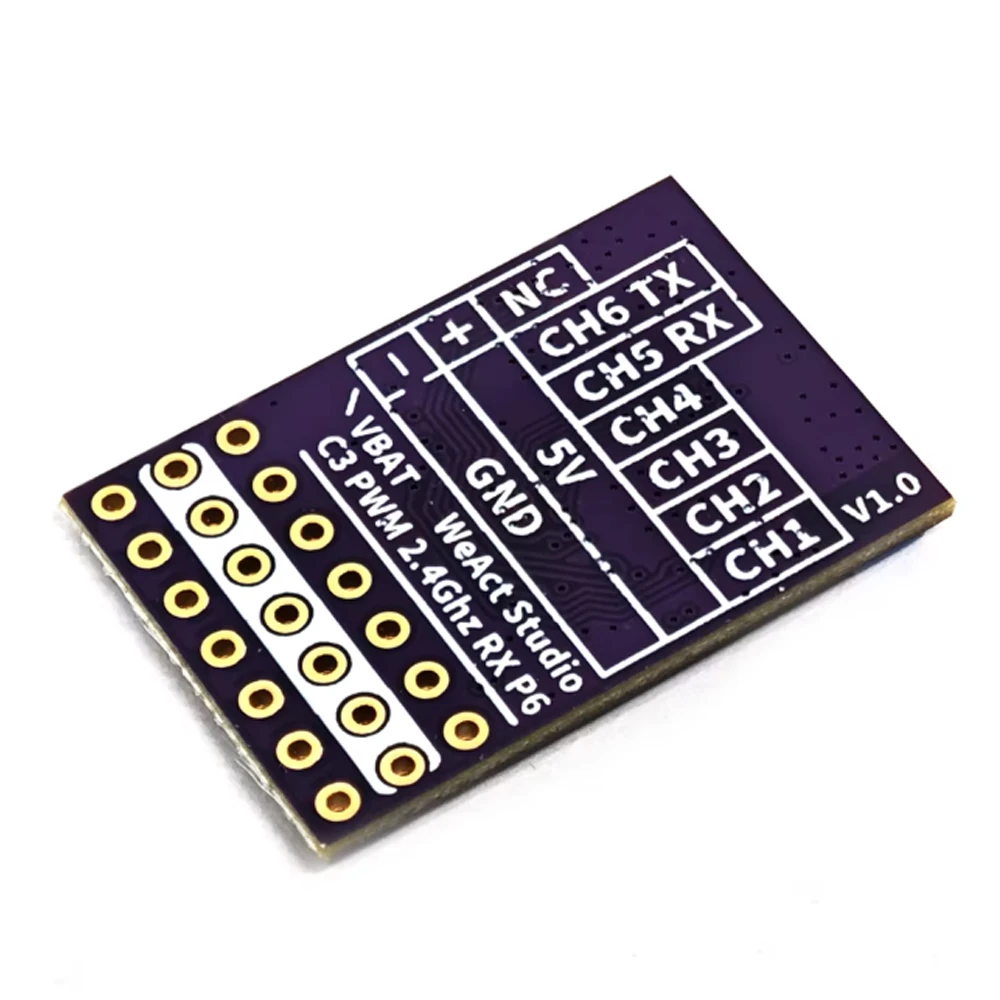

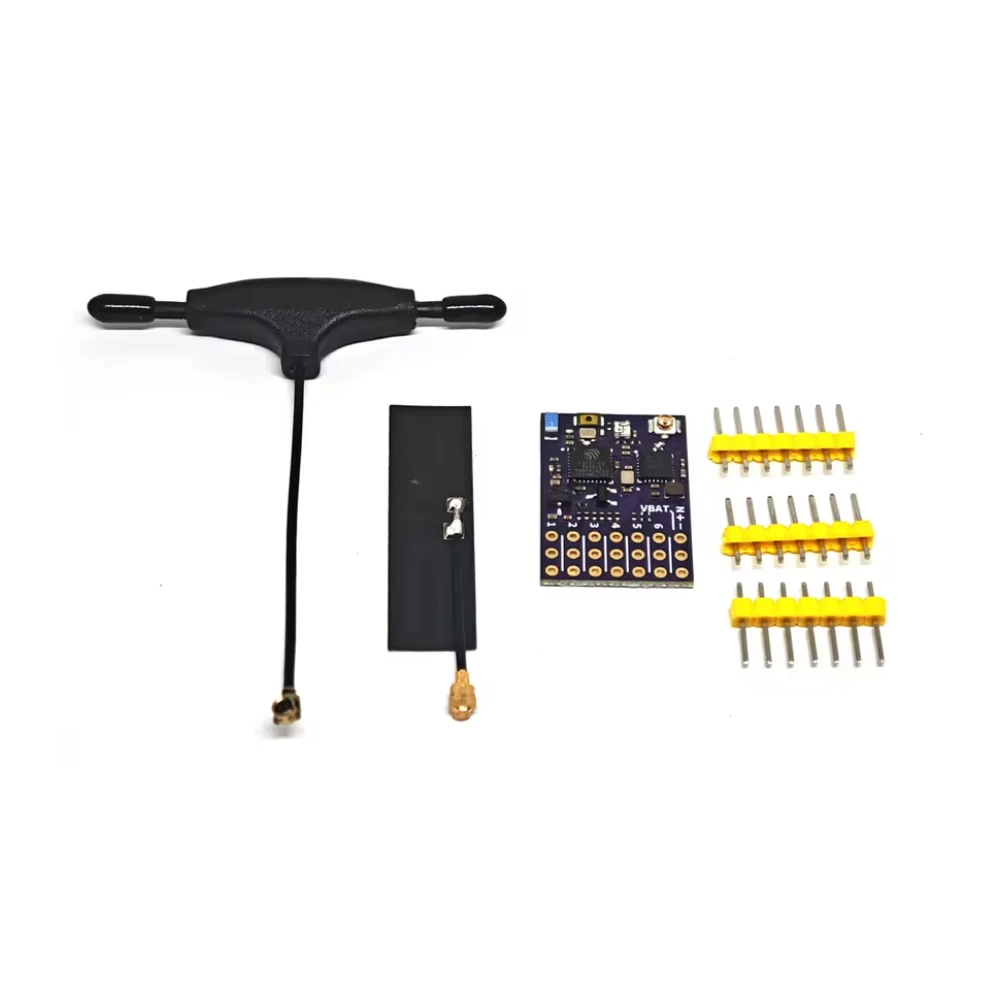

WeAct Studio ELRS 2.4G 6CH PWM/CRSF Receiver - Standard Set
The WeAct Studio ELRS Mini Receiver V1 is a compact 2.4GHz ExpressLRS-compatible module featuring an ESP32-C3FH4 microcontroller and SX1281 RF chip with TCXO for stable, low-latency control. It provides up to 6 PWM outputs, VBAT telemetry, and supports wireless configuration via Wi-Fi Web UI for integration into FPV drones and RC vehicles.
Features
- ExpressLRS 2.4GHz firmware compatibility for long-range, low-latency control.
- Powered by ESP32-C3FH4 microcontroller with integrated Wi-Fi for wireless web configuration.
- SX1281 RF transceiver with 52MHz TCXO ensures high-stability frequency control.
- Supports up to 6 PWM channels plus VBAT voltage monitoring telemetry.
- Compact 26x17x2mm footprint with multi-function button for bind, bootloader, and update modes.
Out of stock

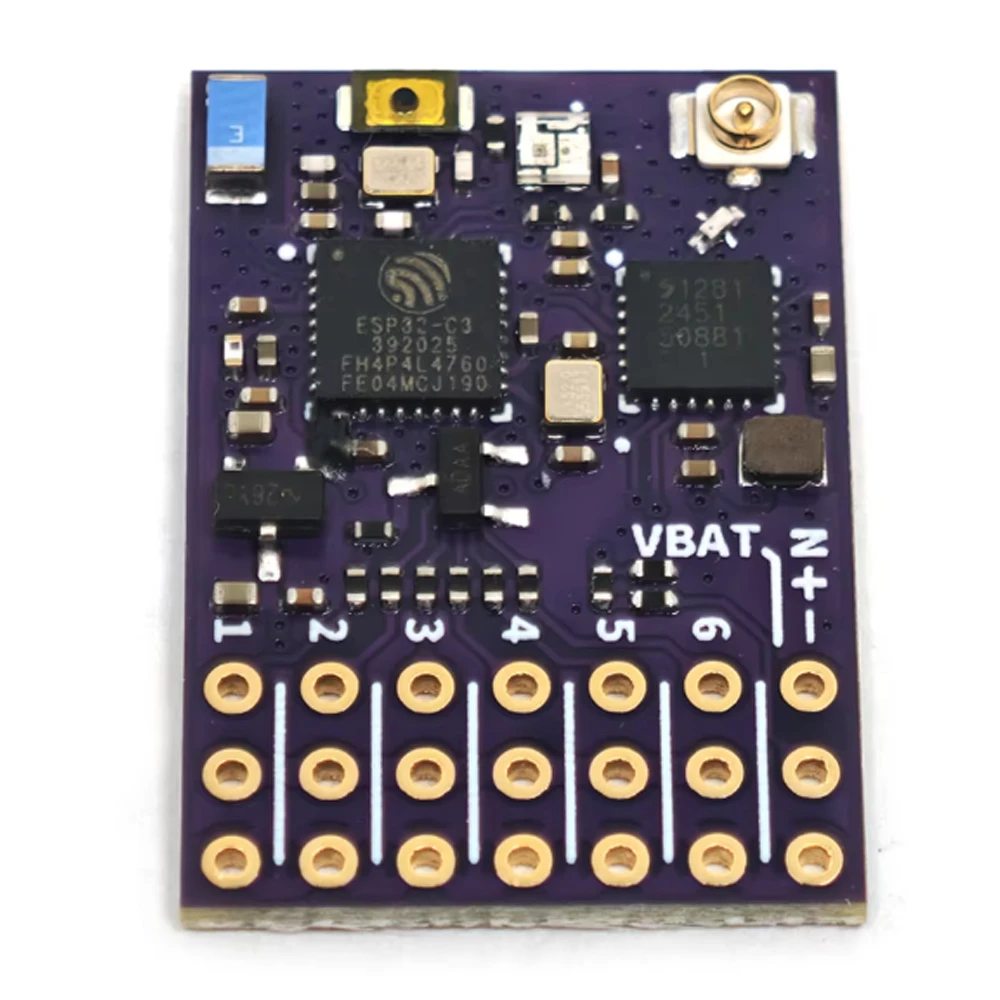

Engineered for reliable integration, the WeAct Studio ELRS Mini Receiver V1 leverages the Semtech SX1281 transceiver paired with a precision temperature-compensated crystal oscillator (TCXO) to maintain a stable 2.4GHz link, minimizing frequency drift. Its ESP32-C3FH4 core provides ample processing power for the ExpressLRS protocol stack while enabling convenient over-the-air firmware updates and configuration via a built-in Wi-Fi access point.
The module’s 3.3V logic-level outputs are compatible with a wide range of flight controllers and servos, and its wide input voltage tolerance simplifies power supply design. The multicolor status LED provides immediate visual feedback on connection state, binding mode, and error conditions, streamlining setup and field diagnostics.
Additional Information
| Weight | 0.003 kg |
|---|---|
| Dimensions | 2.6 × 1.7 × 0.2 cm |
