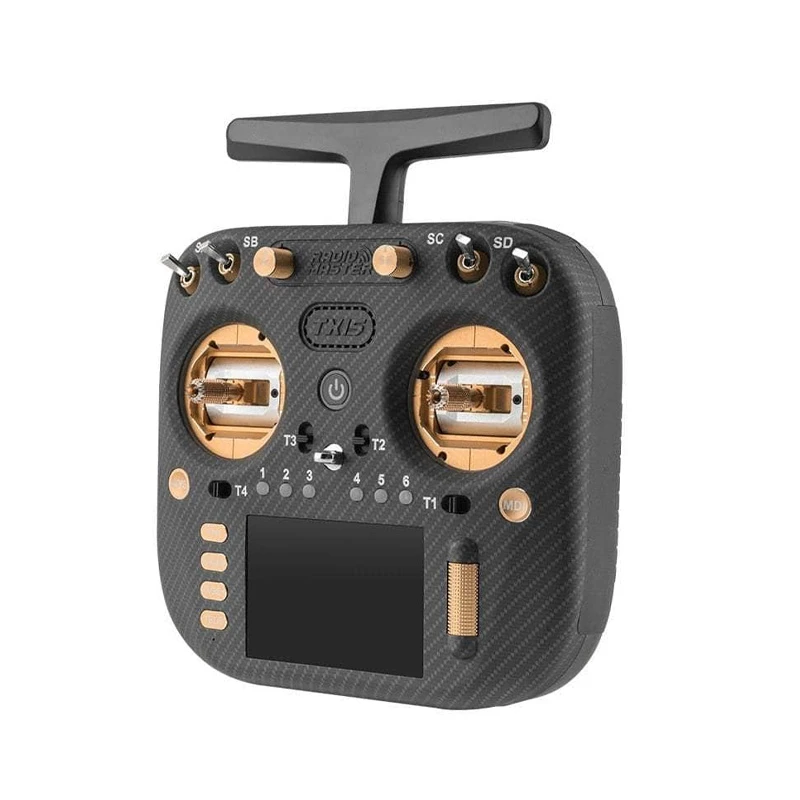

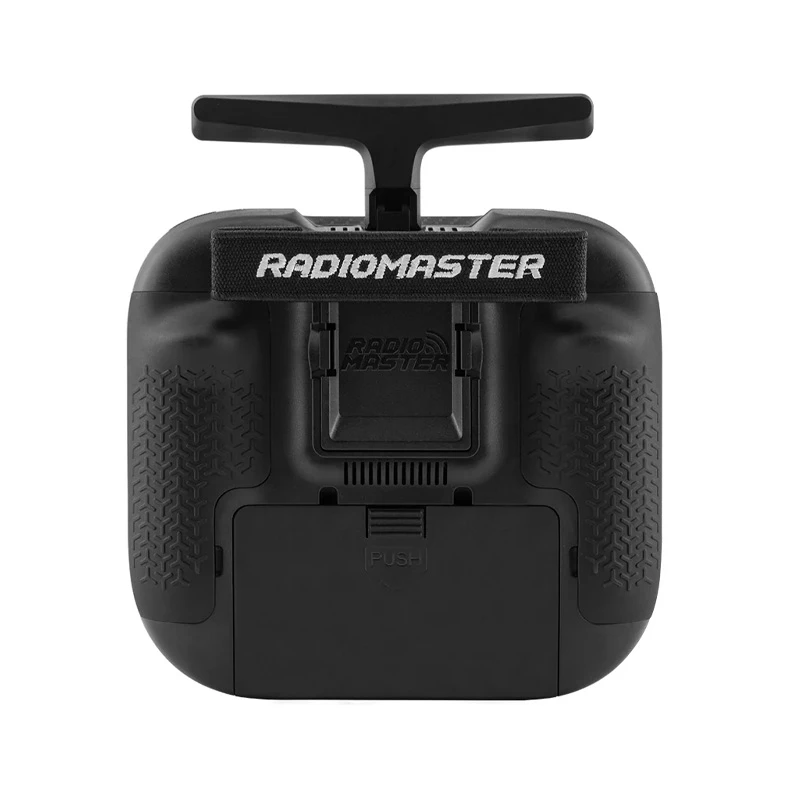

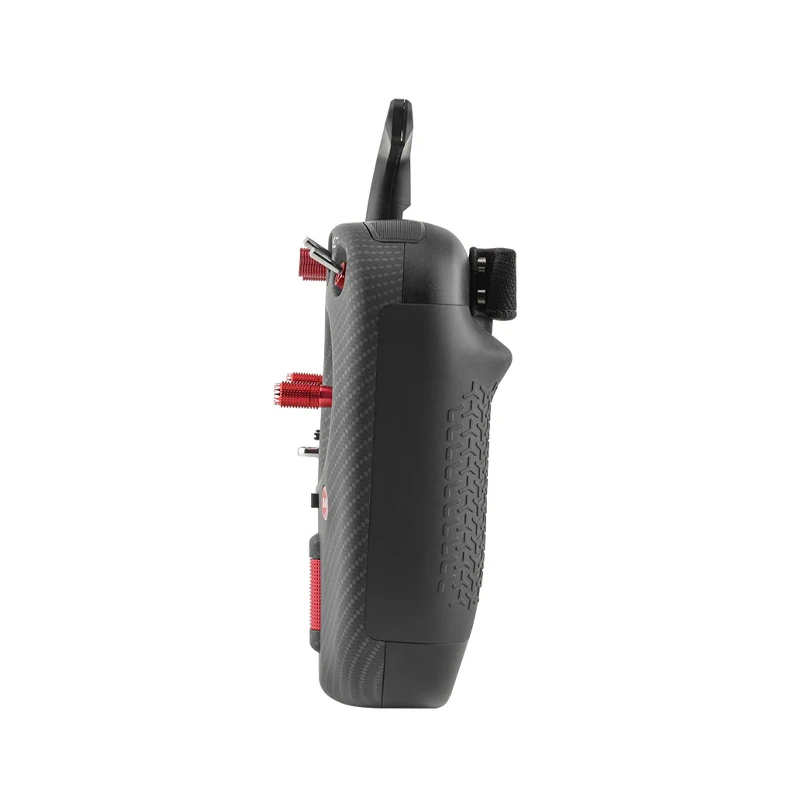

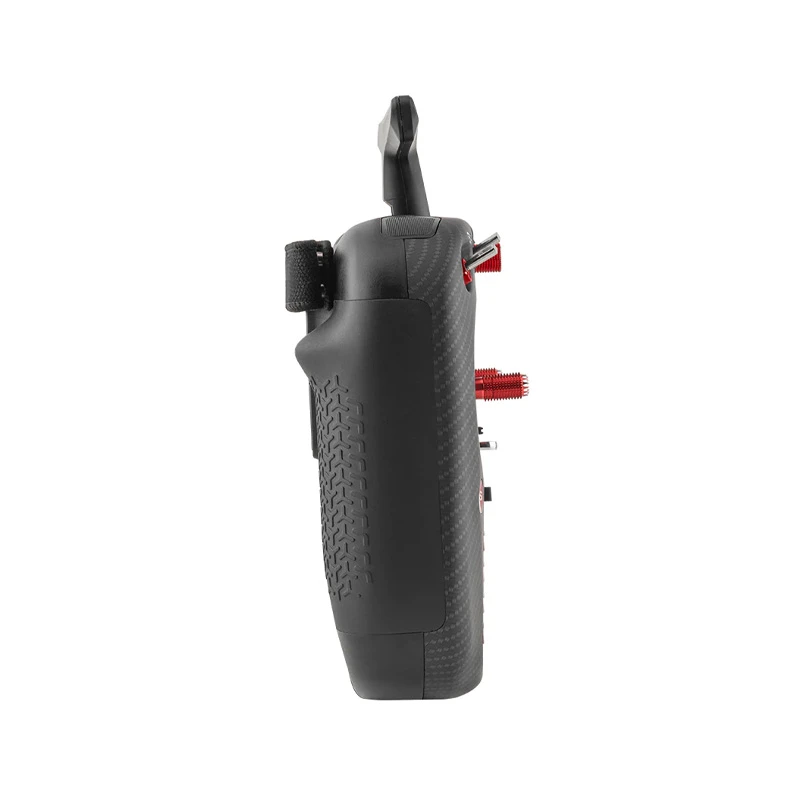

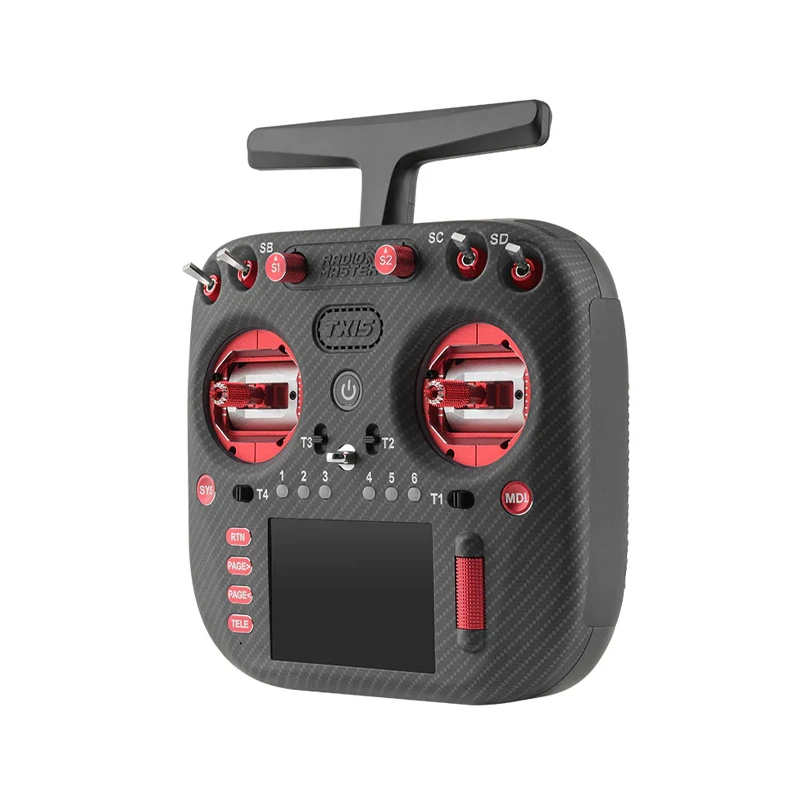

RadioMaster TX15 Max Radio Controller (ELRS / M2) - Red or Gold

₹32,549.00 (Inclusive of all taxes)
Out of Stock

The RadioMaster TX15 Max is a high-performance open-source radio transmitter featuring integrated ExpressLRS 2.4GHz/900MHz, a 3.5-inch IPS touchscreen, and premium AG02 CNC Hall sensor gimbals, designed for advanced FPV and RC pilots running EdgeTX firmware.

Features

  • Integrated ExpressLRS 2.4GHz/900MHz module for ultra-low latency and long-range control.
  • High-performance STM32 H7 processor ensures smooth EdgeTX operation and rapid model switching.
  • 3.5-inch IPS touchscreen (480×320) for clear, intuitive interface navigation and telemetry display.
  • Premium AG02 CNC Hall sensor gimbals offer exceptional precision, smoothness, and adjustable travel.
  • Advanced cooling system with low-noise fans and aluminum heatsink maintains optimal operating temperatures.

Out of stock

Description

The RadioMaster TX15 Max is engineered as a versatile and powerful control hub for demanding FPV and RC applications. Its core is driven by a robust STM32 H7 processor, which provides the computational power needed for the responsive EdgeTX open-source firmware, supporting up to 16 channels and complex model configurations. The integrated ExpressLRS system offers dual-band flexibility, ensuring a stable, low-latency link critical for racing and long-range exploration.

Beyond its core radio functions, the TX15 Max incorporates thoughtful design elements for enhanced usability and durability. The efficient active cooling system prevents thermal throttling during extended use, while the foldable antenna and ergonomic form factor improve portability. Features like the built-in motion sensor, customizable RGB gimbal lighting, and interchangeable shoulder switches allow pilots to tailor the controller to their specific flying style and operational needs.

Key Features

  • High-Speed Processing: STM32 H7 microcontroller enables the fastest EdgeTX radio performance for instant response.
  • Dual-Band ExpressLRS: Built-in module supports both 2.4GHz for high packet rates and 900MHz for superior penetration and range.
  • Premium AG02 Gimbals: CNC-machined Hall effect gimbals with over 20% reduced weight for precise, friction-free control feel.
  • Advanced Thermal Management: Integrated low-noise cooling fans paired with an aluminum heatsink ensure sustained performance.
  • Customizable Control Interface: Features interchangeable shoulder switches, a built-in motion sensor, and LUA-scriptable RGB gimbal rings.
  • Expandable Storage: Combines internal flash memory with external MicroSD card support for firmware, models, and audio files.
  • Smart Power Circuitry: Intelligent battery balancing circuit maximizes runtime and protects the internal 18650 power system.

Applications

  • Primary transmitter for competitive FPV drone racing requiring ultra-low latency and precise gimbal control.
  • Long-range and cinematic FPV drone piloting, leveraging the dual-band ExpressLRS system for reliable link integrity.
  • Advanced RC model control for fixed-wing, helicopters, and ground vehicles utilizing EdgeTX's extensive mixing and scripting capabilities.
  • Drone swarm or payload control operations benefiting from the motion sensor for tilt-based camera gimbal or switch triggering.
  • Development and testing platform for custom LUA scripts and EdgeTX firmware features due to its open-source architecture.

Technical Specifications

Radio FirmwareEdgeTX (Requires v3.0.0+)
Module FirmwareExpressLRS
Supported RF Bands2.4GHz & 900MHz
Max Channels16 (Receiver Dependent)
Display3.5-inch IPS Touchscreen, 480 x 320 resolution
GimbalsAG02 CNC Hall Sensor Gimbals
ProcessorSTM32 H7
StorageInternal Flash + MicroSD Card Slot
CoolingActive Fan with Aluminum Heatsink
Power18650 Battery Tray (2x cells)
ConnectivityUSB-C
Special FeaturesMotion Sensor, RGB Gimbal Lights, Foldable Antenna, Built-in Microphone
Shipping Weight0.99 kg
Shipping Dimensions22 x 22 x 12 cm

Frequently Asked Questions

What firmware does the RadioMaster TX15 Max run, and what version is required?

The TX15 Max runs the open-source EdgeTX firmware on its internal STM32 H7 processor. It requires EdgeTX version 3.0.0 or later for full functionality. The integrated ExpressLRS module runs its own dedicated firmware, which can be updated via Wi-Fi or USB for the latest protocols and performance enhancements.

Does the built-in ExpressLRS module support both 2.4GHz and 900MHz, and can I switch between them?

Yes, the integrated ExpressLRS hardware natively supports both the 2.4GHz and 900MHz frequency bands. You can select and configure the desired band within the ExpressLRS Lua script or via the ExpressLRS configurator. The 2.4GHz band is ideal for high packet rates and racing, while 900MHz offers better signal penetration and range for long-distance flights.

What type of batteries does the TX15 Max use, and what is the expected runtime?

The transmitter uses two standard 18650 lithium-ion cells via the included battery tray. Its smart balance battery circuit optimizes power draw and cell health. Runtime varies based on screen brightness, backlight, and RF output power but typically lasts for several hours of continuous use. The USB-C port also allows for operation via a power bank or direct charging of the installed cells.

Are the AG02 gimbals on the TX15 Max adjustable?

Absolutely. The premium AG02 CNC Hall sensor gimbals feature fully adjustable travel on both the vertical and horizontal axes. The included high-tension springs and set screws allow pilots to fine-tune the stick tension, center feel, and maximum deflection to match personal preference for precise control in FPV racing or smooth cinematic flying.

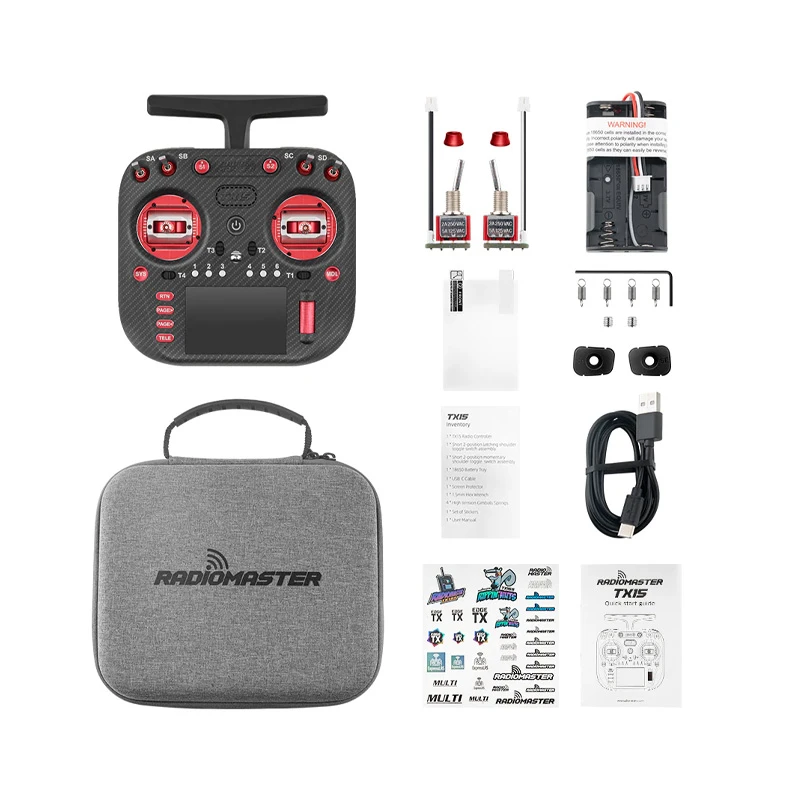

Package Includes

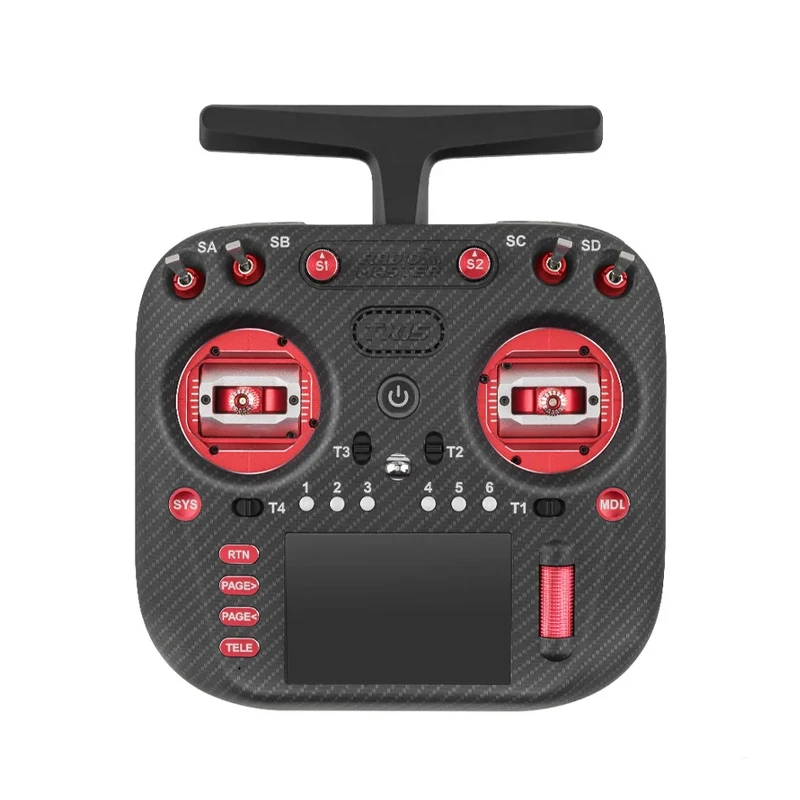

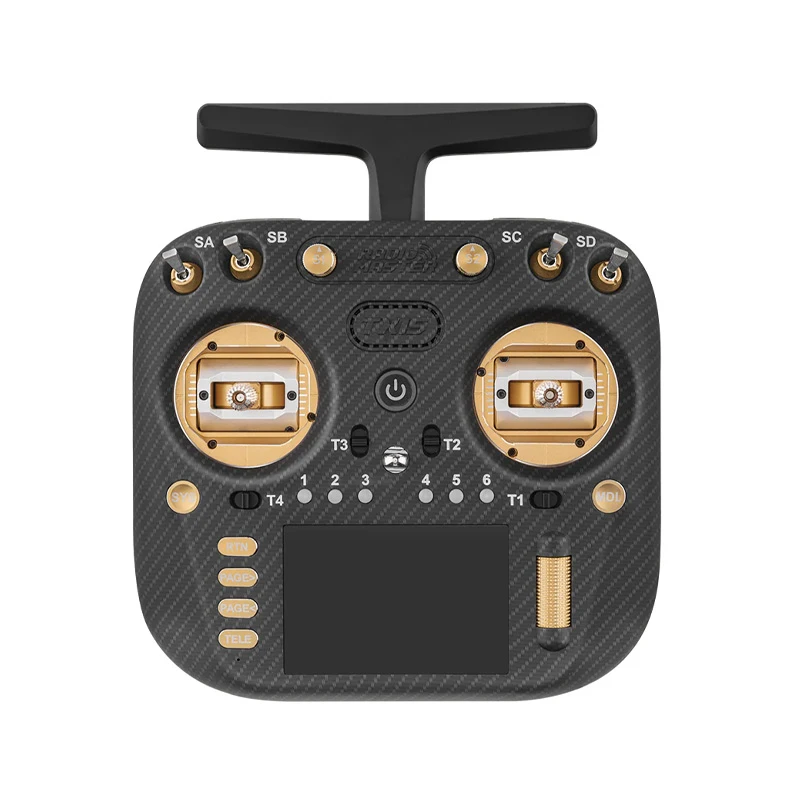

  • 1 x RadioMaster TX15 Max Radio Controller (Color: Red or Gold)

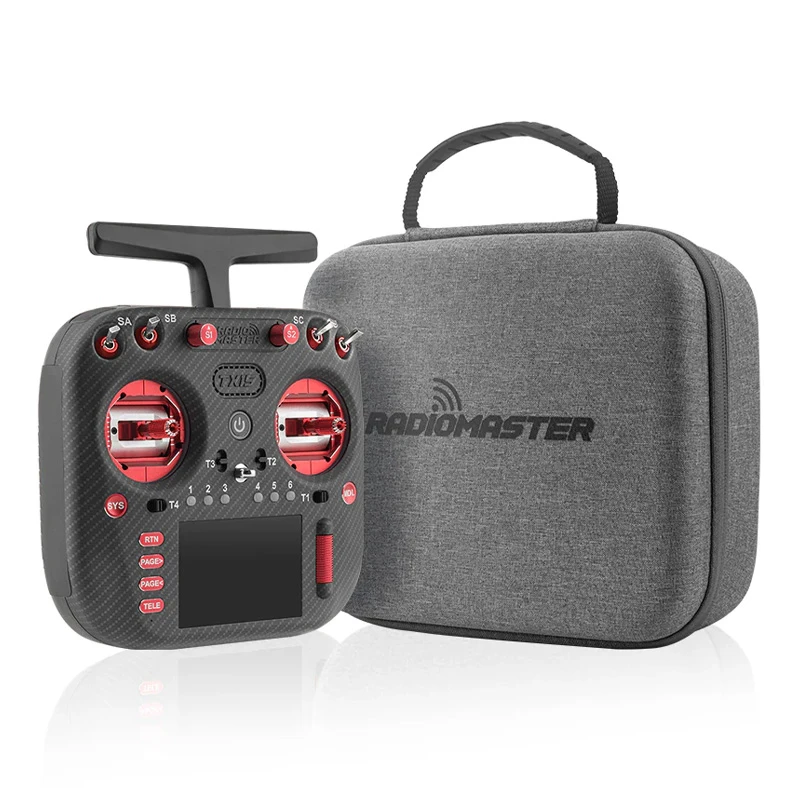

  • 1 x Signature Carry Case
  • 1 x Short 2-position Latching Shoulder Toggle Switch Assembly
  • 1 x Short 2-position Momentary Shoulder Toggle Switch Assembly
  • 1 x 18650 Battery Tray
  • 1 x USB-C Cable
  • 1 x Screen Protector
  • 1 x 1.5mm CubePilot Wrench
  • 4 x High Tension Gimbals Springs
  • 2 x Gimbal Stick Set Screw
  • 1 x Stickers Set
  • 1 x User Manual
  • 1 x Inventory Card

Additional Information

Weight 0.99 kg
Dimensions 22 × 22 × 12 cm
