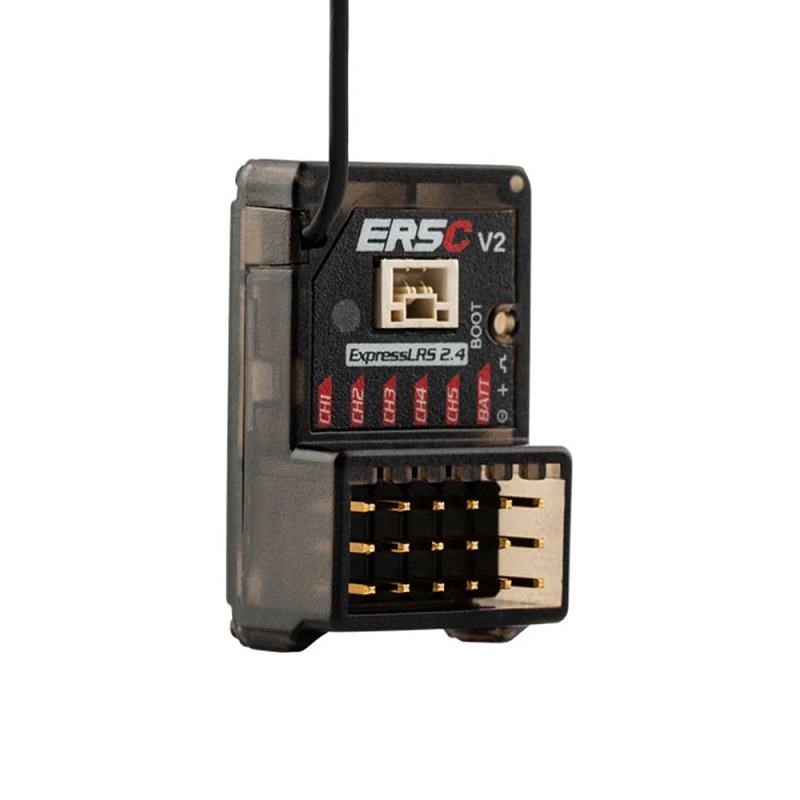

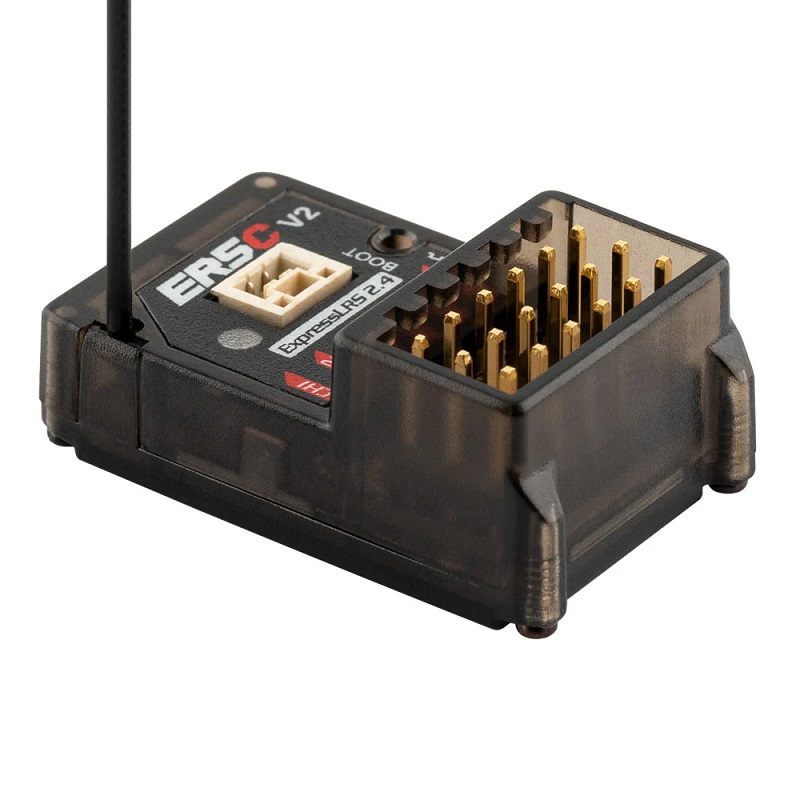

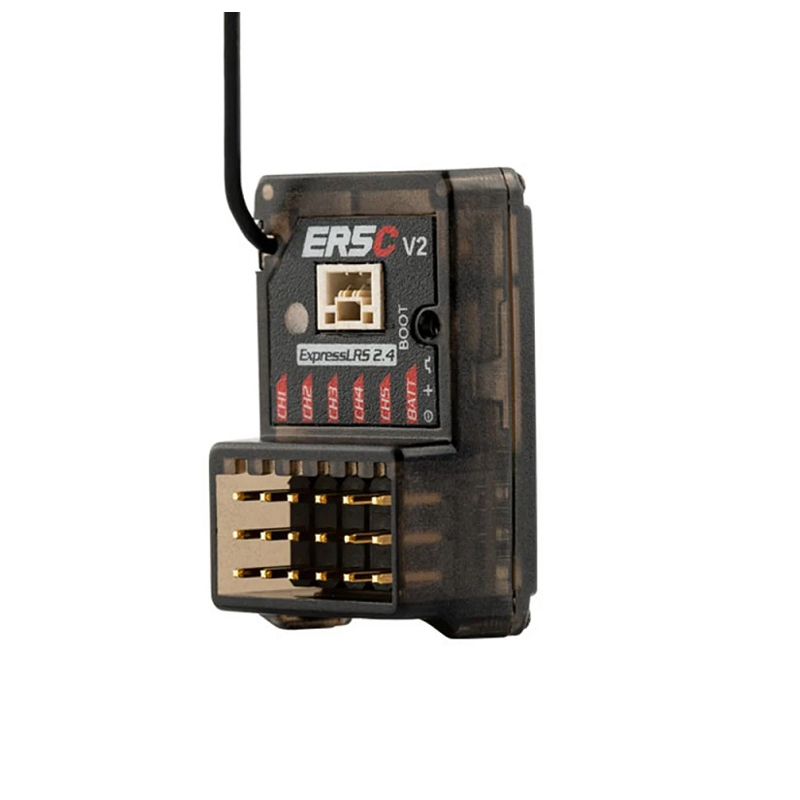

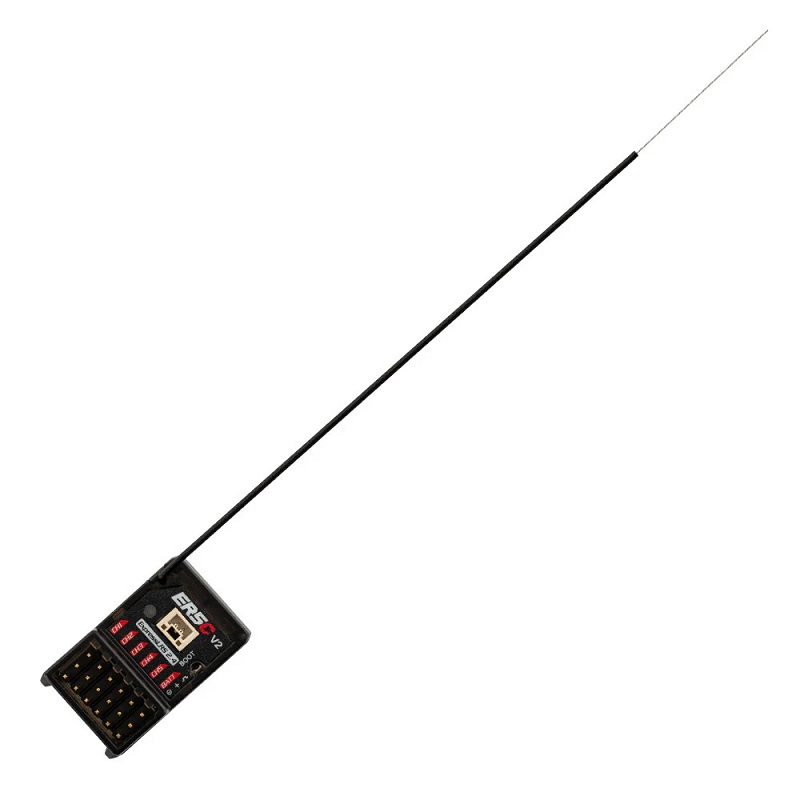

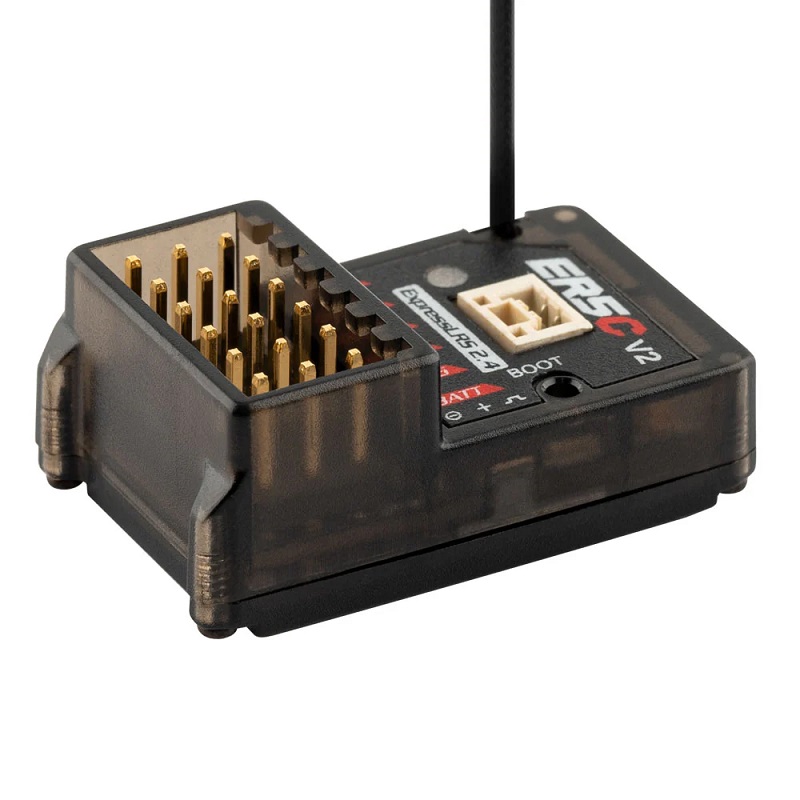

RadioMaster ER5C V2 2.4GHz ELRS PWM Receiver
The RadioMaster ER5C V2 is a compact 2.4GHz ExpressLRS PWM receiver delivering 5 servo channels with integrated voltage telemetry, designed for surface and marine RC applications requiring long-range, low-latency control.
Features
- ExpressLRS 2.4GHz protocol for ultra-long range and ultra-fast response.
- 5-channel PWM output for direct servo and ESC control.
- Integrated TCXO ensures stable frequency and reliable performance across temperature variations.
- Automatic voltage telemetry detection for receiver BEC or external battery packs.
- Supports Wi-Fi-based firmware updates and WEBUI configuration for easy setup.
Out of stock
The ER5C V2 receiver leverages the ExpressLRS open-source protocol to provide a robust link with industry-leading low latency and extended range, making it ideal for demanding surface and marine RC models. Its optimized PCB design and high-sensitivity antenna ensure a stable connection even in challenging RF environments.

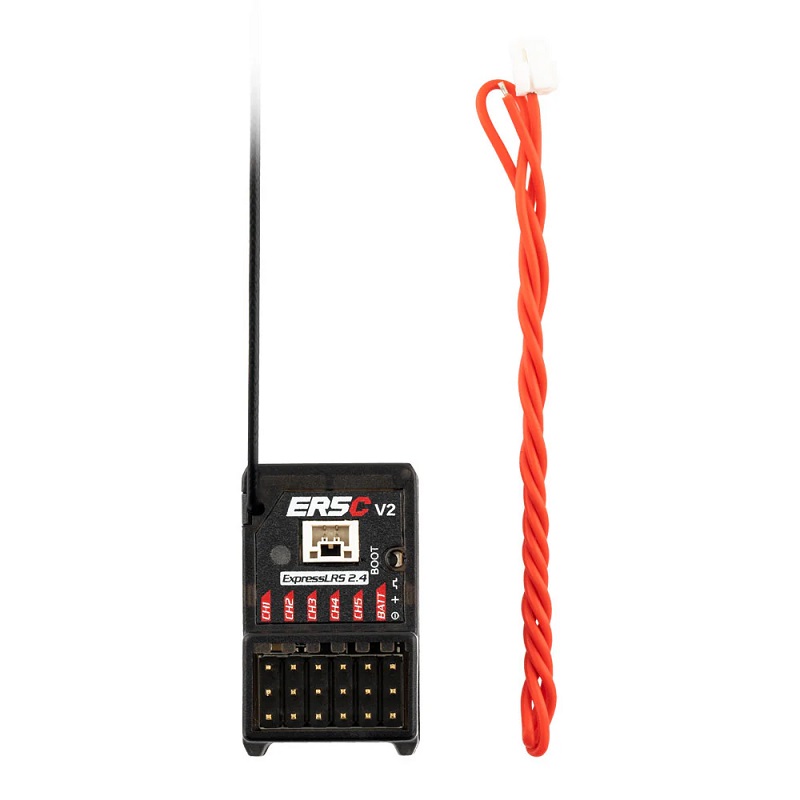

Built-in telemetry automatically switches between monitoring the receiver’s BEC voltage or an external battery pack via the included telemetry wire, providing critical power system data back to the transmitter. The compact form factor and lightweight construction facilitate easy installation in tight spaces within cars, boats, and other vehicles.
Additional Information
| Weight | 0.0057 kg |
|---|---|
| Dimensions | 3 × 1.85 × 1.3 cm |
