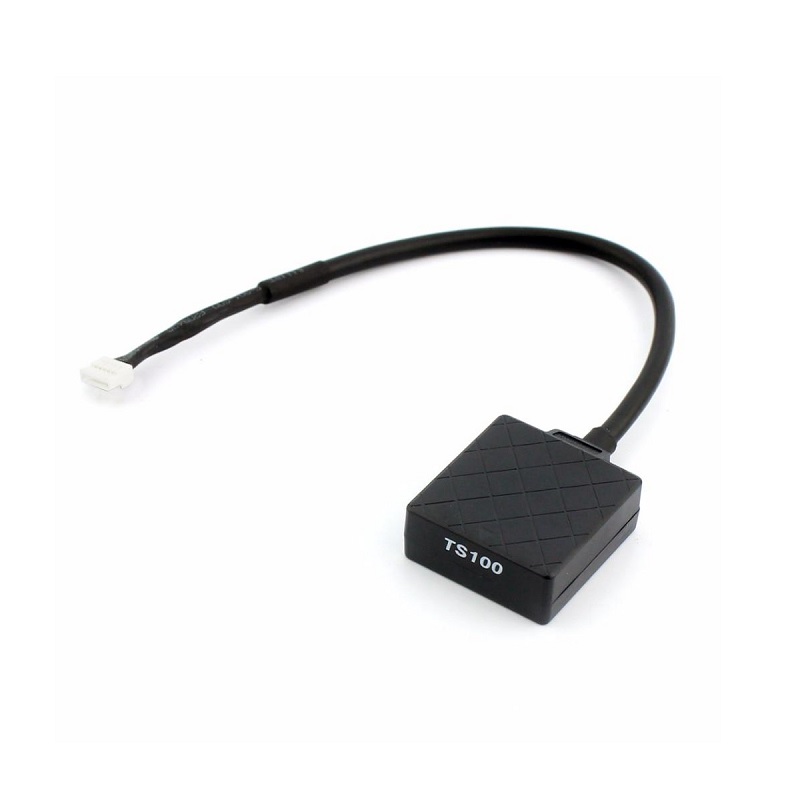

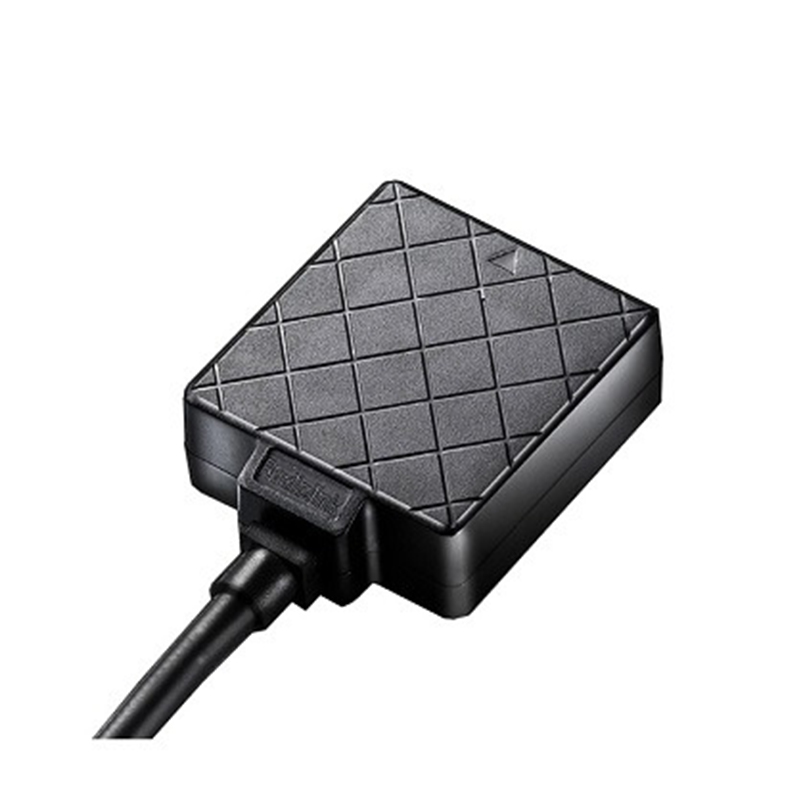

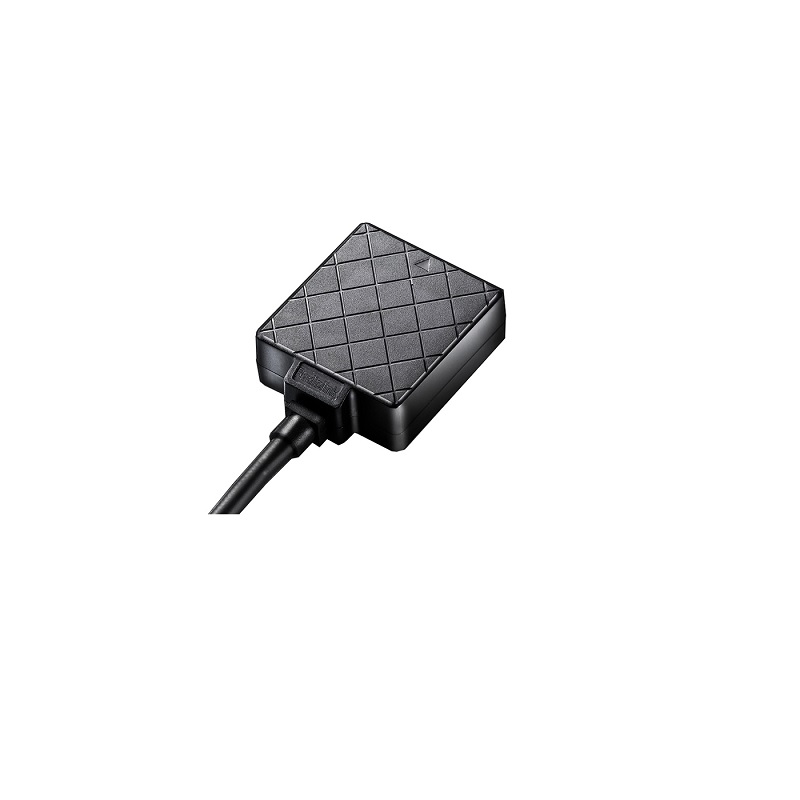

RadioLink TS100 V2.0 Mini GPS Module
The RadioLink TS100 V2.0 Mini GPS Module delivers 50-centimeter positional accuracy with concurrent GNSS, making it an ideal choice for mini PIX flight controllers. It ensures reliable and precise navigation for compact UAVs with a rapid 10Hz update rate.
Features
- Achieves 50-centimeter positional accuracy with advanced concurrent GNSS.
- Integrates u-blox UBX-M8030(M8) 72-channel GPS decoder chip for superior signal processing.
- Supports concurrent reception of GPS/QZSS, GLONASS, BeiDou, and SBAS satellite systems.
- Features a QMC5883L geomagnetic sensor, sharing technology with Honeywell HMC5983.
- Provides rapid time to first fix: 26s cold start, 1s hot start.
Out of stock
The RadioLink TS100 V2.0 Mini GPS Module is engineered for high-precision navigation in compact UAV systems, particularly when paired with mini PIX flight controllers. This module delivers an impressive 50-centimeter positional accuracy through its concurrent GNSS capabilities, making it suitable for applications requiring enhanced location precision.
Utilizing the advanced u-blox UBX-M8030(M8) 72-channel GPS decoder chip and a PRC-LNA low-loss circuit design, the TS100 V2.0 significantly enhances weak signal capture and effectively suppresses input interference. Its robust reception capabilities include GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1, and SBAS, ensuring rapid satellite acquisition and reliable station-keeping even in challenging environments.
Further bolstering its performance, the module integrates a QMC5883L geomagnetic sensor, which employs similar technology to the Honeywell HMC5983, providing accurate heading data. With a high-gain 2.5dBi ceramic antenna and double SAWF filters from Murata, the TS100 V2.0 delivers consistent, high-fidelity data critical for stable flight and precise autonomous operations.
