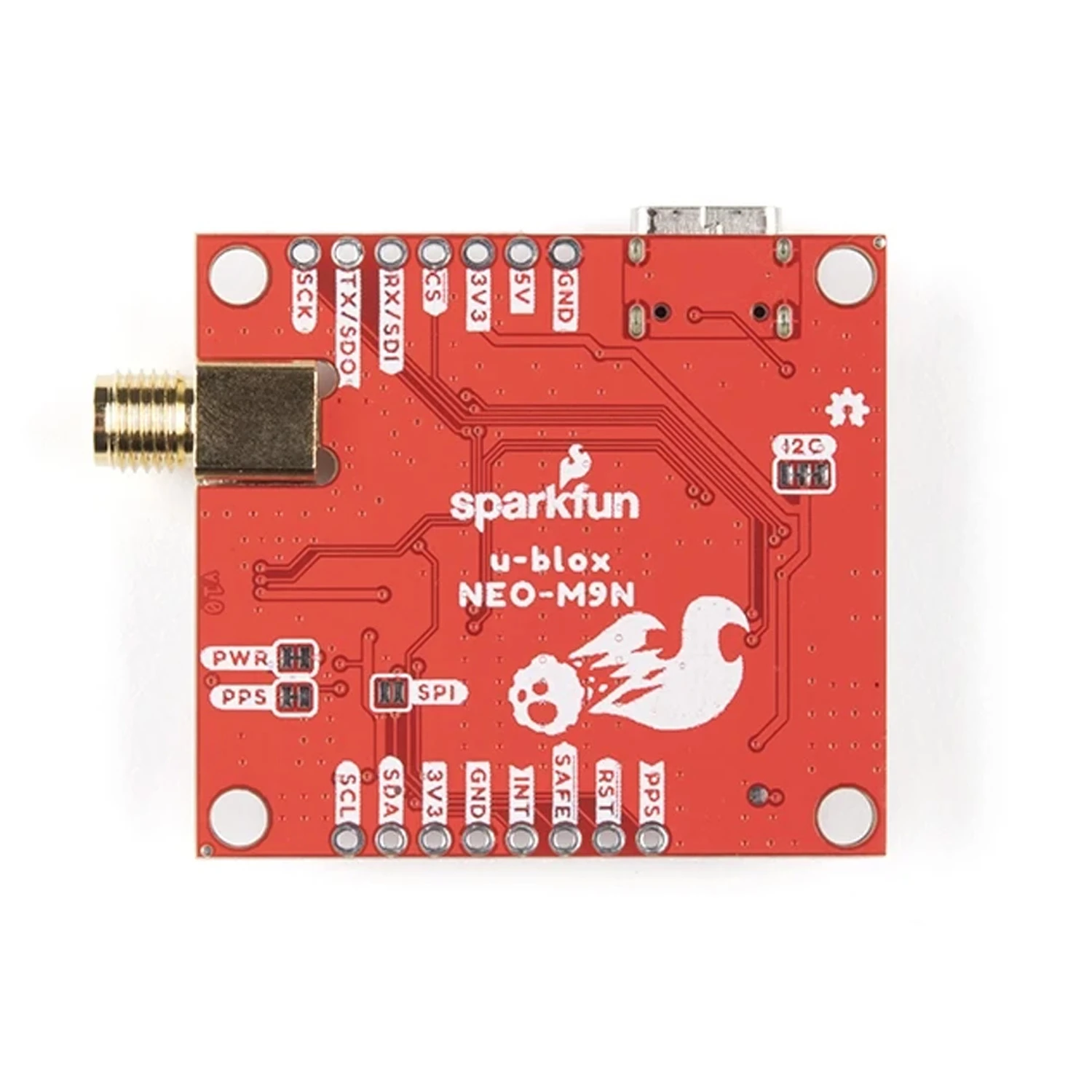

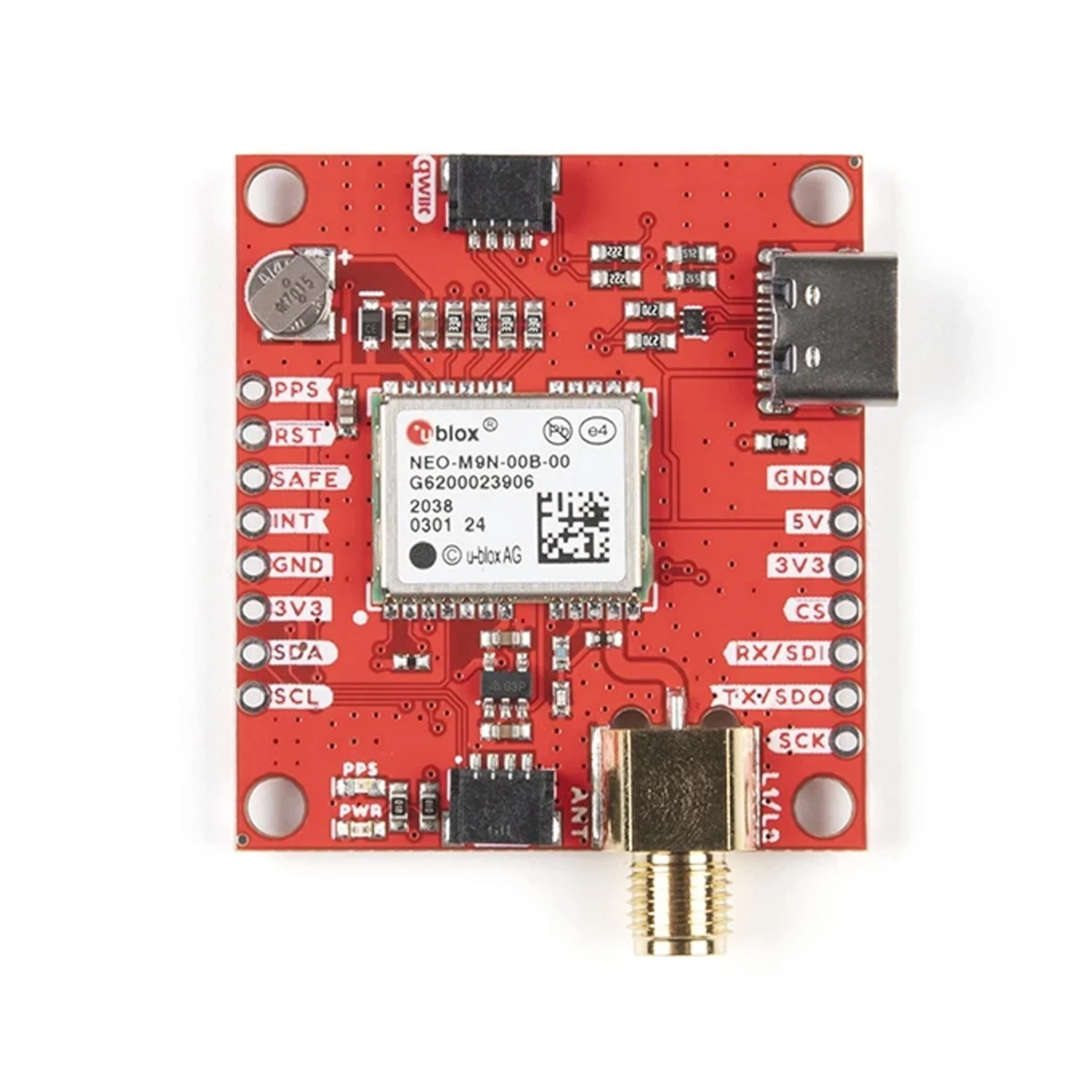

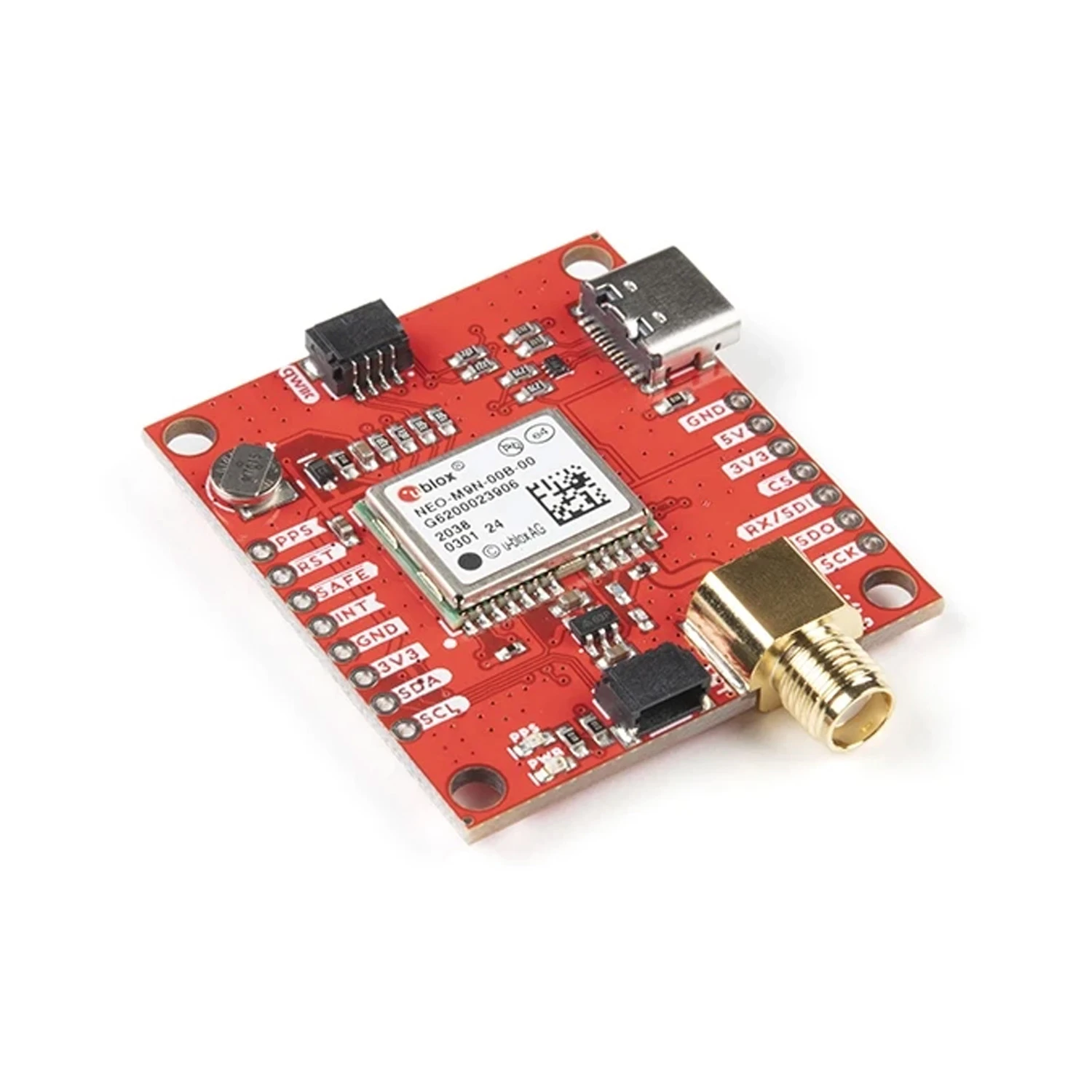

SparkFun GPS Breakout - NEO-M9N (Qwiic) w/ SMA Antenna
The SparkFun GPS Breakout featuring the u-blox NEO-M9N receiver is a high-performance multi-constellation GNSS board designed for fast and accurate positioning. With Qwiic and I2C connectivity, it offers seamless integration for applications requiring precise navigation and locational data.
Features
- Features the 92-channel u-blox NEO-M9N GNSS receiver for superior performance.
- Concurrent reception of GPS, GLONASS, Galileo, and BeiDou for enhanced satellite availability.
- Delivers approximately 1.5m horizontal positioning accuracy and up to 25Hz update rates.
- Equipped with Qwiic and I2C interfaces for easy connection to various microcontrollers.
- Includes an SMA connector for robust external GNSS antenna integration and a backup battery for fast hot starts.
Out of stock
The SparkFun GPS Breakout with the u-blox NEO-M9N module provides a robust solution for applications demanding high-accuracy and reliable positioning. This advanced 92-channel GNSS receiver can track multiple satellite constellations simultaneously, including GPS, GLONASS, Galileo, and BeiDou, significantly improving satellite signal availability and integrity in challenging environments. Pilots and developers can expect consistent 1.5-meter horizontal accuracy, essential for critical navigation tasks.
Designed for flexibility, the module supports a maximum update rate of 25Hz, crucial for dynamic platforms like FPV drones and autonomous vehicles. Its comprehensive feature set includes spoofing detection, geofencing, and odometer functions, enhancing its utility beyond basic navigation. Integration is streamlined through both Qwiic and I2C interfaces, allowing for rapid prototyping and deployment with various flight controllers and embedded systems. An onboard rechargeable battery ensures faster hot starts by retaining crucial satellite data, minimizing startup delays.
Additional Information
| Dimensions | 4.064 × 3.683 cm |
|---|
