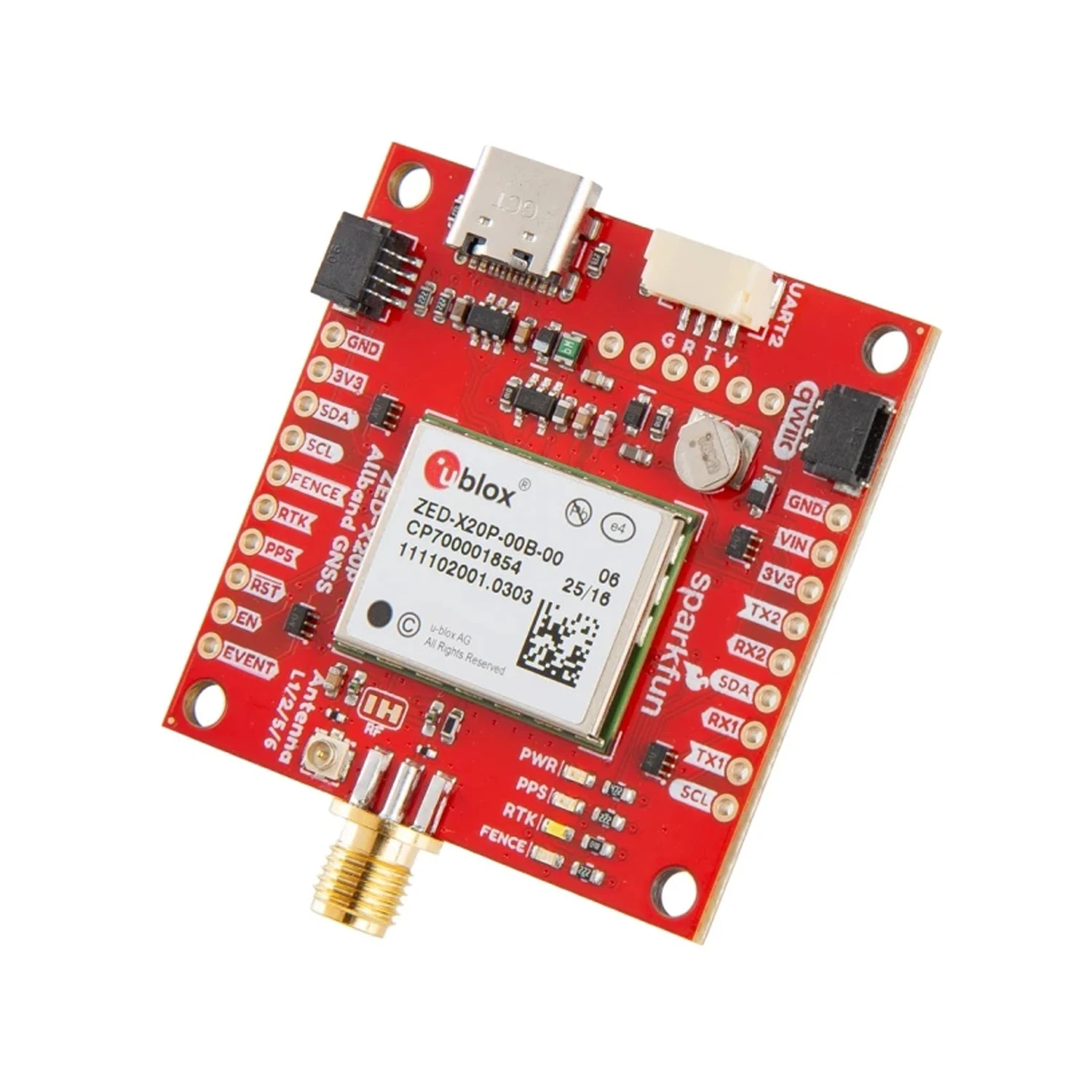

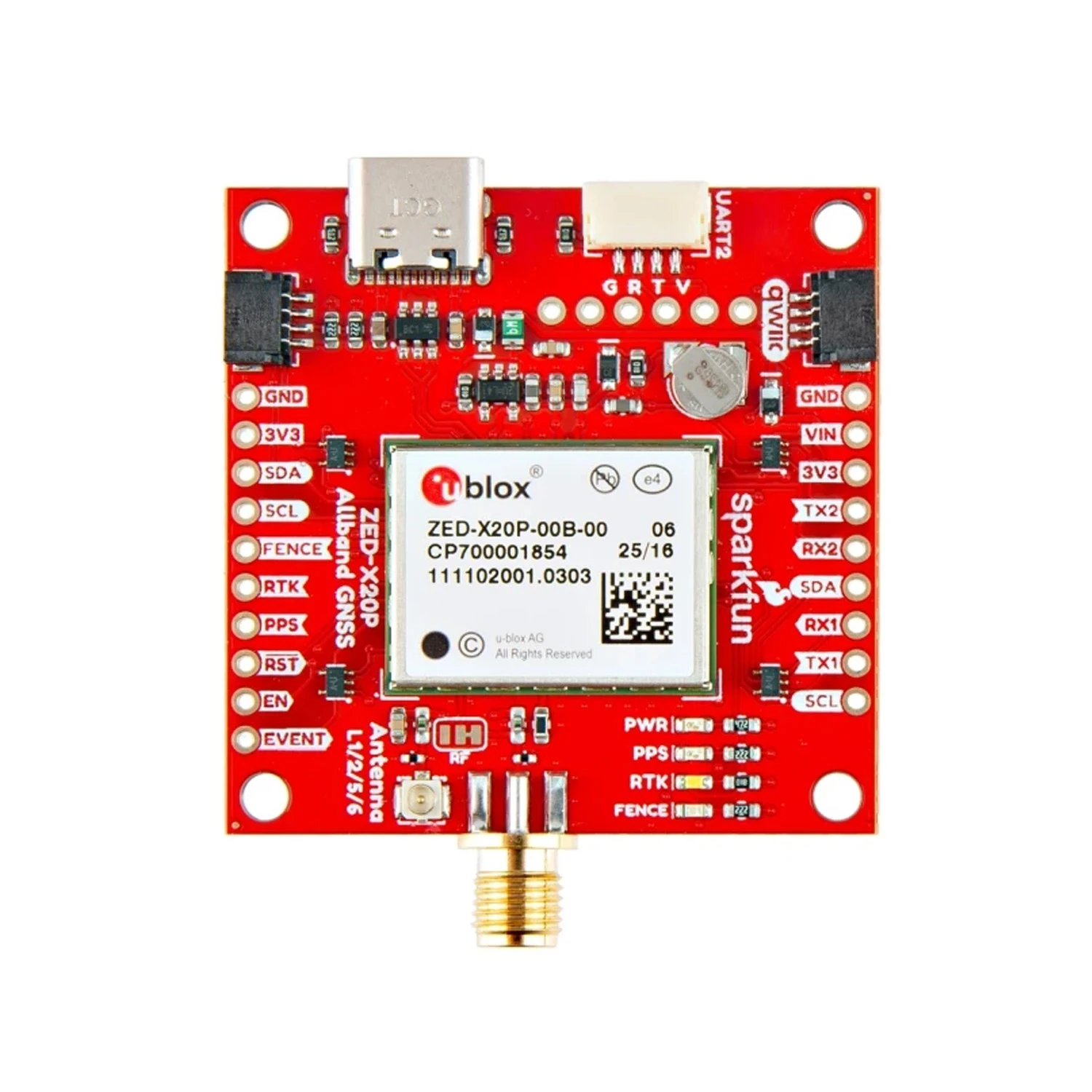

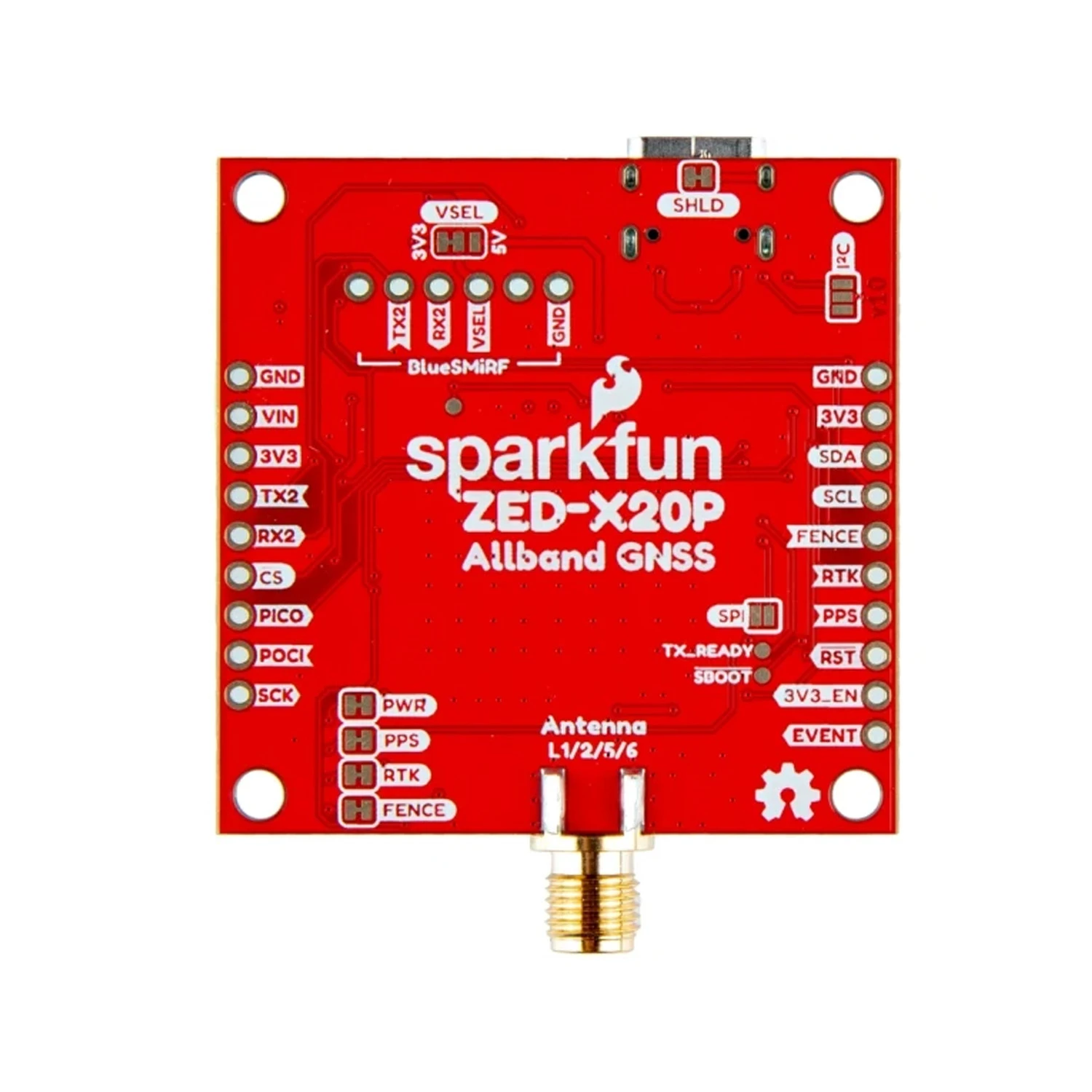

SparkFun ZED-X20P GNSS RTK Breakout (Qwiic)
The SparkFun ZED-X20P All-Band GNSS RTK Breakout utilizes the u-blox ZED-X20P receiver to deliver high-precision, centimeter-level positioning. Supporting RTK, PPP-RTK, and PPP technologies across multiple GNSS constellations, this module is ideal for demanding navigation applications in UAVs and robotics with easy Qwiic integration.
Features
- High-precision u-blox ZED-X20P all-band GNSS receiver for accurate positioning.
- Supports GPS, Galileo, BeiDou, QZSS, and NavIC constellations across multiple frequency bands.
- Integrates RTK, PPP-RTK, and PPP positioning technologies for centimeter-level accuracy.
- Versatile connectivity with USB-C, dual UART, SPI, I2C, and dual Qwiic connectors.
- Enhanced security features including jamming detection, secure boot, and Galileo OSNMA.
Out of stock
The SparkFun Allband GNSS RTK Breakout featuring the u-blox ZED-X20P offers advanced multi-band GNSS reception for critical navigation. This board supports a comprehensive array of global navigation satellite systems, including GPS, Galileo, BeiDou, QZSS, and NavIC, leveraging their signals across L-band frequencies like L1C/A, L2C, L5, E1B/C, E5a, E6, B1I, B1C, B2a, B3I, and more. Its capability to utilize RTK (Real-Time Kinematic), PPP-RTK, and PPP (Precise Point Positioning) technologies ensures highly accurate, reliable positioning essential for autonomous systems.
Designed for seamless integration into embedded systems, the breakout board provides multiple interfaces, including USB-C, two UART ports, SPI, I2C, and dual Qwiic connectors. These options facilitate straightforward connection with various microcontrollers and flight controllers, enabling rapid prototyping and deployment. Beyond its core positioning capabilities, the ZED-X20P includes vital security features such as programmable flash memory, carrier phase output, jamming detection, secure boot functionality, and support for Galileo OSNMA, safeguarding against interference and ensuring data integrity. With a compact 43.2mm x 43.2mm footprint and a wide operating temperature range of -40°C to 85°C, it’s robustly suited for industrial UAVs, robotics, autonomous vehicles, and precision guidance applications.
Additional Information
| Dimensions | 4.32 × 4.32 cm |
|---|
