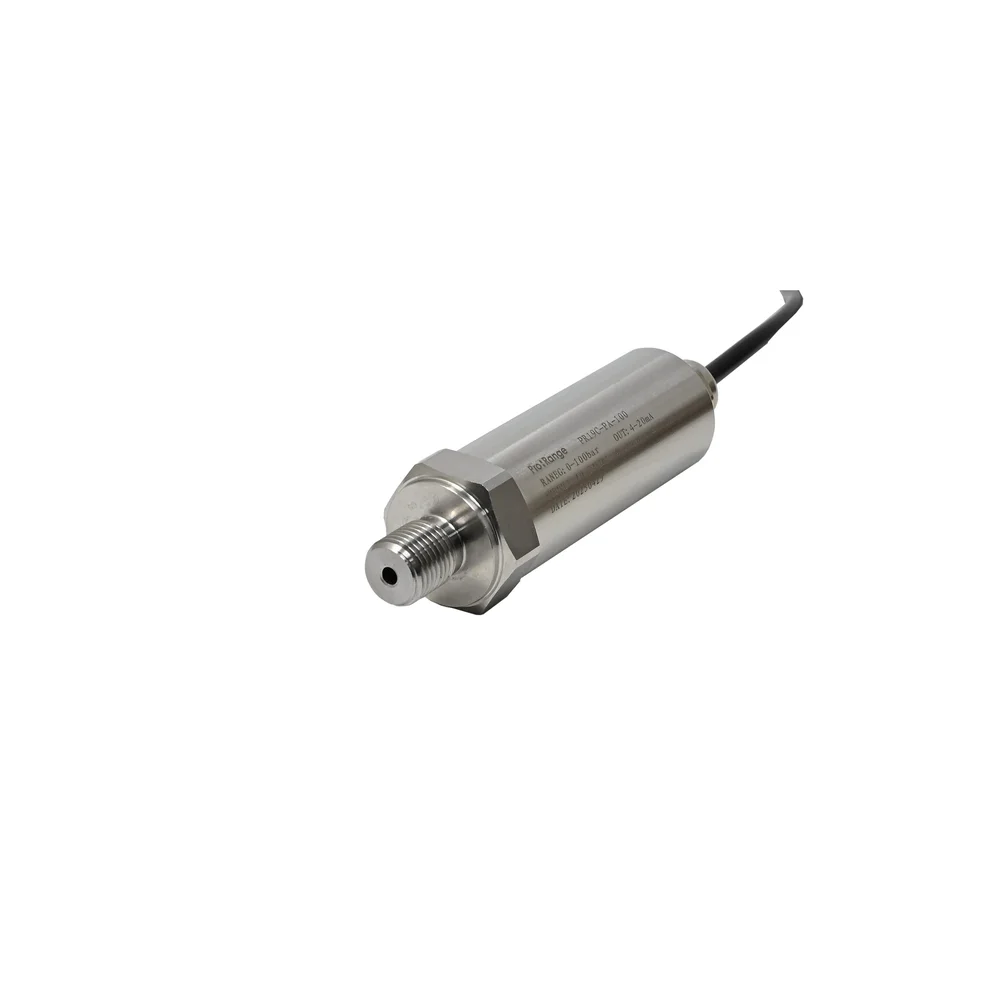

Pro-Range PR19C-PA-100 Pressure Sensor 0-10 MPa, 4-20mA Output, G1/4 Thread, 1m Cable
The Pro-Range PR19C-PA-100 is a 4-20mA output pressure transmitter designed for industrial monitoring and control systems. It provides a reliable analog signal for pressures up to 10 MPa (100 bar) and features a G1/4 threaded process connection with a 1-meter integrated cable for direct PLC or DAQ integration.
Features
- 0 to 10 MPa (0 to 100 bar) pressure measurement range.
- Standard 4-20mA two-wire analog output for robust industrial signal transmission.
- G1/4 male threaded process connection for direct pipeline or manifold mounting.

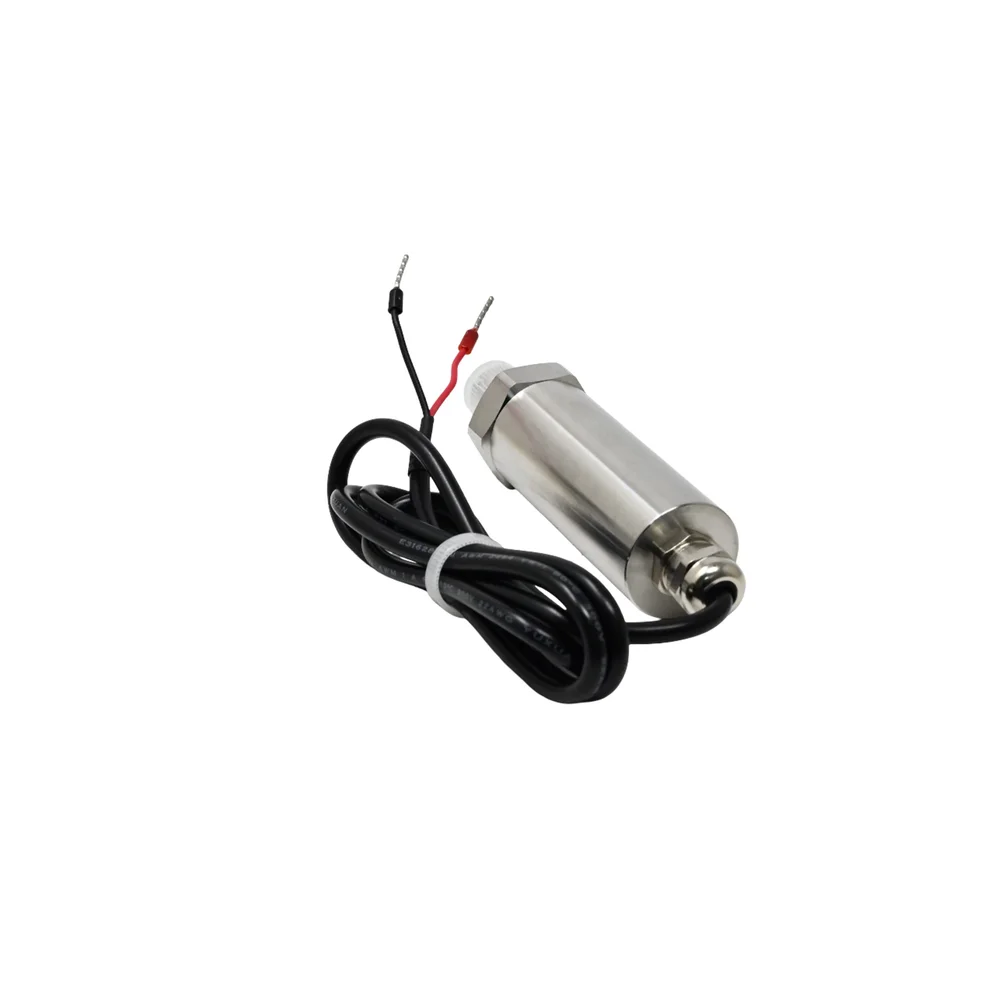

- Integrated 1-meter shielded cable for power and signal connection.
- Wide 10-32 VDC supply voltage range compatible with standard industrial power supplies.
Out of stock
The PR19C-PA-100 is a piezoresistive pressure transmitter engineered for demanding hydraulic and process automation applications. It converts applied pressure into a proportional 4-20mA current loop signal, ensuring high noise immunity and signal integrity over long cable runs in industrial environments.
Constructed with a durable stainless steel sensing element and housing, the sensor is built to withstand vibration, pressure spikes, and harsh conditions. Its compact form factor (30mm diameter) and standard G1/4 thread allow for easy integration into existing systems for monitoring pumps, compressors, and fluid power equipment.
Additional Information
| Weight | 0.26 kg |
|---|---|
| Dimensions | 15 × 6 cm |
