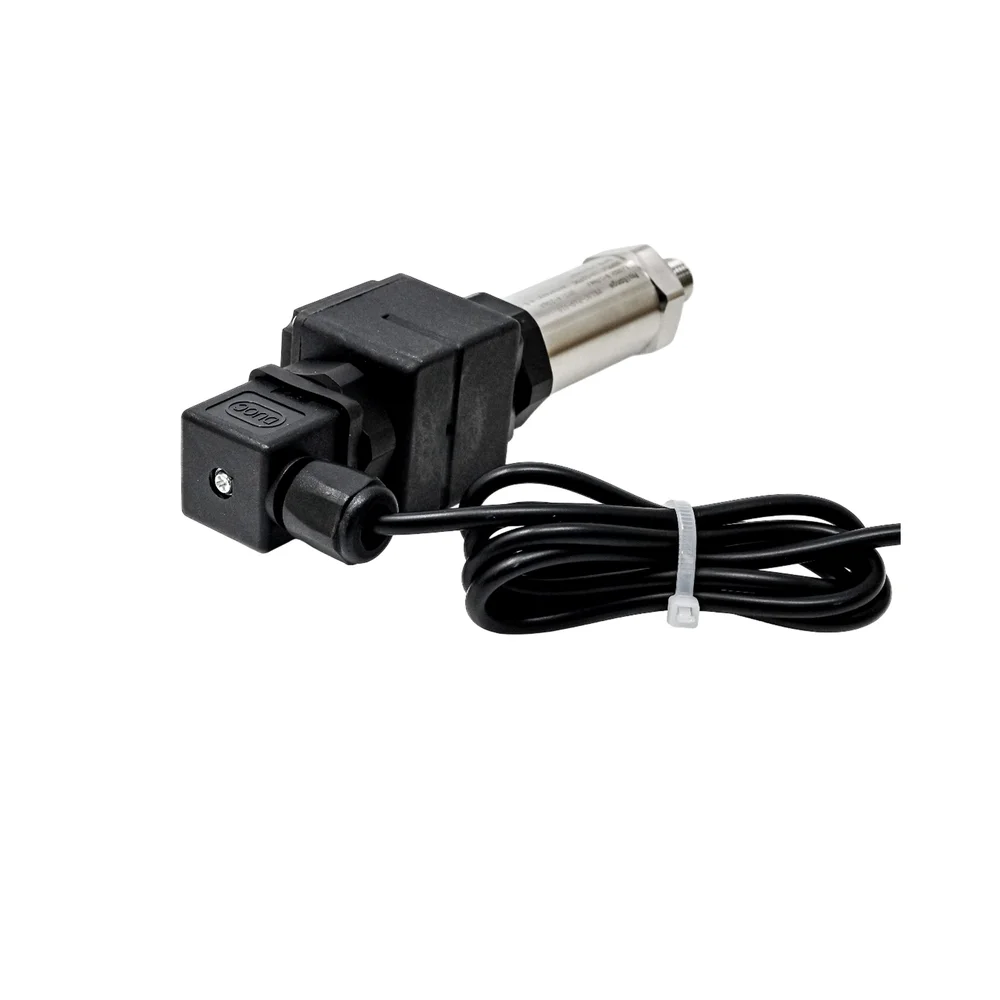

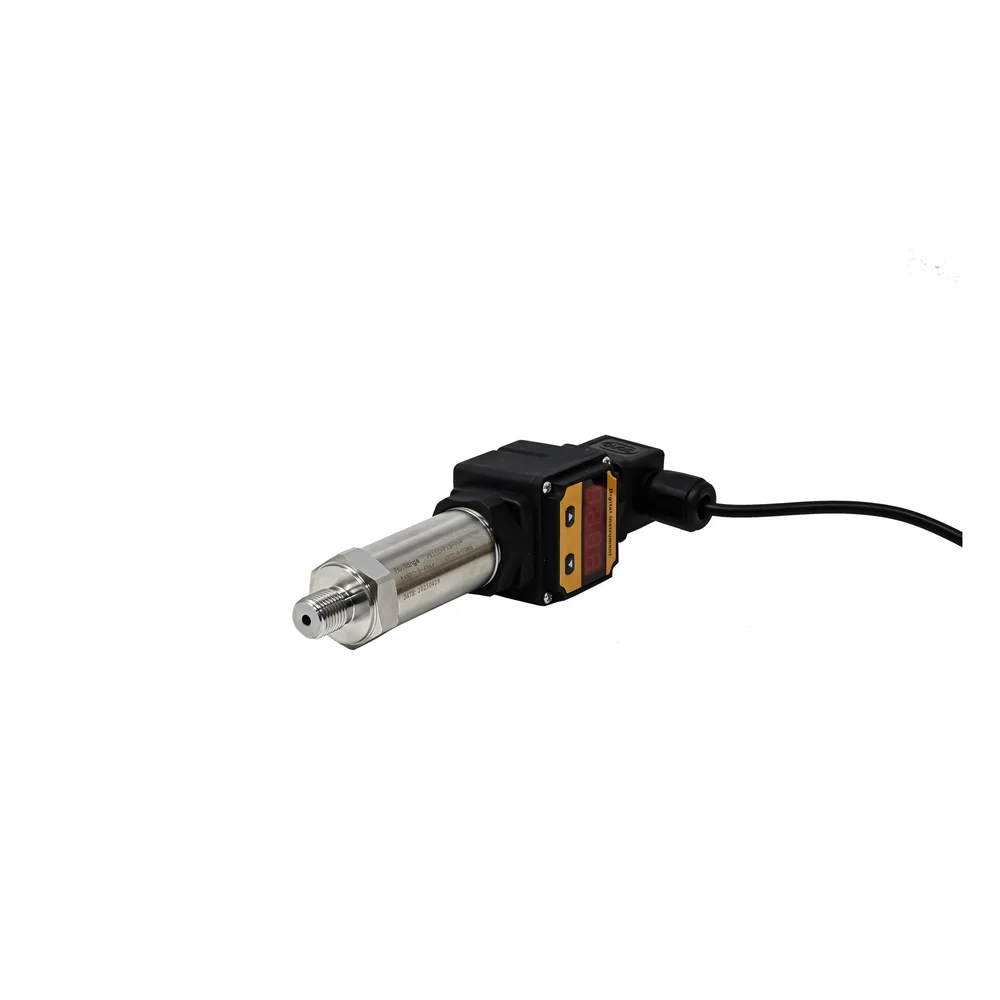

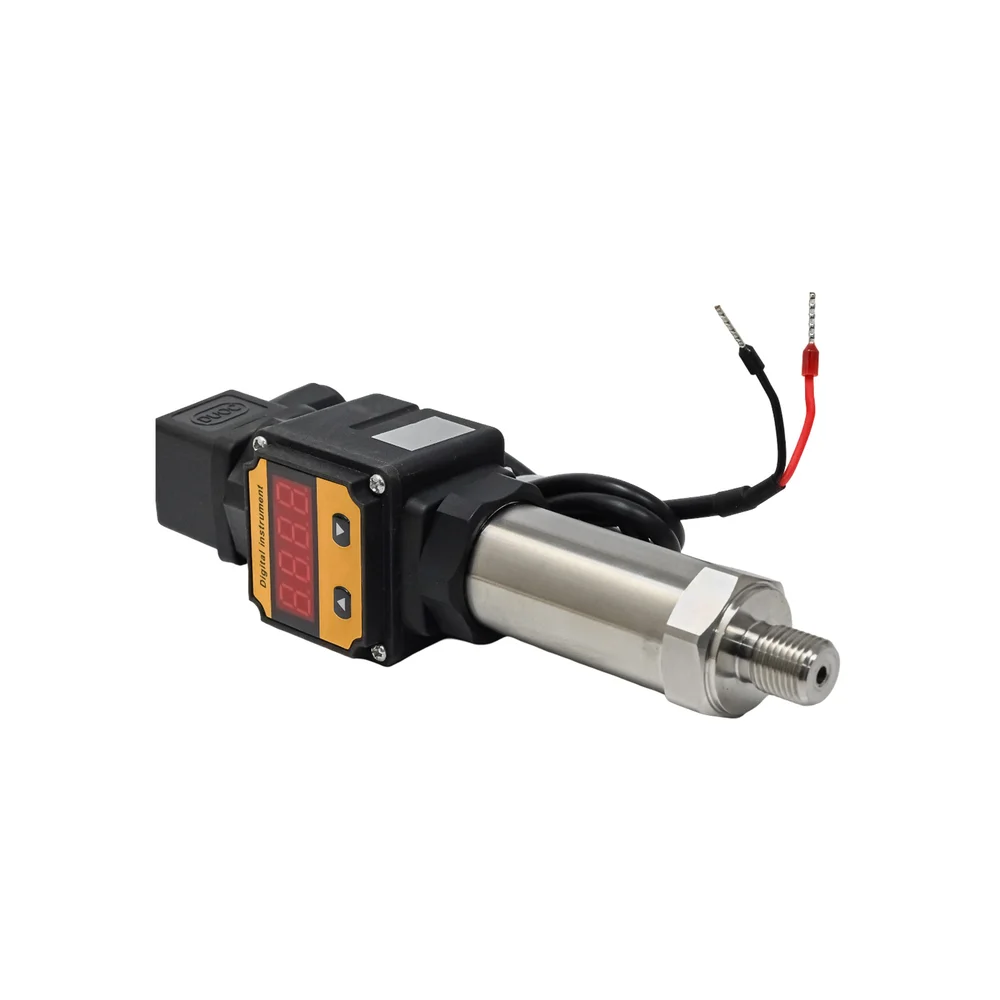

Pro-Range PR15C-PAS-004 Digital Pressure Sensor 0~0.4MPa, 4~20mA Output, G1/4 Thread, 1m Cable

This is a standard 2-wire transmitter. Connect the positive supply voltage (10-32VDC) to the red wire, and the negative/ground to the black wire. The 4-20mA signal is read as a current loop through the same two wires. A precision resistor (e.g., 250 ohms) placed in series converts the current to a measurable voltage for your PLC or data acquisition system.

Yes, the PR15C-PAS-004 is compatible with non-corrosive gases like compressed air and liquids such as water and oil, as specified by the manufacturer. Ensure the media is within the 0-0.4 MPa pressure range and does not contain particulates that could clog the G1/4 port.

While specific accuracy class data is not provided in the scraped specs, Pro-Range sensors are designed for industrial stability. Typical accuracy for this class is within ±0.5% to ±1.0% Full Scale. Response time is generally fast, suitable for dynamic system monitoring. For precise calibration data, consult the manufacturer's datasheet.

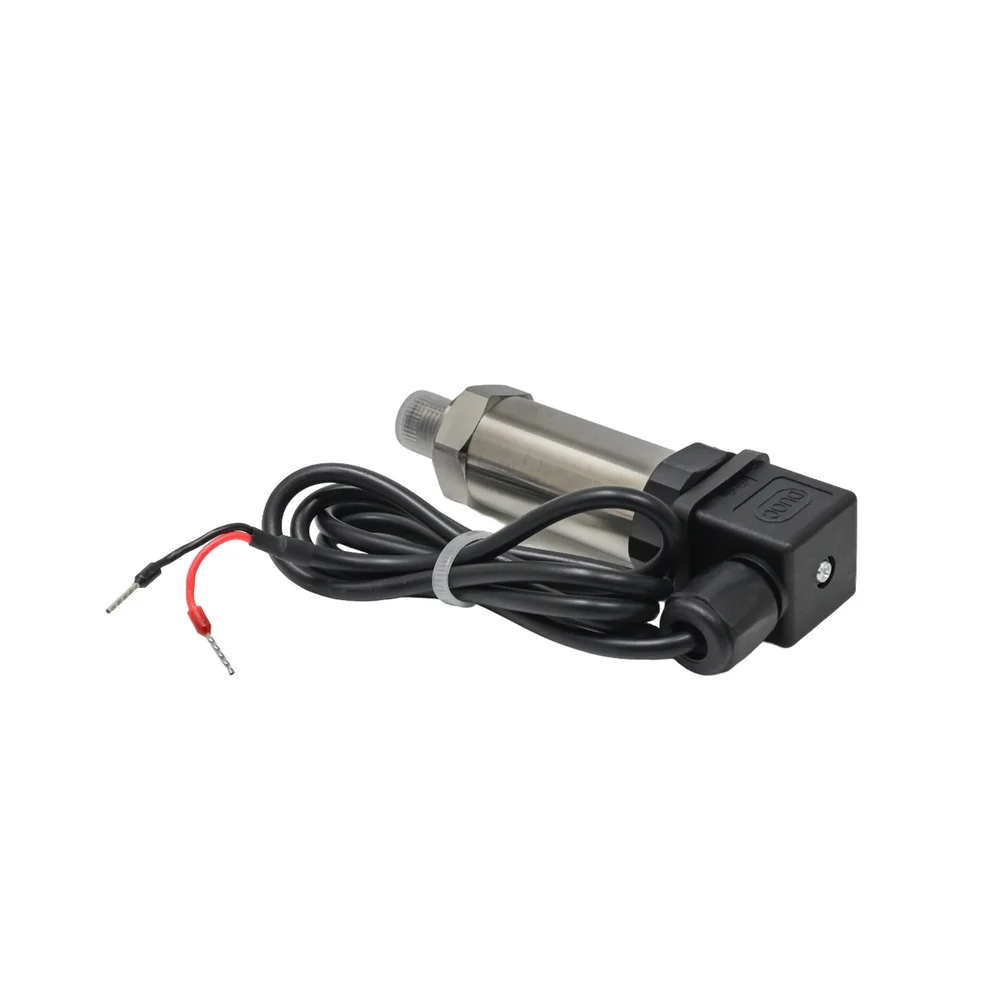

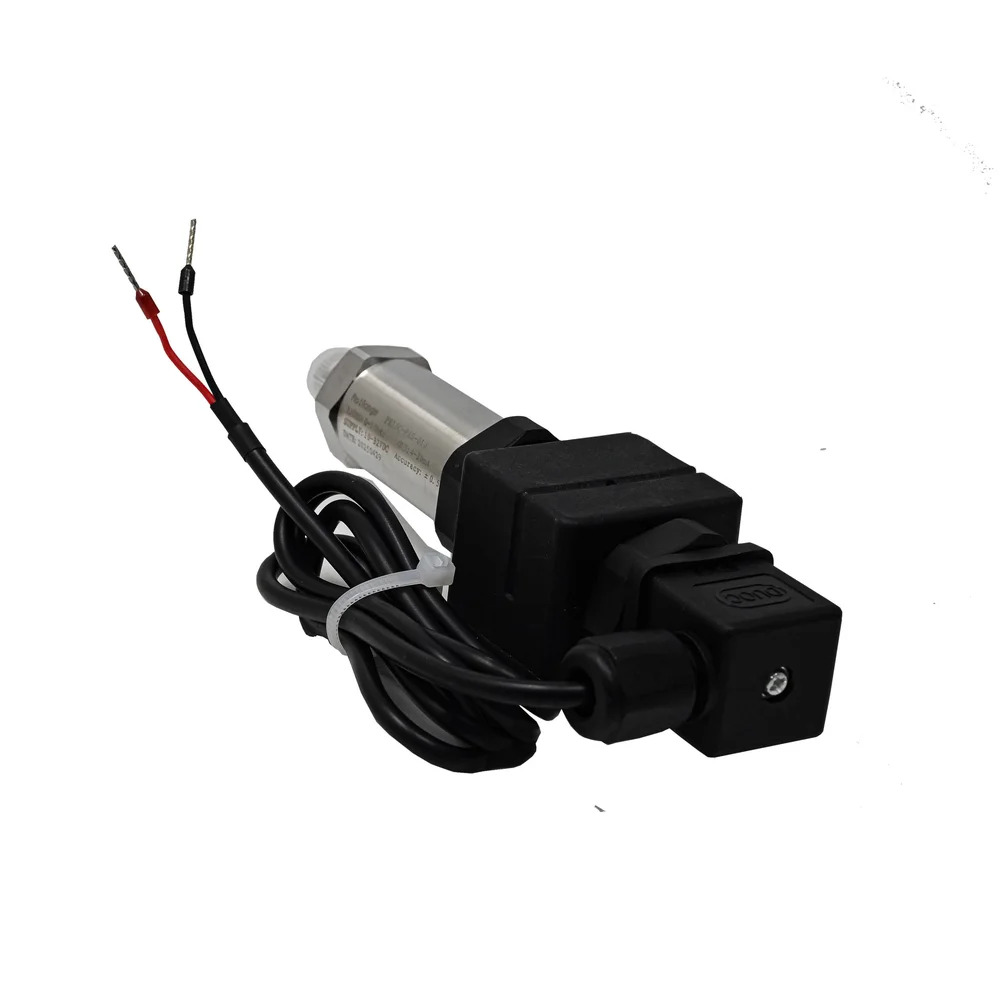

The sensor comes with a fixed, integrated 1-meter cable. The cable ends are typically stripped and tinned, ready for connection to terminal blocks or connectors. For installations requiring different cable lengths or connectors, a junction box or custom wiring may be necessary.
