Pro-Range GML668E Tension Compression Force Sensor 1kN - ±0.2% F.S, 1.5±10% mV/V Output

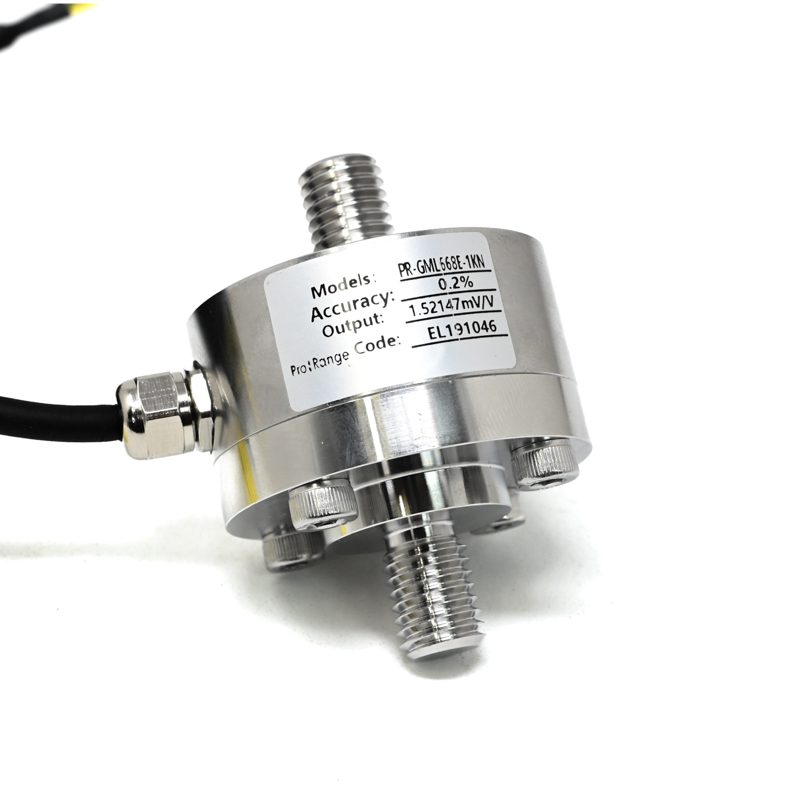

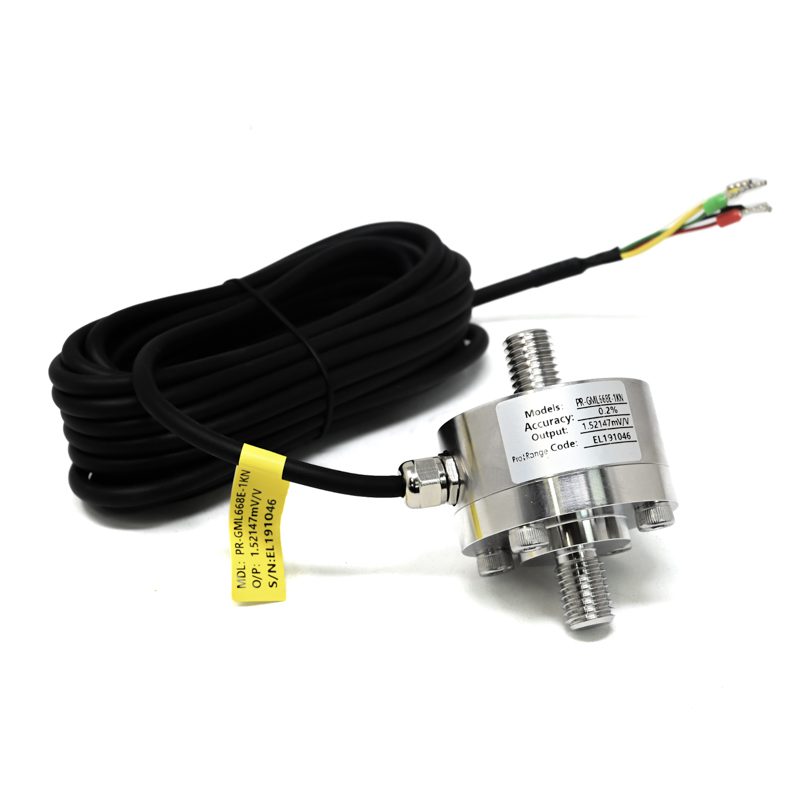

The Pro-Range GML668E is a miniature tension/compression load cell with a 1kN capacity, featuring a metal foil strain gauge for high-precision force measurement. It provides a 1.5±10% mV/V output signal compatible with standard instrumentation amplifiers and data acquisition systems for industrial automation, robotics, and test bench applications.
Features
- High-precision miniature load cell with a 1kN (1000N) rated capacity for tension and compression force measurement.
- Excellent accuracy of ±0.2% of Full Scale (F.S.) ensures reliable and repeatable readings.
- Robust IP66-rated housing provides protection against dust and water jets for demanding industrial environments.
- Wide operating temperature range from -20°C to +80°C for stable performance in varied conditions.
- Standard 1.5±10% mV/V output signal interfaces easily with common signal conditioners and PLC analog inputs.
Out of stock
The GML668E load cell utilizes advanced metal foil strain gauge technology bonded to a high-strength alloy body. When force is applied, the strain gauge experiences a minute deformation, causing a proportional change in its electrical resistance. This change is output as a low-level millivolt-per-volt (mV/V) signal, which is then amplified and converted by external instrumentation for precise force or weight measurement.
Engineered for durability, the sensor features a compact, IP66-sealed housing that protects the internal strain gauge from dust ingress and high-pressure water jets. Its wide operating temperature range and robust overload protection (150% safe, 200% ultimate) make it suitable for integration into automated production lines, material testing machines, and robotic force feedback systems where space is constrained but reliability is critical.
Additional Information
| Weight | 0.632 kg |
|---|---|
| Dimensions | 17 × 15 × 4 cm |
