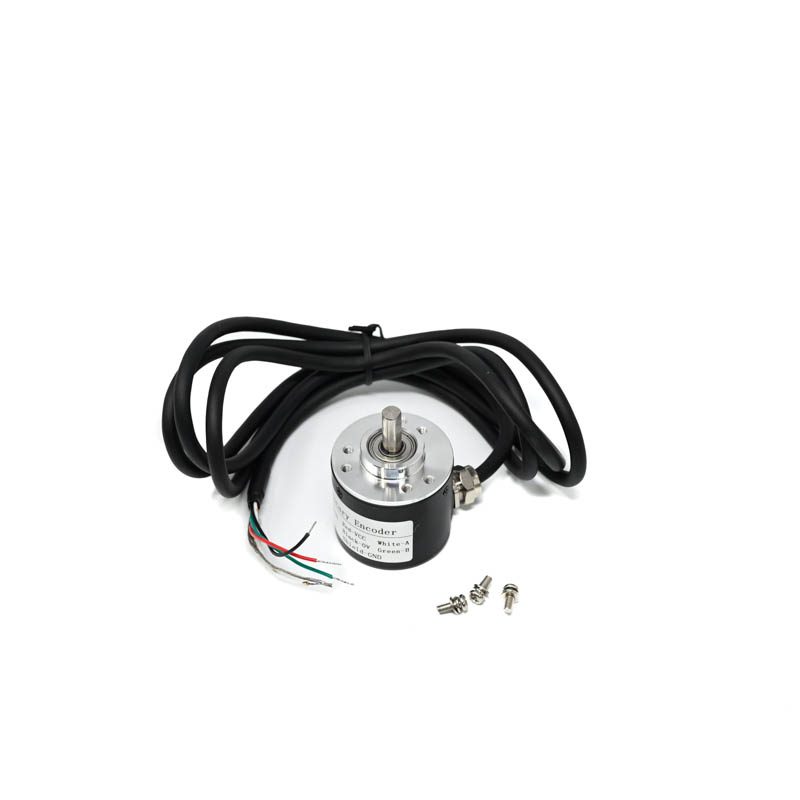

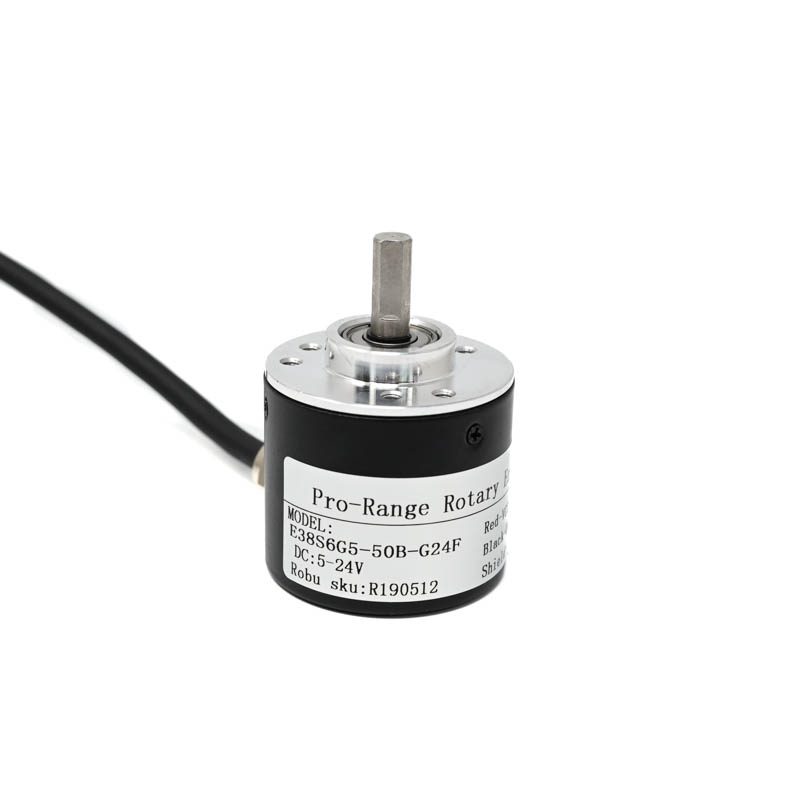

Pro-Range E38S6G5-50B-G24F Rotary Incremental Encoder - 38mm, Photoelectric, AB 2 Channels, 50 PPR
The Pro-Range E38S6G5-50B-G24F is a 38mm diameter rotary incremental encoder featuring photoelectric sensing and AB quadrature output with 50 pulses per revolution (PPR). It operates from a 5-24V DC supply, providing reliable position and speed feedback for integration with PLCs, stepper motor drivers, and industrial motion control systems.
Features
- 50 PPR resolution for precise incremental position and speed measurement.
- Photoelectric sensing technology ensures high reliability and long operational life.
- AB 2-channel quadrature output provides direction and position data.
- Wide operating voltage range of 5 to 24V DC for flexible system integration.
- Compact 38mm diameter housing with a 38mm PCB mounting hole for easy installation.
Out of stock
The E38S6G5-50B-G24F encoder utilizes a photoelectric sensing mechanism with an internal slotted disc and infrared LED-phototransistor pair to generate clean, digital quadrature signals. This design offers high noise immunity and consistent performance, making it suitable for environments with electrical interference.
Constructed for industrial durability, the encoder is housed in a robust casing capable of withstanding typical shop-floor vibrations. Its incremental operation provides real-time feedback on rotational displacement and direction, essential for closed-loop control in automation, CNC machinery, and robotic joint positioning.
Additional Information
| Weight | 0.142 kg |
|---|---|
| Dimensions | 8.5 × 8.5 × 6.5 cm |
