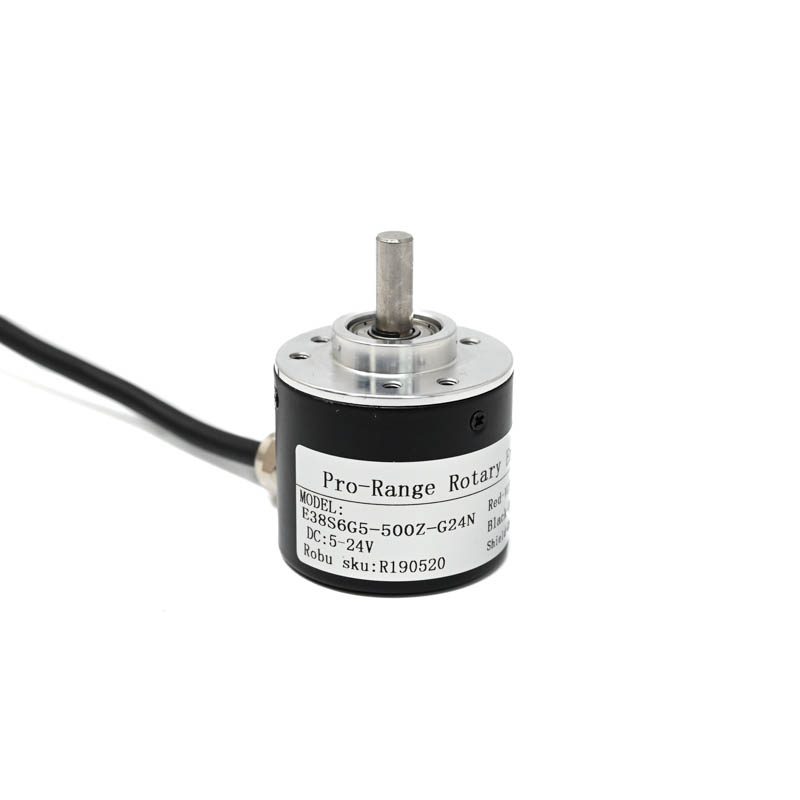

Pro-Range E38S6G5-500Z-G24N Rotary Incremental Encoder - 38mm, Photoelectric, ABZ 3 Channels, 500 PPR

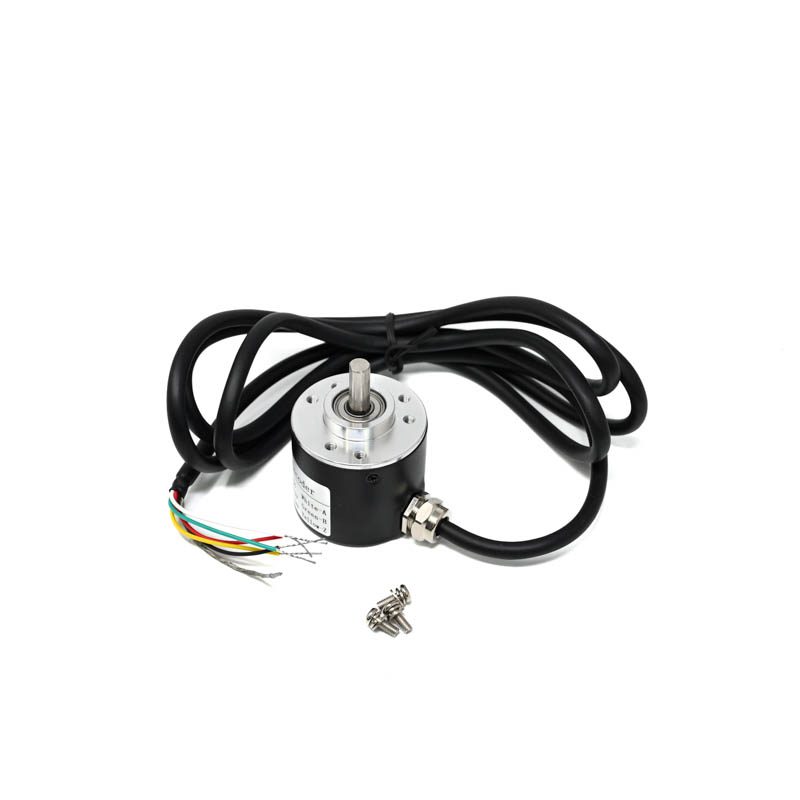

Pro-Range E38S6G5-500Z-G24N Rotary Incremental Encoder - 38mm, Photoelectric, ABZ 3 Channels, 500 PPR - Image 2
SKU: SENS-2643
📋 GST Invoice Available

Pro-Range E38S6G5-500Z-G24N Rotary Incremental Encoder - 38mm, Photoelectric, ABZ 3 Channels, 500 PPR

₹1,489.00 (Inclusive of all taxes)
Out of Stock

The Pro-Range E38S6G5-500Z-G24N is a compact 38mm photoelectric incremental encoder delivering 500 pulses per revolution (PPR) via ABZ quadrature output. Operating on a 5-24V DC supply, it provides precise position and speed feedback for integration with PLCs, stepper motor drives, and industrial automation systems.

Features

  • High-resolution 500 P/R (Pulses per Revolution) output for precise angular measurement.
  • Photoelectric (optical) sensing principle ensures reliable, contactless operation.
  • Standard ABZ quadrature output (A, B, Z index) for direction detection and reference positioning.
  • Wide operating voltage range of 5 to 24V DC for flexible system integration.
  • Compact 38mm diameter industrial-grade housing suitable for demanding environments.

Out of stock

Description

The E38S6G5-500Z-G24N encoder utilizes a photoelectric sensing mechanism, where a light source and photodetector read a patterned disc to generate precise digital pulses. This contactless design ensures long-term reliability and minimal mechanical wear, making it ideal for continuous operation in automation.

It outputs three channels: A and B phases in quadrature for determining both rotational speed and direction, and a Z-index pulse that occurs once per revolution to establish an absolute reference point. The device is engineered for industrial environments, supporting a wide input voltage and a rated rotational speed up to 6000 RPM.

Key Features

  • High-resolution 500 PPR optical encoder for accurate angular position and velocity feedback.
  • Industrial-grade construction with a robust 38mm diameter housing for durability.
  • Three-channel ABZ open-collector output compatible with standard counter and PLC input modules.
  • Wide 5-24V DC operating voltage range allows for use in 5V logic and 24V industrial control systems.
  • Contactless photoelectric sensing ensures long operational life and resistance to mechanical wear.
  • Supports high rotational speeds up to 6000 RPM for dynamic motion control applications.

Applications

  • Precision speed and position feedback for industrial servo and stepper motor drives.
  • Rotary position measurement in CNC machinery, automated conveyor systems, and robotics.
  • Integration into PLC-based automation systems for process control and monitoring.
  • Speed sensing and directional control in packaging, textile, and printing equipment.

Technical Specifications

Manufacturer Part NumberE38S6G5-500Z-G24N
TypeRotary Incremental Encoder
Sensing PrinciplePhotoelectric (Optical)
Resolution500 PPR (Pulses per Revolution)
Output Channels3 (ABZ Quadrature + Index)
Output TypeOpen Collector
Operating Voltage5 to 24 V DC
Rated Speed3000 to 6000 RPM
Diameter38 mm
Shipping Weight0.143 kg
Shipping Dimensions9 x 9 x 7 cm

Frequently Asked Questions

What is the output signal type of this encoder?

The encoder provides a three-channel open-collector output (A, B, Z). The A and B channels are in quadrature for determining direction and speed, while the Z channel is an index pulse that occurs once per revolution for establishing a reference position.

What is the compatible voltage range for this Pro-Range encoder?

The encoder operates on a wide DC voltage range from 5V to 24V. This flexibility allows it to be integrated directly into both low-voltage microcontroller systems (like Arduino at 5V) and standard 24V industrial PLC and control cabinet environments.

How do I interface this encoder with an Arduino or PLC?

Connect the A and B output lines to digital interrupt or counter pins on your microcontroller (e.g., Arduino). The open-collector outputs typically require pull-up resistors to your logic voltage (5V or 3.3V). For PLCs, connect the outputs to high-speed counter input modules compatible with 5-24V signals.

What does '500 PPR' mean for this encoder?

PPR stands for Pulses per Revolution. A 500 PPR encoder generates 500 pulses on the A (or B) channel for one full 360-degree rotation of the shaft. Using quadrature decoding on both A and B channels, you can achieve a higher effective resolution (e.g., 2000 counts per revolution) for more precise position tracking.

Package Includes

  • 1 x Pro-Range E38S6G5-500Z-G24N Rotary Incremental Encoder

Additional Information

Weight 0.143 kg
Dimensions 9 × 9 × 7 cm
