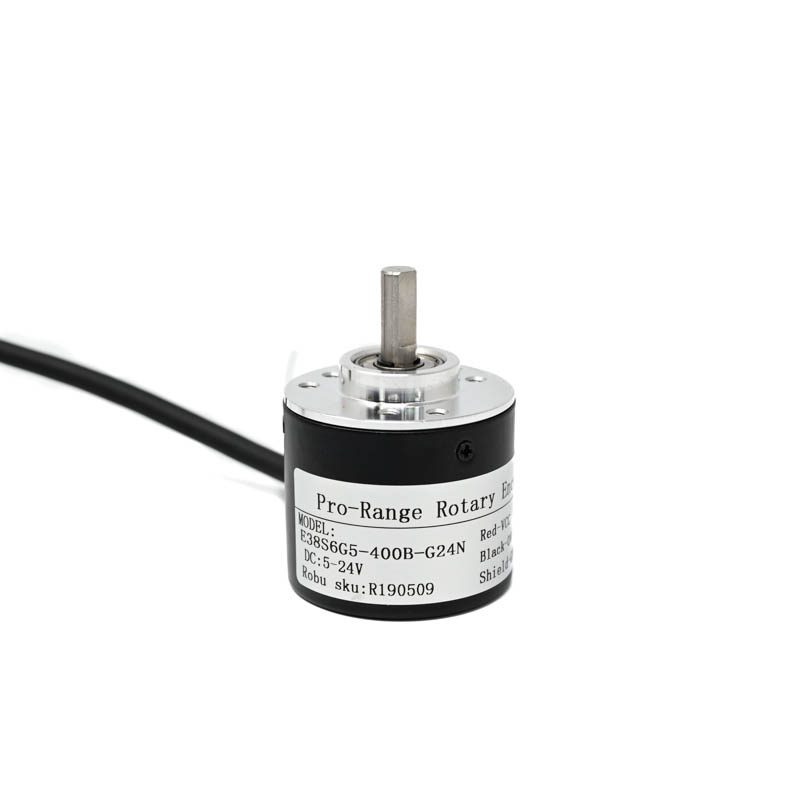

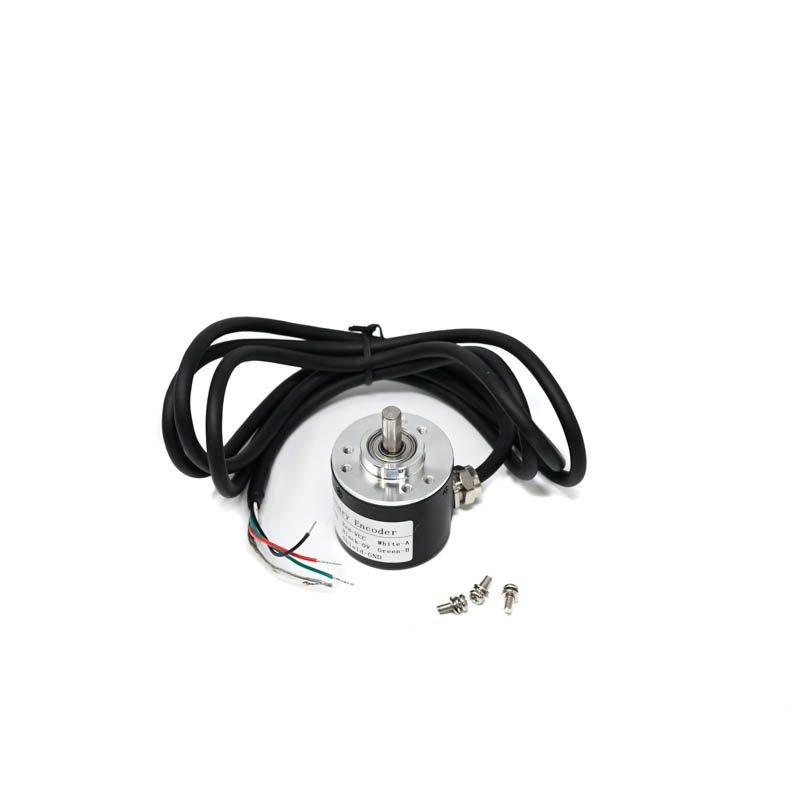

Pro-Range E38S6G5-400B-G24N Rotary Incremental Encoder - 38mm Diameter, Photoelectric, AB 2-Channel, 400 PPR
The Pro-Range E38S6G5-400B-G24N is a 38mm diameter rotary incremental encoder delivering 400 pulses per revolution (PPR) via photoelectric sensing. It provides AB quadrature output for precise direction and position feedback, compatible with industrial PLCs, motion controllers, and embedded systems like Arduino and Raspberry Pi.
Features
- High-resolution 400 PPR for accurate angular position and speed measurement.
- Compact 38mm diameter design suitable for space-constrained mechanical assemblies.
- Photoelectric sensing principle ensures reliable, contactless signal generation with minimal wear.
- AB 2-channel quadrature output provides direction sensing and enhanced resolution.
- Robust industrial-grade construction rated for up to 6000 RPM operation.
Out of stock
The E38S6G5-400B-G24N rotary encoder utilizes a photoelectric disc and sensor assembly to generate precise incremental pulses. The AB two-channel output provides standard quadrature signals (A and B phases 90 degrees out of phase), enabling systems to determine both rotational displacement and direction. This design eliminates mechanical contact wear, enhancing long-term reliability.
Built for demanding environments, the encoder features a durable housing capable of withstanding vibration and contaminants typical in industrial automation, CNC machinery, and servo motor feedback applications. Its 38mm mounting diameter and integrated PCB with standard hole pattern facilitate straightforward installation into motor shafts or rotating equipment.
Additional Information
| Weight | 0.142 kg |
|---|---|
| Dimensions | 8.5 × 8.5 × 6.5 cm |
