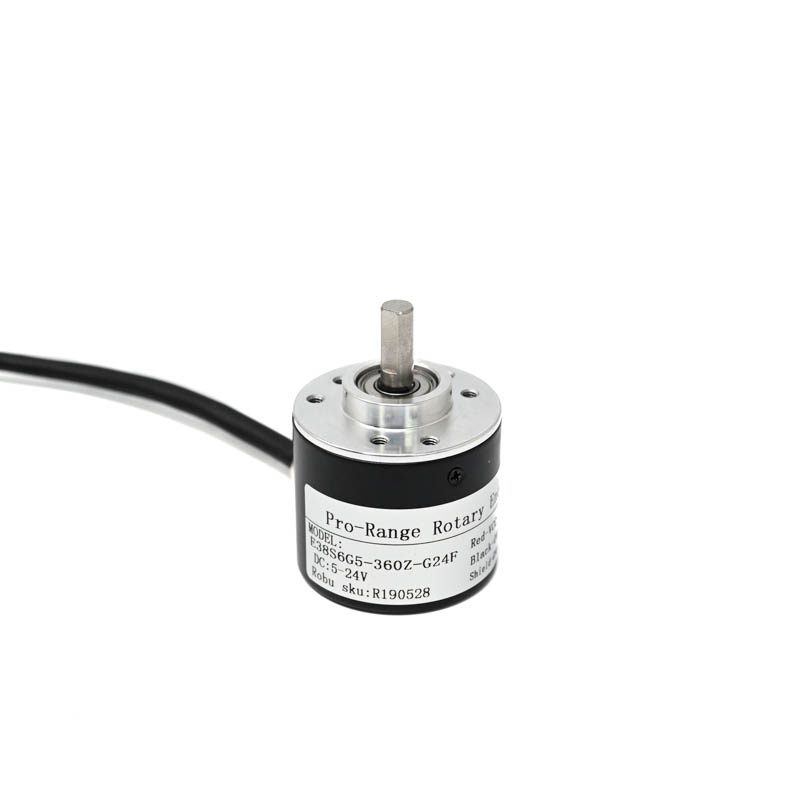

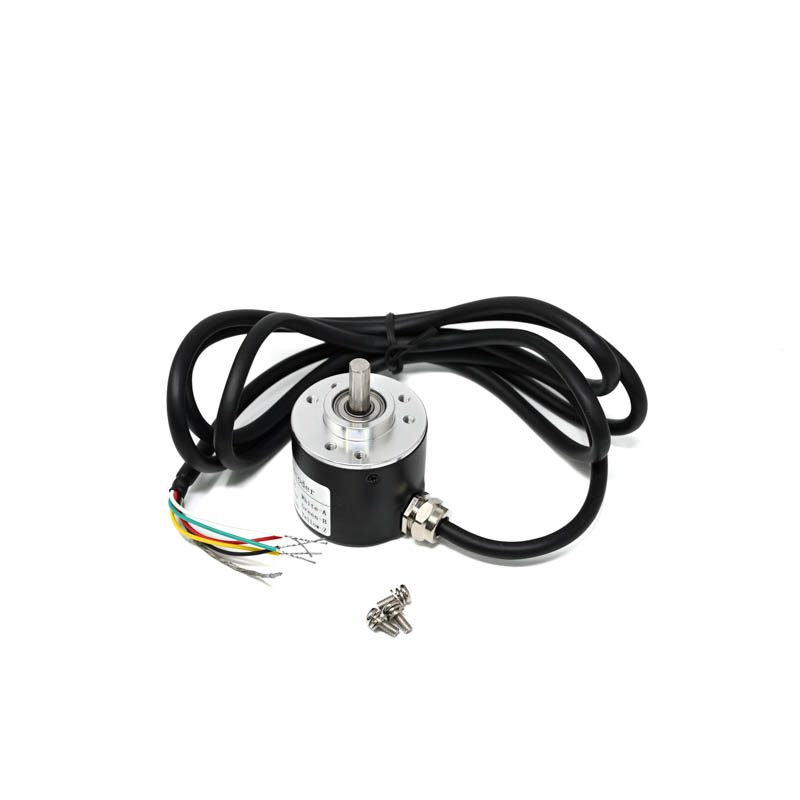

Pro-Range E38S6G5-360Z-G24F Rotary Incremental Encoder - 38mm, Photoelectric, ABZ 3 Channels, 360 PPR
The Pro-Range E38S6G5-360Z-G24F is a 38mm diameter, photoelectric incremental encoder delivering 360 PPR resolution via ABZ quadrature output. Operating from 5-24V DC, it provides precise position and speed feedback for integration with industrial PLCs, motion controllers, and robotics systems.
Features
- High-resolution 360 pulses per revolution (PPR) for precise angular measurement.
- Photoelectric sensing with ABZ three-channel quadrature and index output.
- Wide operating voltage range of 5V to 24V DC for flexible system integration.
- Compact 38mm diameter industrial-grade housing for robust performance.
- Maximum rotational speed of 6000 RPM for high-speed motion control applications.
Out of stock
The Pro-Range E38S6G5-360Z-G24F rotary incremental encoder utilizes a photoelectric sensing principle, where an internal LED light source and photodetector read a patterned code disc to generate precise digital pulses. This method ensures high accuracy and reliability, immune to magnetic interference, making it suitable for demanding industrial environments.
Its ABZ output provides A and B channels in quadrature for determining both rotational speed and direction, while the Z (index) channel delivers a single pulse per revolution for establishing an absolute reference point. The encoder’s robust construction is designed for continuous operation in automation, CNC machinery, and servo motor feedback systems.
Additional Information
| Weight | 0.142 kg |
|---|---|
| Dimensions | 8.5 × 8.5 × 6.5 cm |
