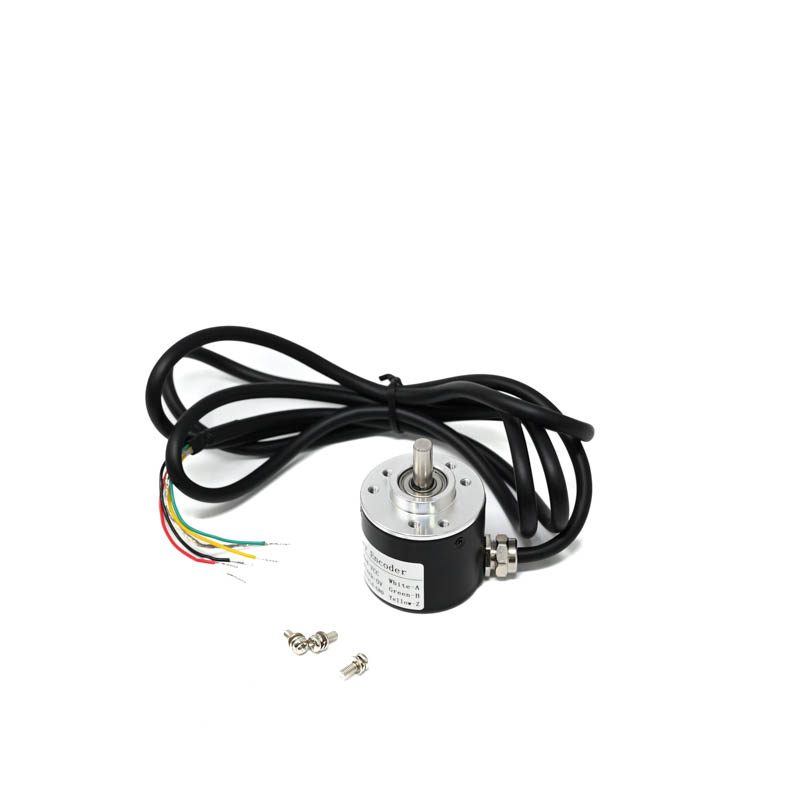

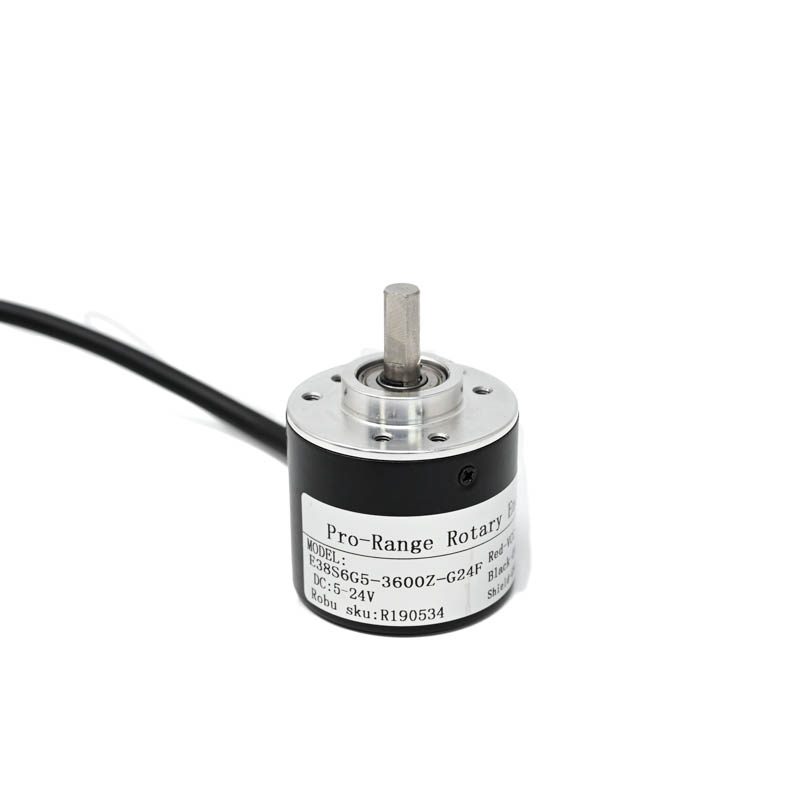

Pro-Range E38S6G5-3600Z-G24F Rotary Incremental Encoder - 38mm, Photoelectric, ABZ 3 Channels, 3600 PPR
The Pro-Range E38S6G5-3600Z-G24F is a 38mm diameter rotary incremental encoder delivering 3600 PPR resolution via photoelectric sensing. It provides ABZ 3-channel quadrature output for precise position and direction feedback, compatible with 5-24V DC systems for integration into industrial automation, robotics, and motion control platforms.
Features
- High-resolution 3600 pulses per revolution (PPR) for accurate angular position feedback.
- Compact 38mm diameter photoelectric design suitable for space-constrained installations.
- ABZ 3-channel output (A, B quadrature and Z index) for direction sensing and reference positioning.
- Wide operating voltage range from 5V to 24V DC for flexible system integration.
- Robust construction rated for demanding industrial environments with a high rotational speed of 6000 RPM.
Out of stock
The E38S6G5-3600Z-G24F encoder utilizes an infrared LED light source and a phototransistor array to detect rotational movement through a precision slotted disk. This photoelectric sensing principle ensures reliable, contactless signal generation with high immunity to electrical noise and mechanical wear. The output provides standard ABZ quadrature signals, where channels A and B are 90 degrees out of phase for direction detection, and the Z channel delivers a single pulse per revolution for homing or reference alignment.
Engineered for industrial durability, the encoder’s housing protects the internal optics from dust and ambient light interference. Its wide 5-24V DC input range allows direct compatibility with PLCs, motor drives, and microcontroller interfaces (3.3V/5V logic with appropriate pull-up resistors). The 6000 RPM maximum speed rating supports high-dynamic motion control applications in CNC machinery, servo systems, and automated guided vehicles (AGVs).
Additional Information
| Weight | 0.143 kg |
|---|---|
| Dimensions | 8.5 × 8.5 × 6.5 cm |
