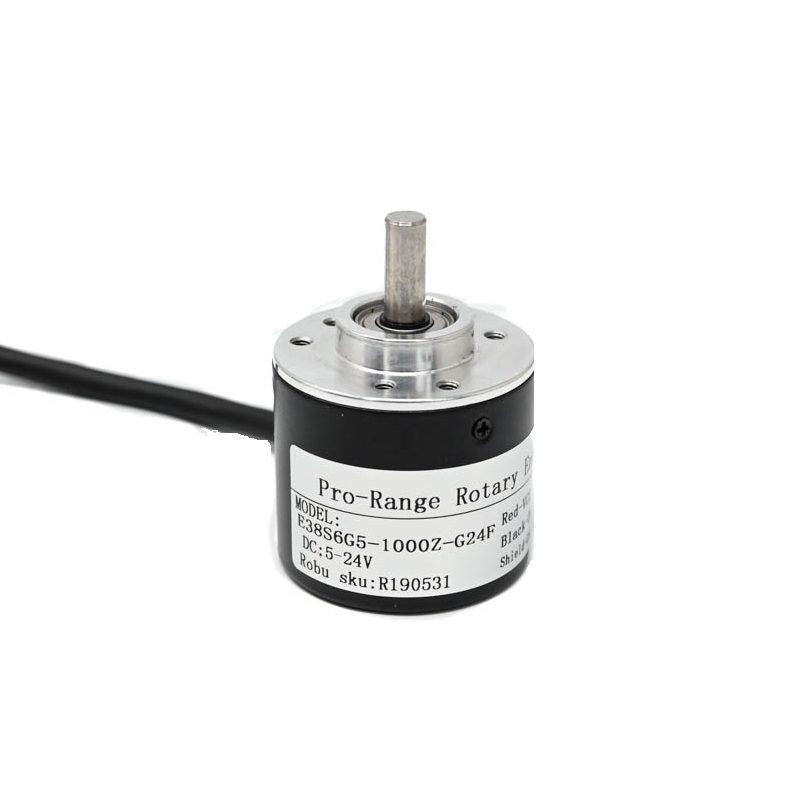

Pro-Range E38S6G5-1000Z-G24F Rotary Incremental Encoder - 38mm, Photoelectric, ABZ 3 Channels, 1000 PPR

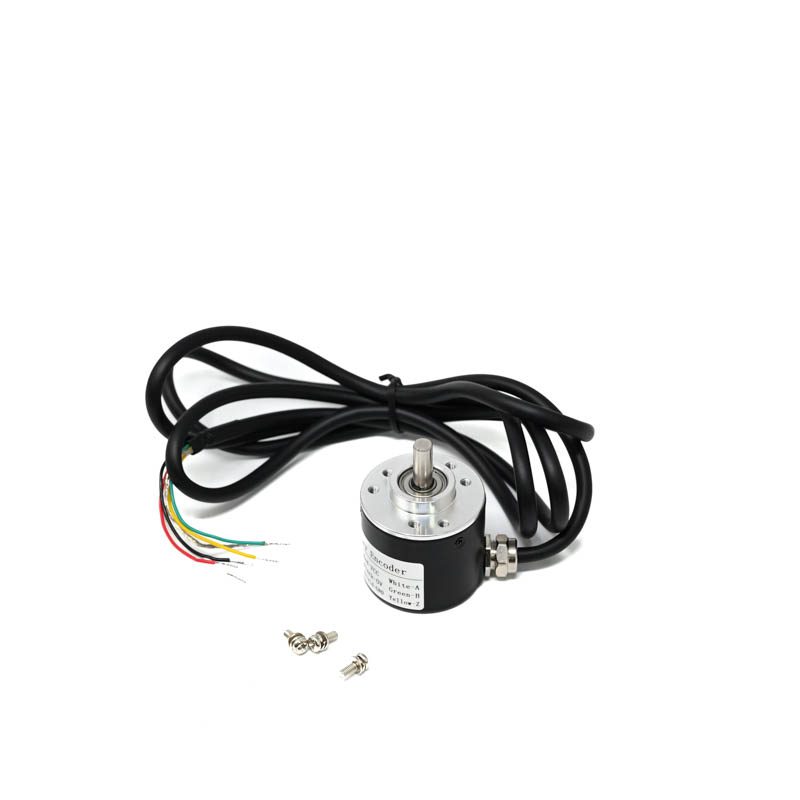

Pro-Range E38S6G5-1000Z-G24F Rotary Incremental Encoder - 38mm, Photoelectric, ABZ 3 Channels, 1000 PPR - Image 2
SKU: SENS-2659
📋 GST Invoice Available

Pro-Range E38S6G5-1000Z-G24F Rotary Incremental Encoder - 38mm, Photoelectric, ABZ 3 Channels, 1000 PPR

₹1,429.00 (Inclusive of all taxes)
Out of Stock

The Pro-Range E38S6G5-1000Z-G24F is a 38mm diameter, photoelectric rotary incremental encoder delivering 1000 PPR resolution via ABZ 3-channel output. Compatible with 5-24V DC systems, it provides precise position and direction feedback for industrial automation, robotics, and motion control applications.

Features

  • High-resolution 1000 Pulses Per Revolution (PPR) for accurate position feedback.
  • Photoelectric sensing principle ensures reliable, non-contact signal generation.
  • ABZ 3-channel output (A, B quadrature and Z index) for direction sensing and reference positioning.
  • Wide operating voltage range from 5V to 24V DC for flexible system integration.
  • Compact 38mm diameter and robust construction for demanding industrial environments.

Out of stock

Description

The Pro-Range E38S6G5-1000Z-G24F incremental encoder utilizes a photoelectric sensing mechanism, where a light source and photodetector read a patterned disc to generate precise digital pulses. This method provides high reliability and immunity to electrical noise, making it suitable for continuous operation in industrial settings.

Featuring a quadrature AB output and a zero-index Z channel, the encoder delivers both relative position data and an absolute reference point per revolution. Its wide 5-24V DC input range allows for direct compatibility with PLCs, motor drives, and microcontroller-based systems like Arduino or Raspberry Pi with appropriate interface logic.

Key Features

  • High-precision photoelectric incremental encoder with 1000 PPR resolution.
  • Operates on a wide DC voltage range from 5V to 24V for versatile power supply compatibility.
  • Outputs standard ABZ 3-channel TTL/HTL compatible signals for direction and position detection.
  • Designed for high-speed operation with a rated speed of up to 5000 RPM.
  • Durable construction with a 38mm mounting diameter for reliable performance in industrial automation and robotics.
  • Low current consumption (typically 40mA) for energy-efficient system design.
  • Compact form factor ideal for integration into space-constrained machinery and motion control assemblies.

Applications

  • Precision position feedback in CNC machinery and industrial servo motors.
  • Speed and direction monitoring in conveyor belt systems and automated guided vehicles (AGVs).
  • Angular position sensing in robotic joints and articulated arms.
  • Rotor position detection in BLDC motor control and drive systems.
  • Measurement and control systems in packaging, printing, and textile machinery.

Technical Specifications

Manufacturer Part NumberE38S6G5-1000Z-G24F
Encoder TypeRotary Incremental
Sensing PrinciplePhotoelectric
Resolution1000 PPR (Pulses Per Revolution)
Output ChannelsABZ (3 Channels)
Operating Voltage5V to 24V DC
Current Consumption40 mA (typical)
Rated Speed5000 RPM
Mounting Diameter38 mm
PCB Hole Diameter38 mm
Item TypeEncoder

Frequently Asked Questions

What is the operating voltage range for this Pro-Range encoder?

The encoder is designed to operate on a wide DC voltage range from 5V to 24V. This flexibility allows it to be integrated directly with various logic levels, including standard 5V microcontroller systems (Arduino) and higher 24V industrial PLC and motor drive interfaces without requiring an additional voltage regulator.

How do I interpret the ABZ output signals?

The A and B channels provide quadrature signals, which are two square waves 90 degrees out of phase. The phase relationship indicates the direction of rotation. The Z channel outputs a single pulse per revolution, serving as an index or reference mark for absolute position within each turn. These signals are typically TTL/HTL compatible.

What is the maximum rotational speed this encoder can handle?

The encoder is rated for a maximum operational speed of 5000 RPM. Exceeding this speed may lead to signal degradation or potential damage. Ensure your application's maximum rotational velocity stays within this specified limit for reliable performance and longevity.

Is this encoder suitable for harsh industrial environments?

Yes, its durable construction and photoelectric sensing principle make it robust for demanding settings. However, for specific environmental protection (e.g., against dust, moisture, or oil), you should consult the manufacturer's datasheet for detailed IP ratings and consider appropriate external sealing if necessary.

Package Includes

  • 1 x Pro-Range Rotary Incremental Encoder (Model: E38S6G5-1000Z-G24F)

Additional Information

Weight 0.143 kg
Dimensions 8.5 × 8.5 × 6.5 cm
