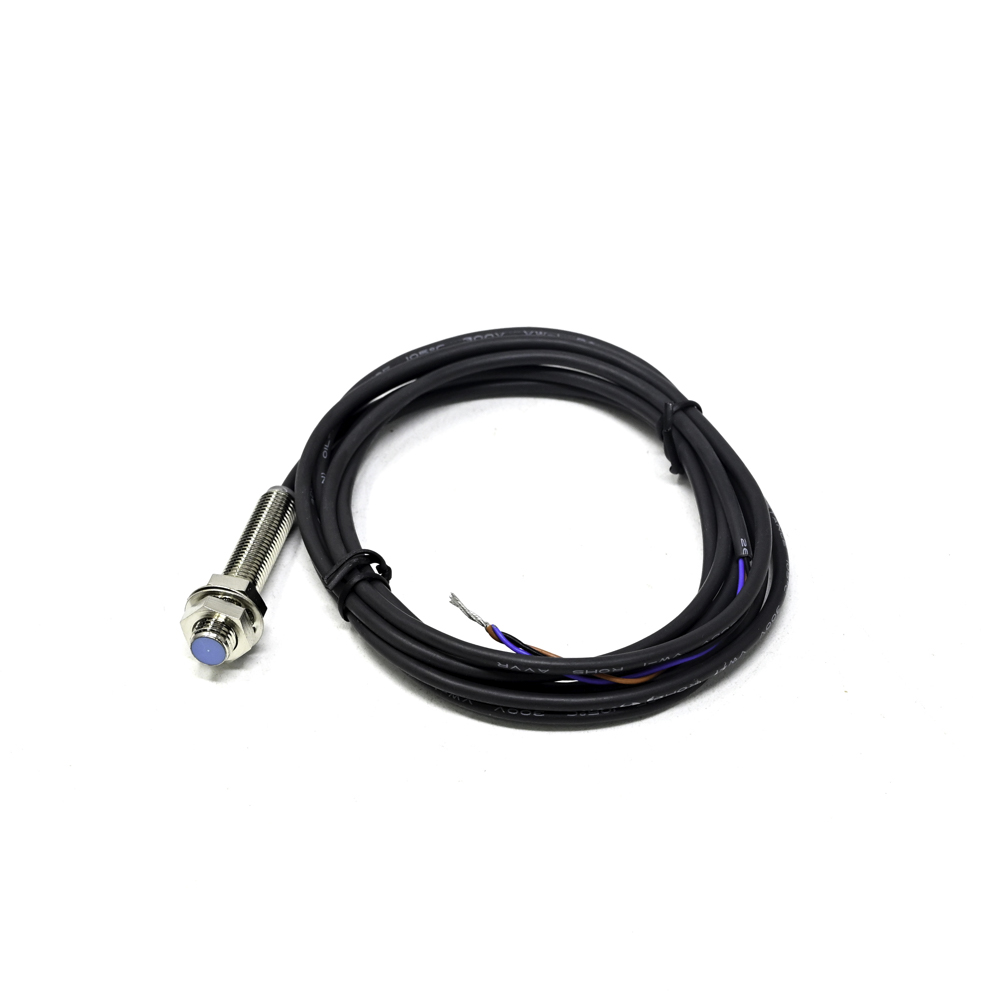

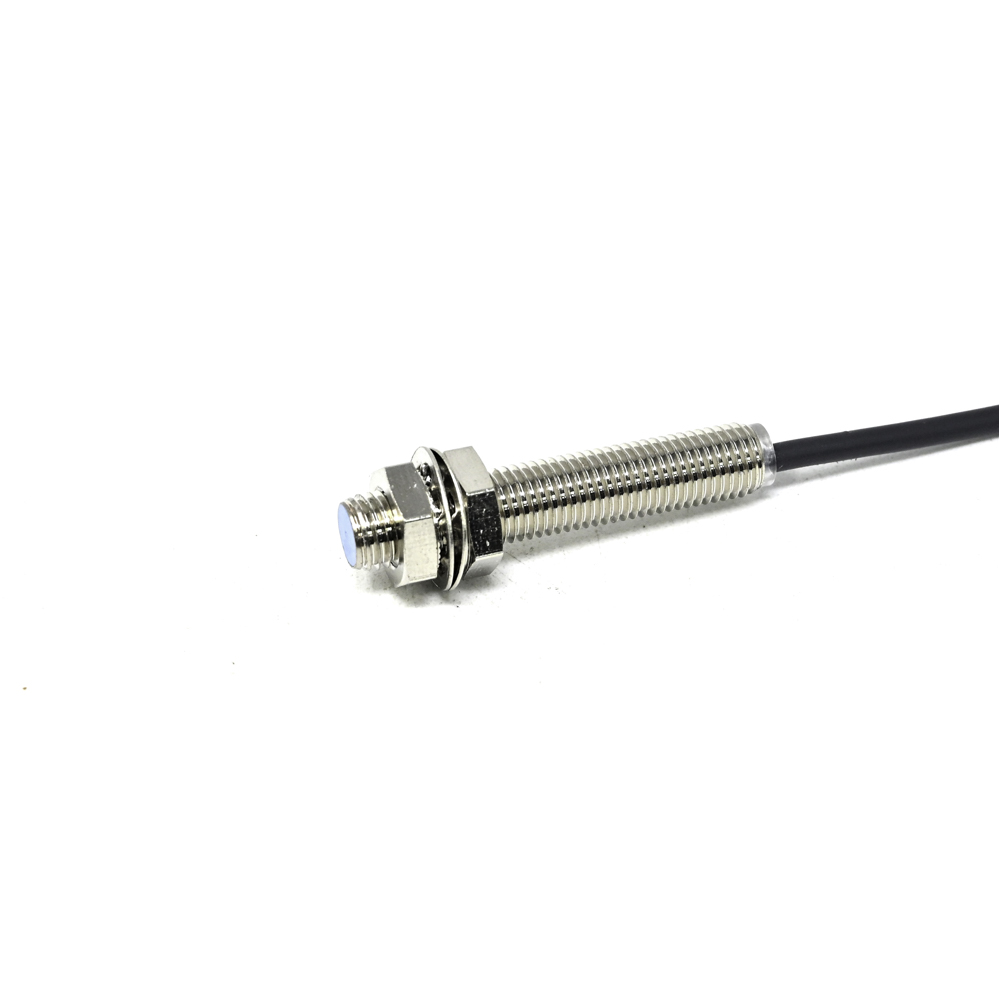

Pro-Range CZJ-A8M-2APA Inductive Proximity Sensor, 2mm Detection, PNP Output, M8 Thread

The sensor typically operates within a 10-30V DC range. It is designed for standard industrial 24V DC control systems. Ensure your power supply is within this range and that the load (e.g., PLC input) is connected between the sensor's output wire and ground (0V).

No. This is an inductive proximity sensor, which works on the principle of electromagnetic induction. It can only detect conductive, ferromagnetic metals such as steel and iron. Non-metallic materials like plastic, wood, or aluminum (non-ferrous) will not be detected.

Connect the brown wire to your positive DC supply (10-30V), the blue wire to the DC common/ground (0V), and the black wire is the PNP output. When a metal target is detected, the black wire will switch to supply voltage (source current) to your load, such as a PLC digital input.

The 2mm distance is the nominal sensing range. This is the standard distance at which a standard target (typically an 8mm square of mild steel) will reliably activate the sensor's output. For consistent operation, the target should approach the sensor face axially.
