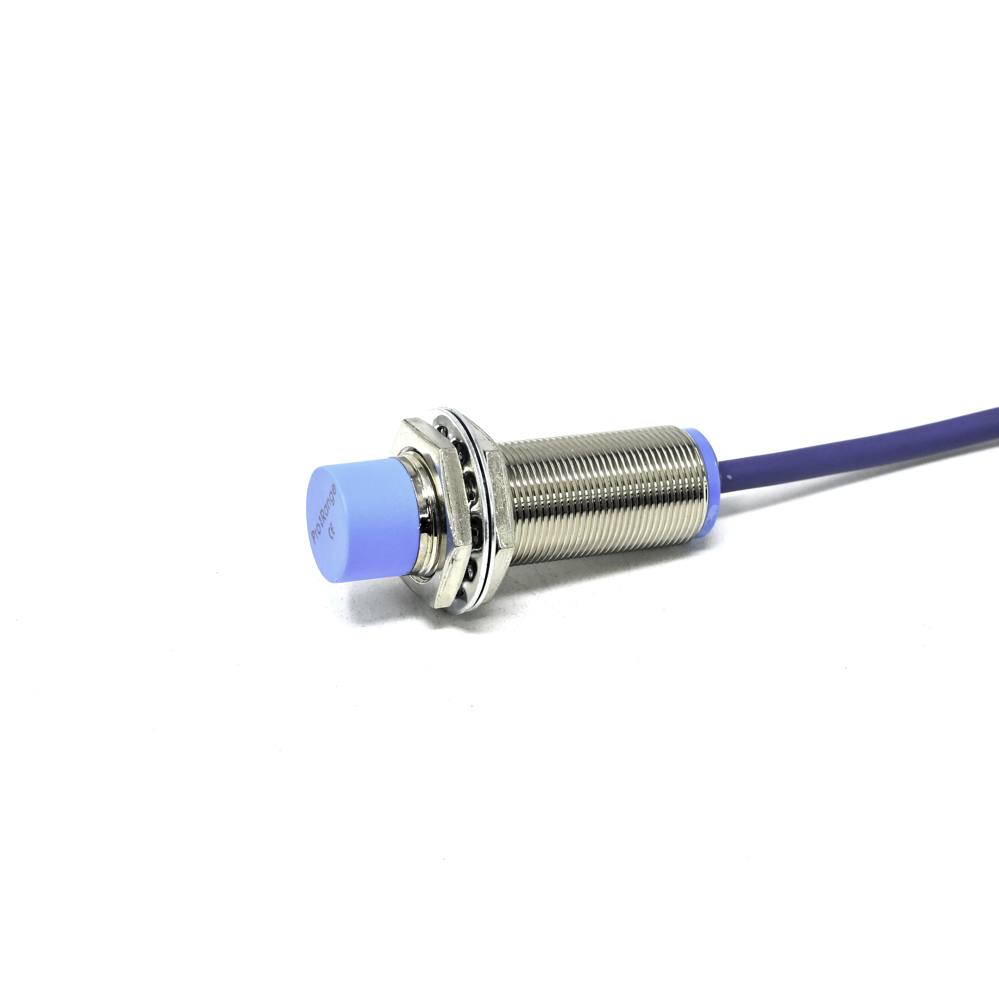

Pro-Range CZJ-A18-16APB Inductive Proximity Sensor, Detection Distance 16mm - PNP Output, M18 Thread

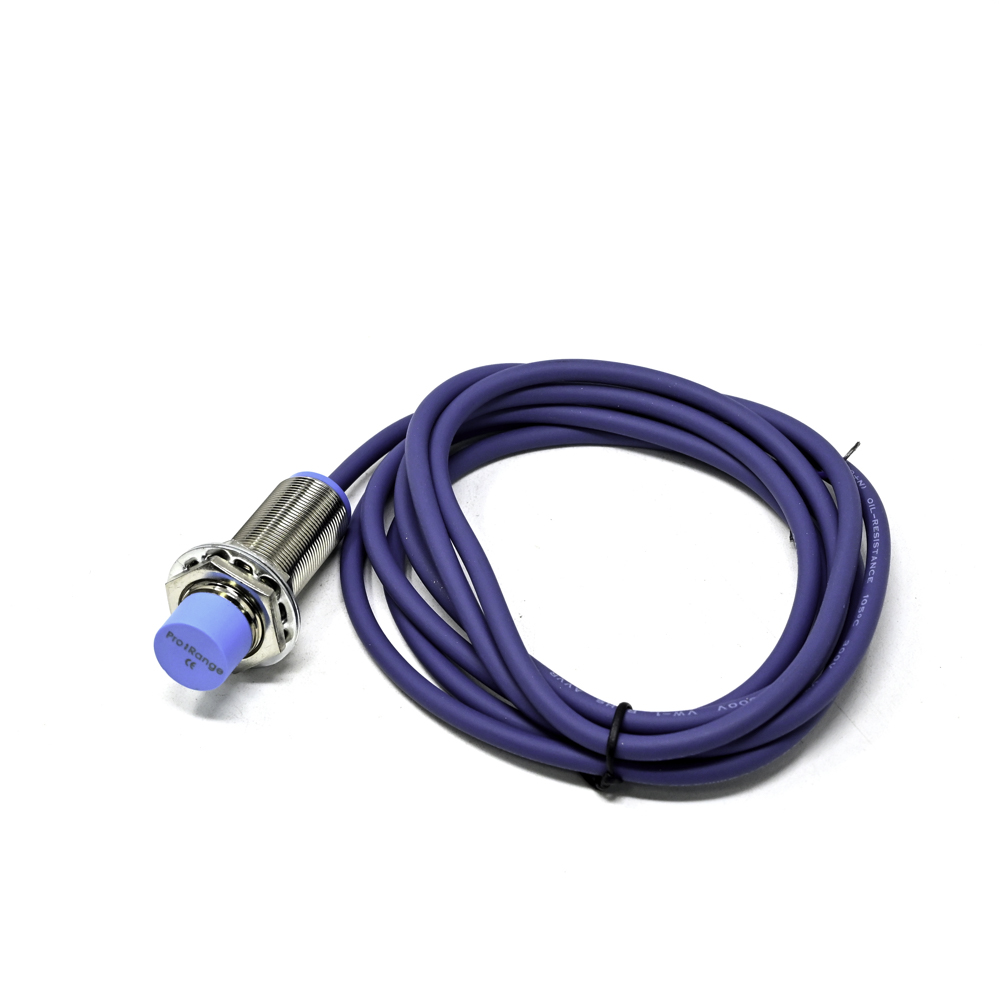

Pro-Range CZJ-A18-16APB Inductive Proximity Sensor, Detection Distance 16mm - PNP Output, M18 Thread - Image 2
SKU: SENS-2348
📋 GST Invoice Available

Pro-Range CZJ-A18-16APB Inductive Proximity Sensor, Detection Distance 16mm - PNP Output, M18 Thread

₹1,689.00 (Inclusive of all taxes)
Out of Stock

The Pro-Range CZJ-A18-16APB is an M18-threaded inductive proximity sensor with a 16mm detection range and PNP (sourcing) output, designed for industrial automation and machine control systems requiring non-contact detection of ferrous and non-ferrous metal targets.

Features

  • PNP (sourcing) output configuration for direct interface with PLCs and industrial controllers.
  • 16mm nominal detection distance for reliable non-contact sensing of metallic objects.
  • Standard M18 threaded barrel housing for easy panel or bracket mounting.
  • Integrated polarity and short-circuit protection for enhanced electrical robustness.
  • High-speed response suitable for fast-moving production line and positioning applications.

Out of stock

Description

The CZJ-A18-16APB operates on the electromagnetic induction principle, generating an oscillating field from its sensing face. When a conductive metal object enters this field, eddy currents are induced, causing a detectable change in the sensor’s internal oscillation amplitude. This change is processed to switch the PNP transistor output.

Engineered for harsh industrial environments, this sensor provides reliable object detection, limit switching, and position feedback in automated machinery. Its robust construction ensures long-term stability and resistance to common electrical faults, making it suitable for integration into 12-24V DC control systems.

Key Features

  • PNP Sourcing Output: Provides a positive voltage signal when activated, compatible with standard PLC input modules.
  • 16mm Sensing Range: Offers a balanced detection distance for medium-range positioning and presence detection tasks.
  • M18 Threaded Barrel: Standard industrial form factor for secure and adjustable mounting.
  • Metal Target Detection: Specifically designed to sense ferrous and non-ferrous conductive materials.
  • Integrated Circuit Protection: Built-in safeguards against reverse polarity and output short circuits.
  • High-Speed Switching: Fast response time enables use in high-cycle counting and rapid automation sequences.
  • Durable Construction: Housing designed to withstand typical industrial vibration, coolant, and chip exposure.
  • High-Value Build: Optimized performance-to-cost ratio for reliable automation sensing.

Applications

  • Machine tool part presence verification and tool break detection.
  • Conveyor system object counting and position limit switching.
  • Robotic end-effector position feedback and workpiece detection.
  • Automated assembly line component positioning and sequencing.
  • Industrial door and safety gate position monitoring.

Technical Specifications

Model NumberCZJ-A18-16APB
Output TypePNP (Sourcing)
Detection Distance16 mm
Thread SizeM18
Sensing PrincipleInductive
Target MaterialConductive Metals (Ferrous & Non-Ferrous)
Supply Voltage (Typical)10-30V DC
Output Current (Max)200 mA (Typical)
Switching FrequencyUp to 1 kHz (Typical)
Protection FeaturesPolarity & Short-Circuit Protection

Frequently Asked Questions

What is the operating voltage range for this PNP inductive sensor?

The sensor is designed for a typical DC supply voltage range of 10-30V. It is crucial to connect the brown wire to the positive supply and the blue wire to the negative/common terminal. Exceeding the maximum voltage can damage the internal circuitry.

How do I wire the PNP output to my PLC or controller?

The PNP output provides a switched positive voltage on the black wire when a target is detected. Connect the black wire to your PLC's digital input. The PLC input's common must be connected to the power supply negative (0V) to complete the circuit. Always refer to the controller's manual for specific sinking/sourcing input requirements.

Can this sensor detect non-metallic objects like plastic or wood?

No. Inductive proximity sensors are specifically designed to detect conductive metals only. They work by inducing eddy currents in the target material. Non-conductive materials like plastic, wood, or glass will not trigger the sensor. For such materials, a capacitive proximity sensor would be required.

What is the effective sensing distance, and does it vary with target material?

The rated 16mm detection distance is typically specified for a standard mild steel (Fe360) target. For non-ferrous metals like aluminum or copper, the effective sensing distance will be reduced, often by 30-50%. It is recommended to test with the actual target material during installation to ensure reliable operation.

Package Includes

  • 1 x Pro-Range CZJ-A18-16APB Inductive Proximity Sensor

Additional Information

Weight 0.03 kg
Dimensions 15 × 10 × 5 cm
