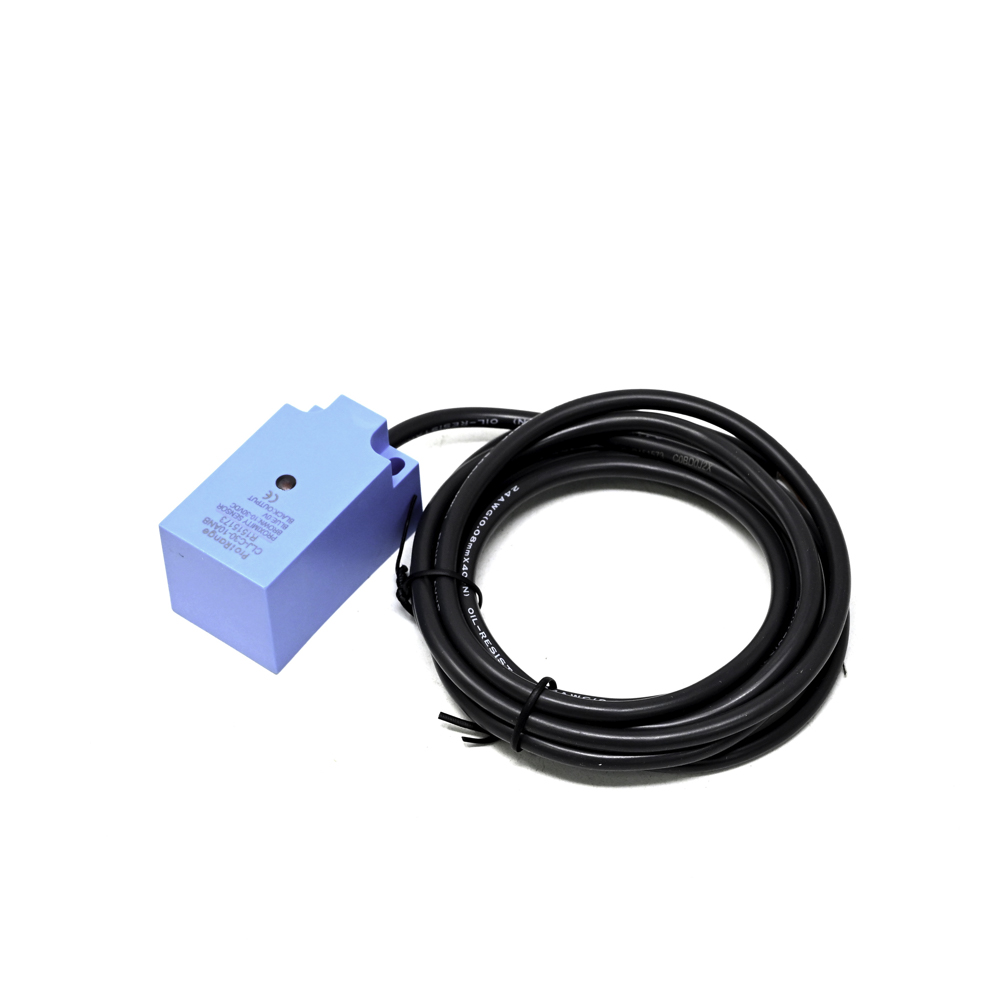

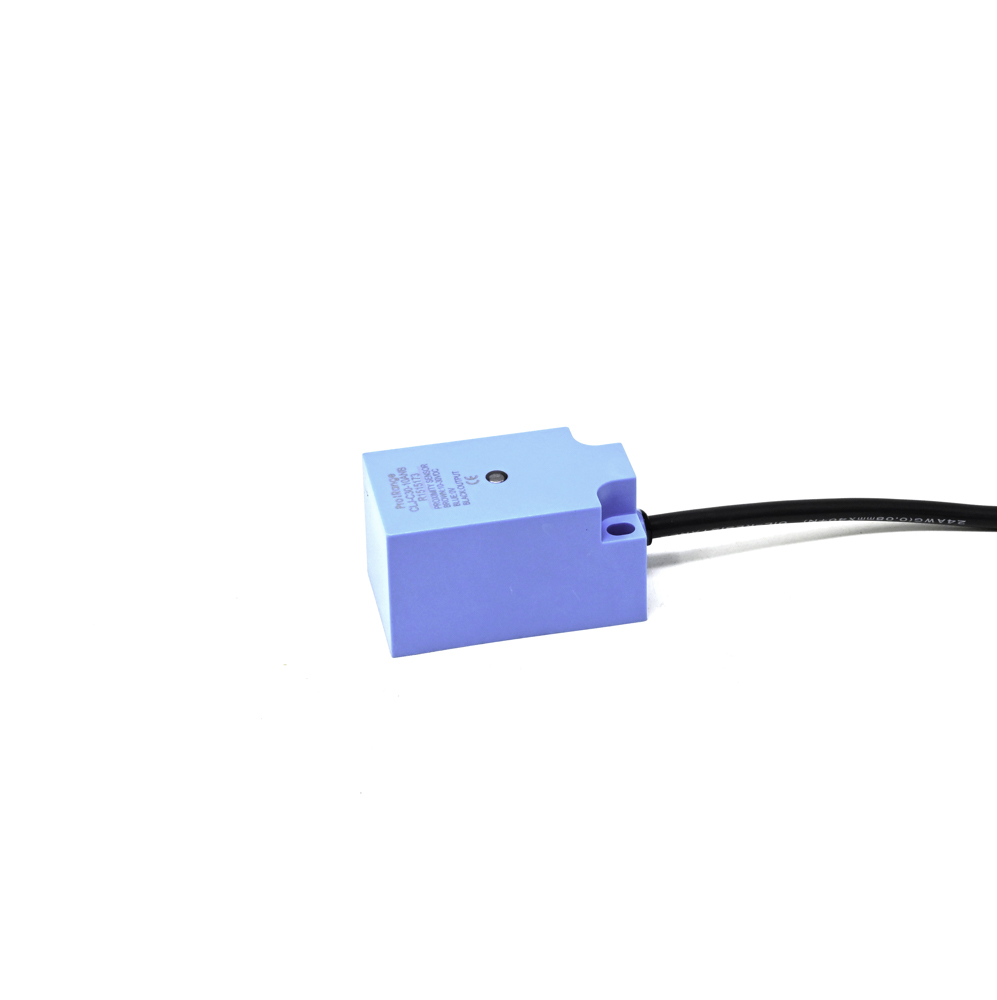

Pro-Range CLJ-C30-10ANB Inductive Proximity Sensor NPN NC 10mm Detection - 30x30mm Body
The Pro-Range CLJ-C30-10ANB is an NPN normally-closed (NC) inductive proximity sensor with a 10mm nominal detection range for ferrous metals. Featuring a compact 30x30mm square housing, it provides a solid-state output for reliable object detection, positioning, and limit switching in industrial automation and machinery.
Features
- NPN Normally-Closed (NC) output configuration for standard PLC and microcontroller sinking input compatibility.
- 10mm nominal detection distance optimized for reliable sensing of steel, iron, and other ferrous metals.
- Compact 30mm x 30mm square profile for easy integration into tight spaces and standard mounting brackets.
- Integrated polarity and short-circuit protection for enhanced electrical robustness and system longevity.
- Non-contact inductive sensing principle ensures high reliability with no mechanical wear on the sensor or target.
Out of stock
The CLJ-C30-10ANB operates on the electromagnetic induction principle, generating an oscillating field from its sensing face. When a conductive (primarily ferrous) metal object enters this field, it induces eddy currents that dampen the oscillation, triggering a change in the sensor’s internal circuit and switching its NPN output state. This solid-state design provides a fast response time and high repeatability for precise position detection.
Constructed for industrial environments, the sensor features a durable housing and built-in protection against wiring errors and output short circuits. Its 30x30mm form factor is a standard industrial size, compatible with a wide range of sensor mounts and brackets, making it suitable for integration into automated assembly lines, CNC machinery, material handling systems, and robotic end-effectors.
Additional Information
| Weight | 0.03 kg |
|---|---|
| Dimensions | 15 × 10 × 5 cm |
