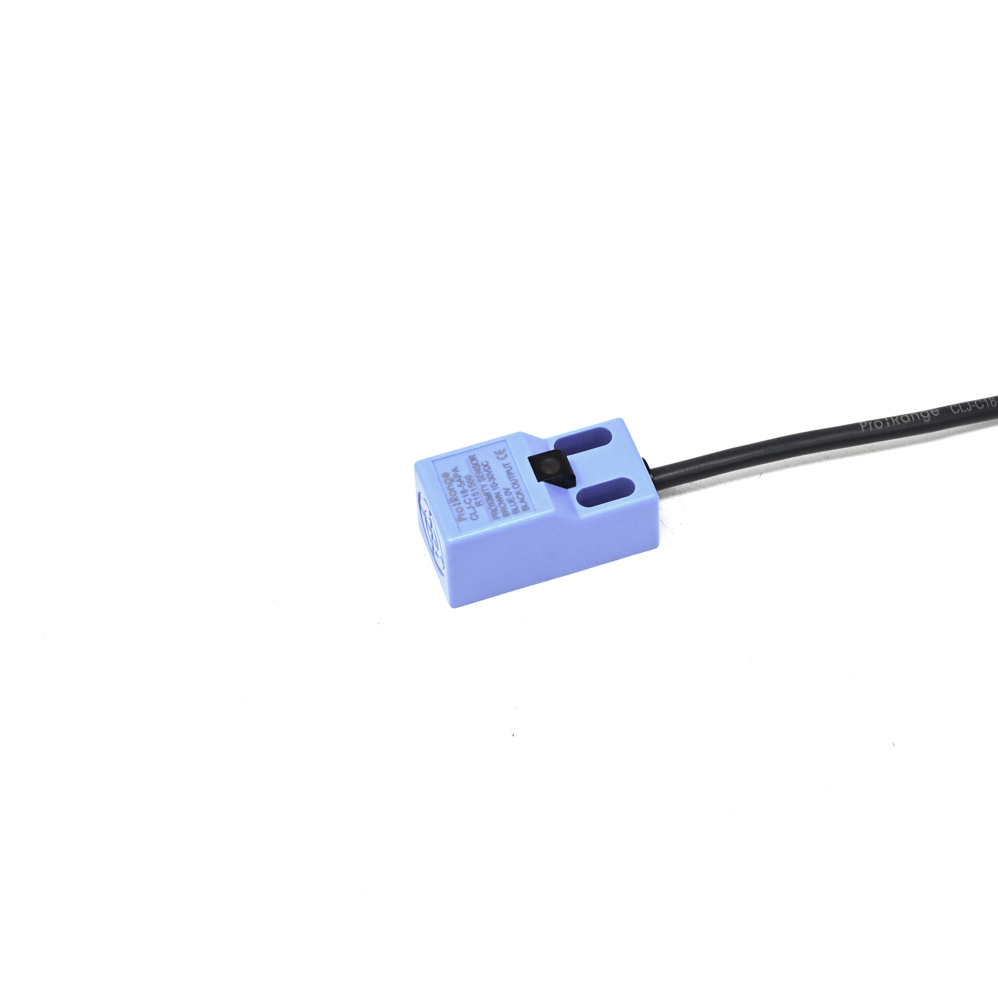

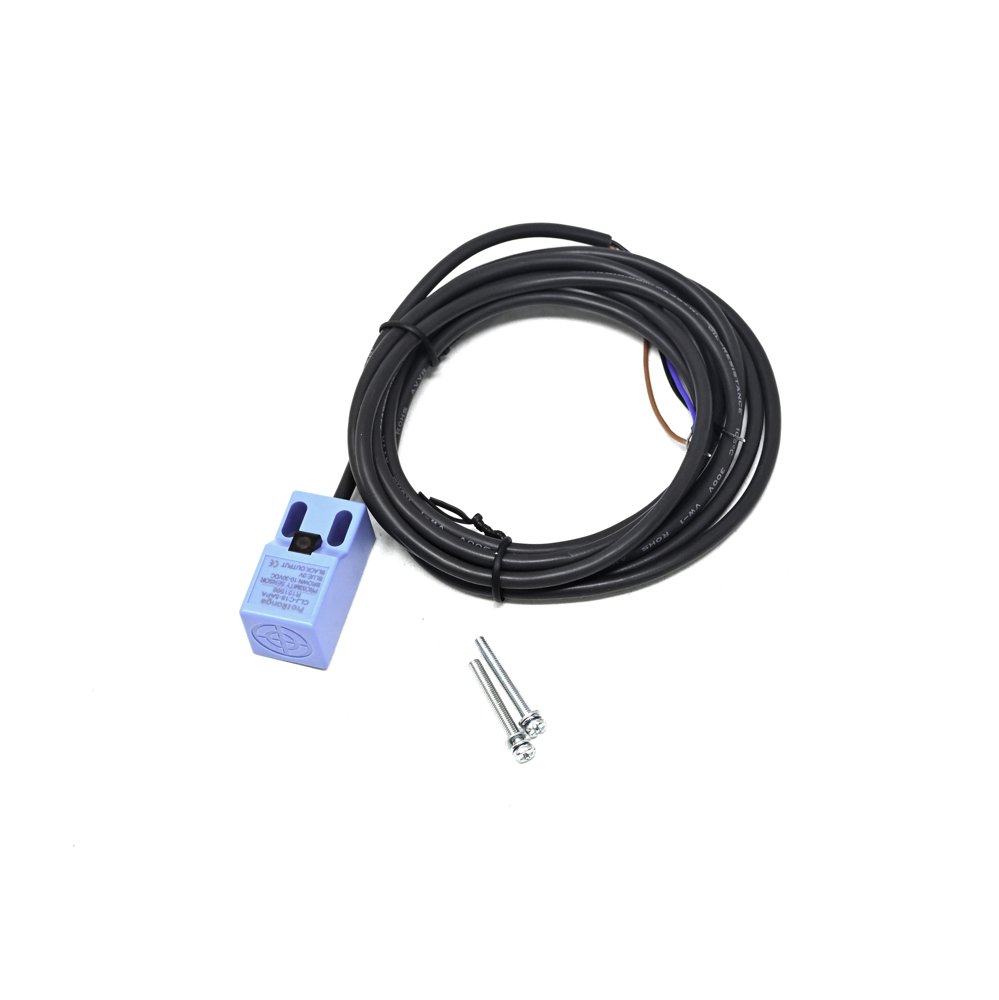

Pro-Range CLJ-C18-5APA Inductive Proximity Sensor - PNP Output, 5mm Range, 18x18mm Thread
The Pro-Range CLJ-C18-5APA is a shielded inductive proximity sensor with a PNP (sourcing) output, designed for non-contact detection of metallic objects within a 5mm range. Its compact 18x18mm threaded housing and 10-30V DC operating voltage make it suitable for integration into industrial automation systems, PLCs, and CNC machinery.
Features
- PNP (sourcing) NO (Normally Open) output for direct interface with PLCs and controllers.
- 5mm nominal detection distance for precise proximity sensing of ferrous metals.
- Compact M12-equivalent 18x18mm threaded barrel for easy panel mounting.
- Wide 10-30V DC operating voltage range compatible with standard industrial power supplies.
- Built-in polarity and short-circuit protection for enhanced system reliability.
Out of stock
The CLJ-C18-5APA operates on the electromagnetic induction principle, where an internal oscillator coil generates a high-frequency field. When a metallic object enters this field, eddy currents are induced, causing a detectable change in the oscillator’s amplitude. This change is processed by the internal circuitry to switch the PNP transistor output.
Constructed with a shielded (flush-mountable) sensing face, this sensor can be installed flush with metal surfaces without loss of sensing range. It features robust environmental sealing for reliable operation in industrial settings, offering high repeat accuracy and a fast response time for tasks like part counting, position verification, and end-of-travel detection.
Additional Information
| Weight | 0.03 kg |
|---|---|
| Dimensions | 1.8 cm |
