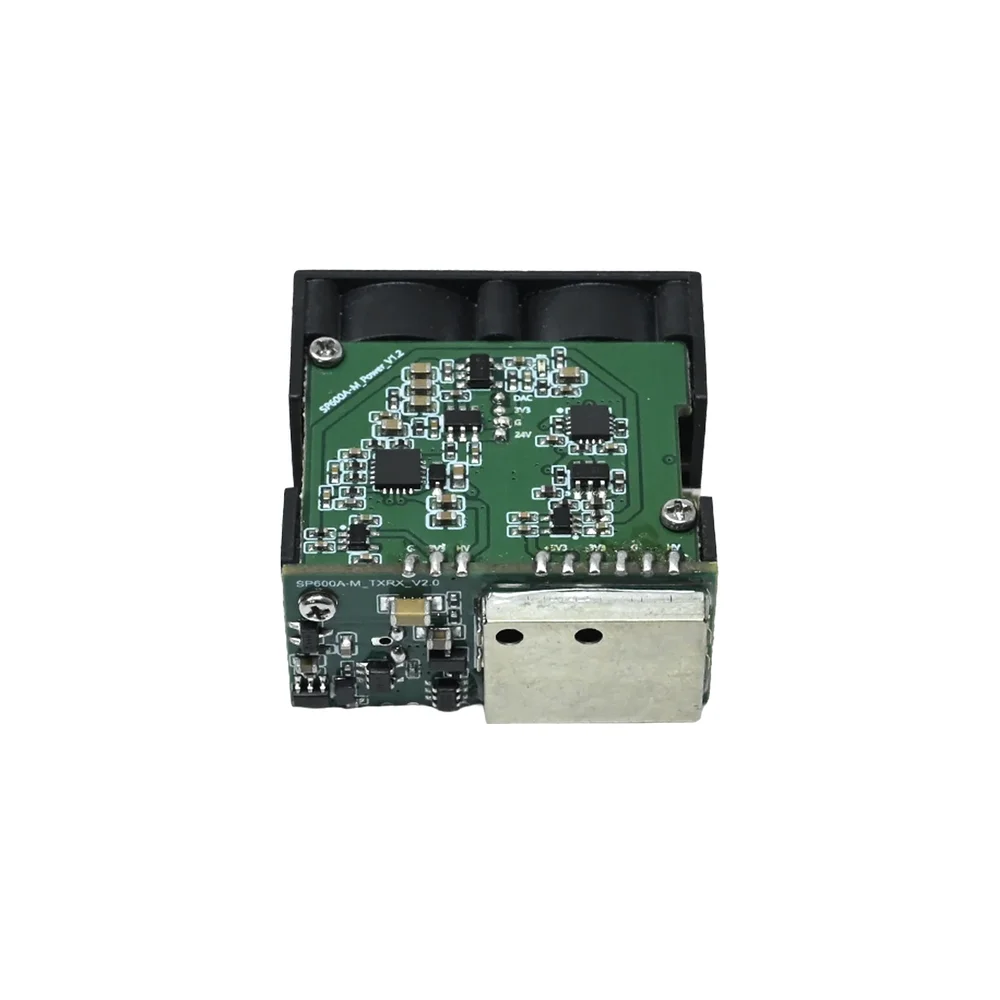

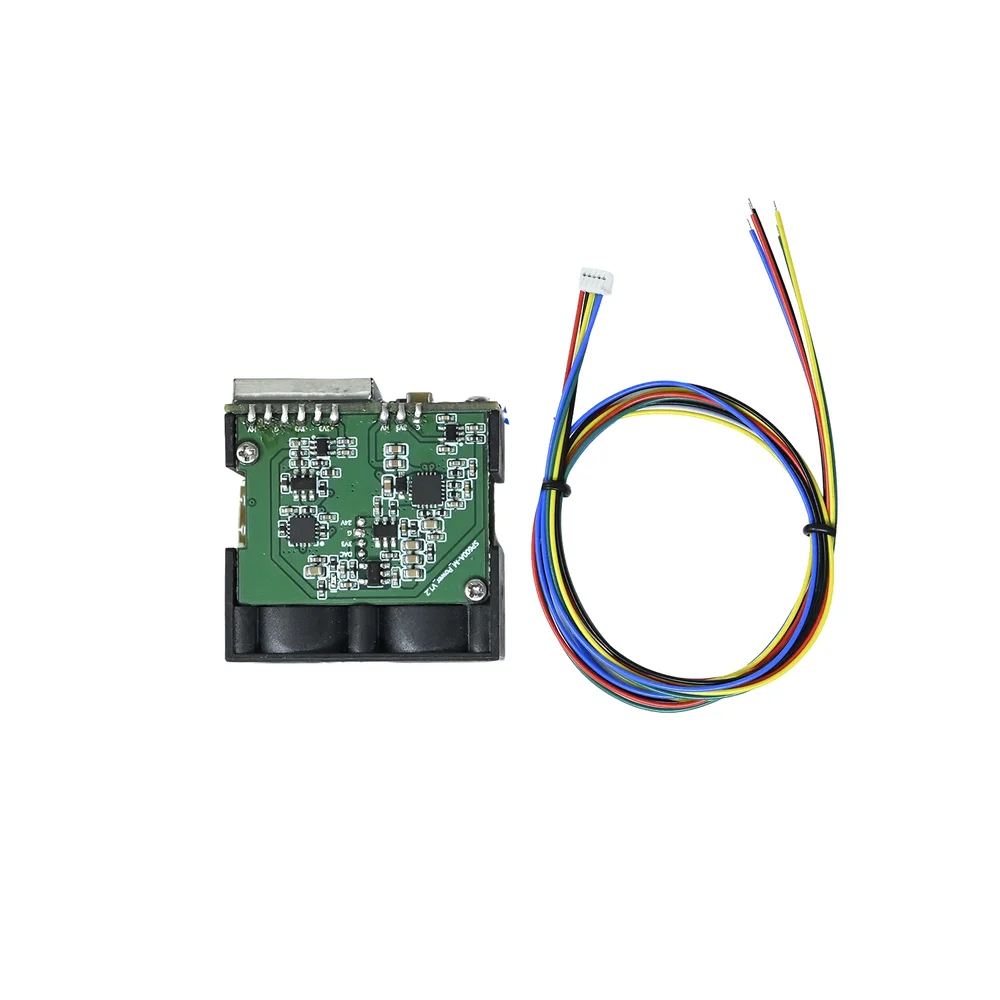

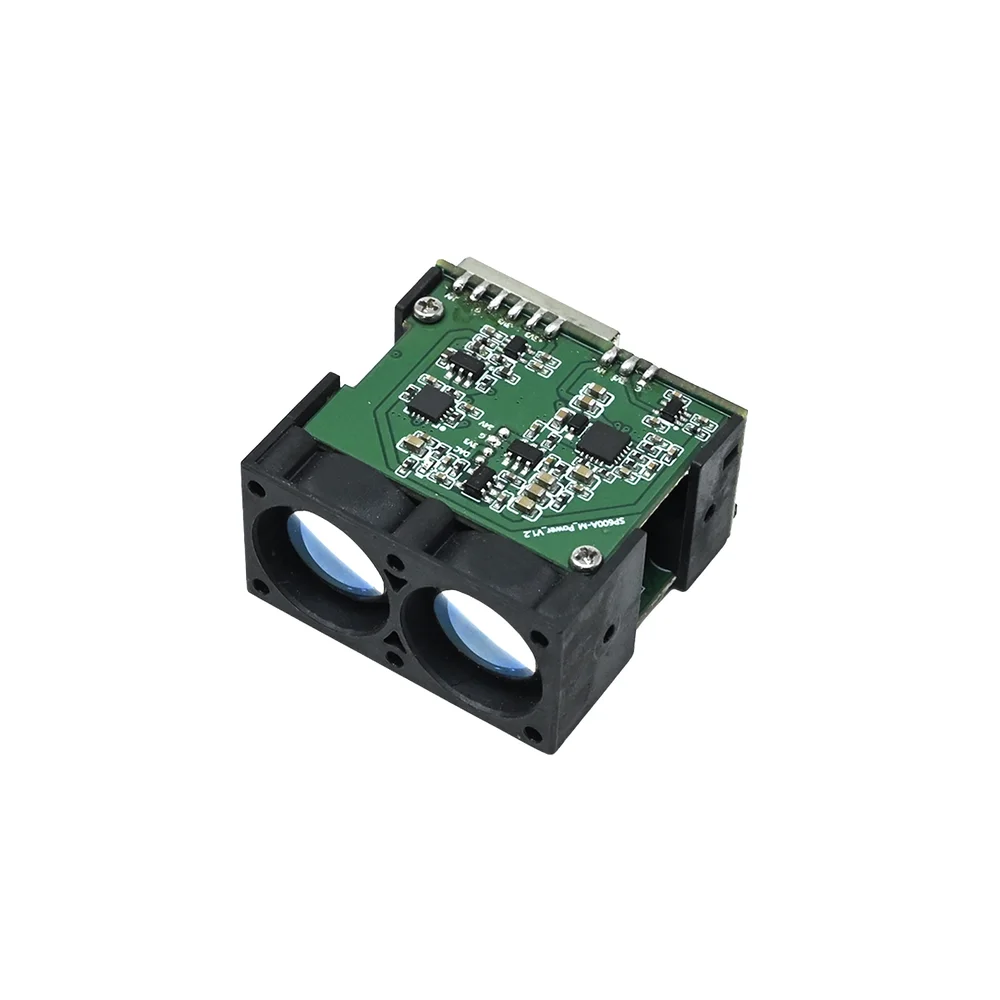

PONO WTT300-300m Single-Point ToF LiDAR Distance Sensor Module, UART/I2C, 9-36V, 1KHz/50Hz
The PONO WTT300 is a high-performance single-point ToF LiDAR distance sensor module offering long-range measurement up to 300 meters. It features a wide 9-36V DC input range for industrial compatibility, UART/I2C communication interfaces, and selectable 1KHz or 50Hz output frequencies for flexible integration into robotics, surveying, and automation systems.
Features
- Long-range DTOF measurement from 0.05m to 300m (90% reflectivity)
- High accuracy of ±10cm or 1% of reading for precise distance data
- Robust 100KLux ambient light immunity for reliable outdoor operation
- Dual selectable output frequencies: 1KHz for high-speed or 50Hz for standard applications
- Wide 9-36V DC supply voltage range suitable for industrial power systems
Out of stock
The PONO WTT300 utilizes advanced Direct Time-of-Flight (DTOF) technology with a 905nm laser source to deliver stable and accurate distance measurements over an extensive range. Its compact, lightweight design houses a sophisticated optical system with a narrow ~4mrad field of view, minimizing interference from peripheral objects.
Engineered for harsh environments, the module operates reliably from -20°C to +60°C and maintains performance under intense ambient light up to 100,000 lux. The Class 1 laser safety rating ensures eye-safe operation, making it suitable for a wide array of applications where personnel may be present.
Additional Information
| Weight | 0.02 kg |
|---|---|
| Dimensions | 3.3 × 3.4 cm |
