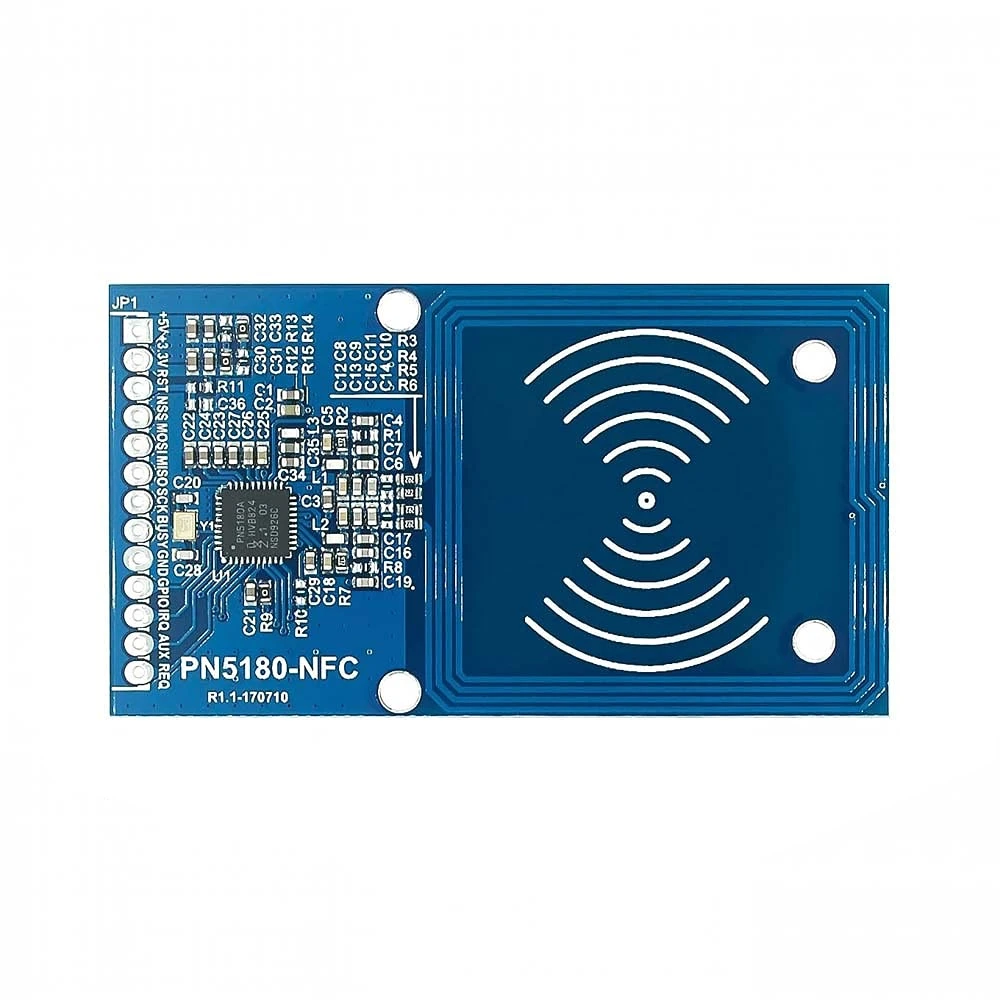

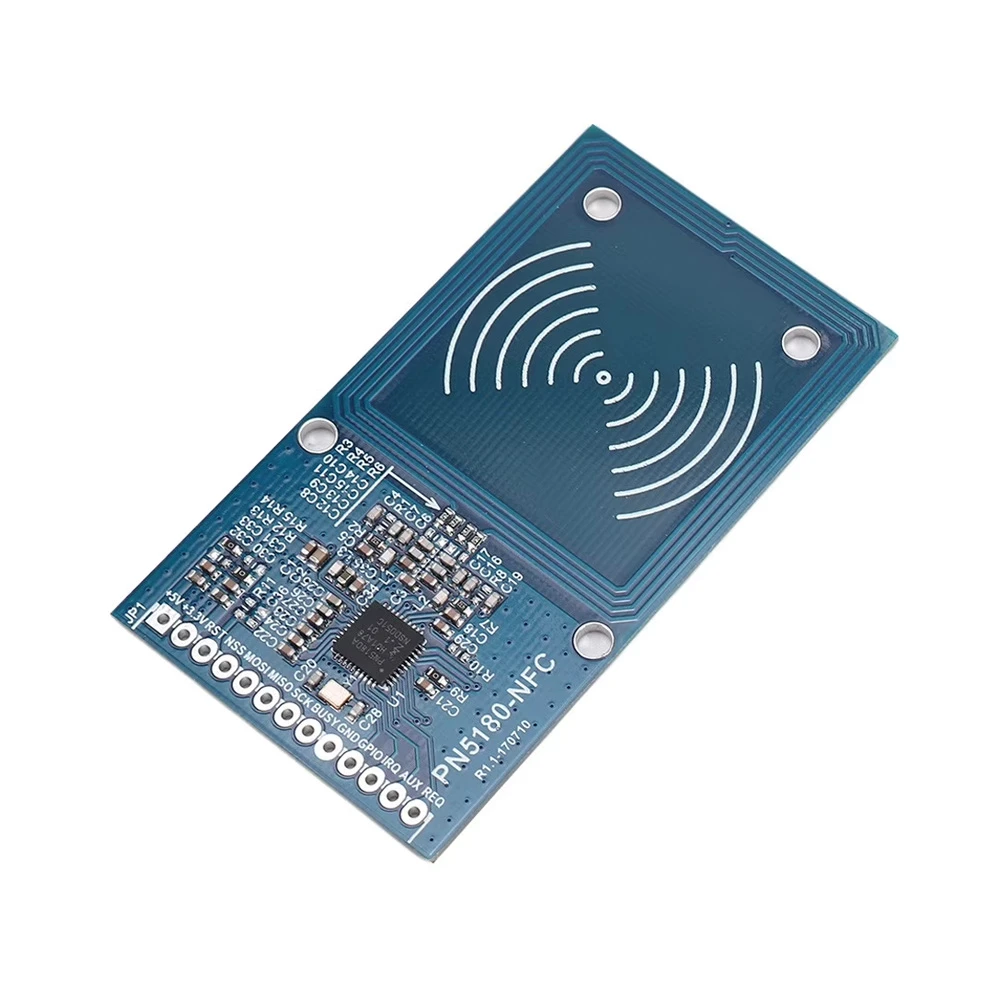

PN5180 NFC RFID Reader/Writer Module - SPI Interface, ISO15693, ISO14443 A/B, FeliCa
The PN5180 NFC RF Sensor Module is a high-frequency (13.56 MHz) RFID reader/writer supporting ISO/IEC 14443 A/B, ISO 15693, FeliCa, and ISO/IEC 18092 protocols. It interfaces via SPI for fast communication with microcontrollers like Arduino, ESP32, and Raspberry Pi, making it ideal for advanced contactless applications.
Features
- High-performance PN5180 chipset for multi-protocol NFC/RFID reading and writing.
- Supports ISO/IEC 14443 A/B, ISO 15693, FeliCa, and ISO/IEC 18092 (NFC) standards.
- SPI interface ensures fast, reliable communication with 3.3V logic microcontrollers.
- Integrated DPS (Dynamic Power Save) function enhances signal stability and reception quality.
- Operates in Reader/Writer, Card Emulation, and Peer-to-Peer (NFC) modes.
Out of stock
The PN5180 NFC RF Sensor Module is a versatile, high-frequency contactless communication solution built around the NXP Semiconductors PN5180 frontend IC. It operates at the 13.56 MHz ISM band and is engineered for robust performance in demanding environments, featuring an integrated DPS function that optimizes power consumption and signal integrity. The module’s SPI interface provides a straightforward connection to host processors for high-speed data exchange.
Designed for system integrators and developers, this module offers full support for major NFC and RFID protocols, enabling applications from simple card reading to complex peer-to-peer data transfer. Its compact form factor and 3.3V logic supply make it suitable for integration into embedded systems, portable devices, and industrial automation setups requiring reliable contactless identification.
Additional Information
| Weight | 0.009 kg |
|---|---|
| Dimensions | 7 × 3.9 × 0.5 cm |
