Arduino UNO R3 / MEGA2560 Terminal Shield - Unsoldered

This terminal expansion board is fully compatible with both the Arduino UNO R3 and Arduino MEGA2560 development boards. It is designed to stack directly onto their respective header pins, providing easy access to all I/O for secure connections, making it versatile for various projects and development needs.

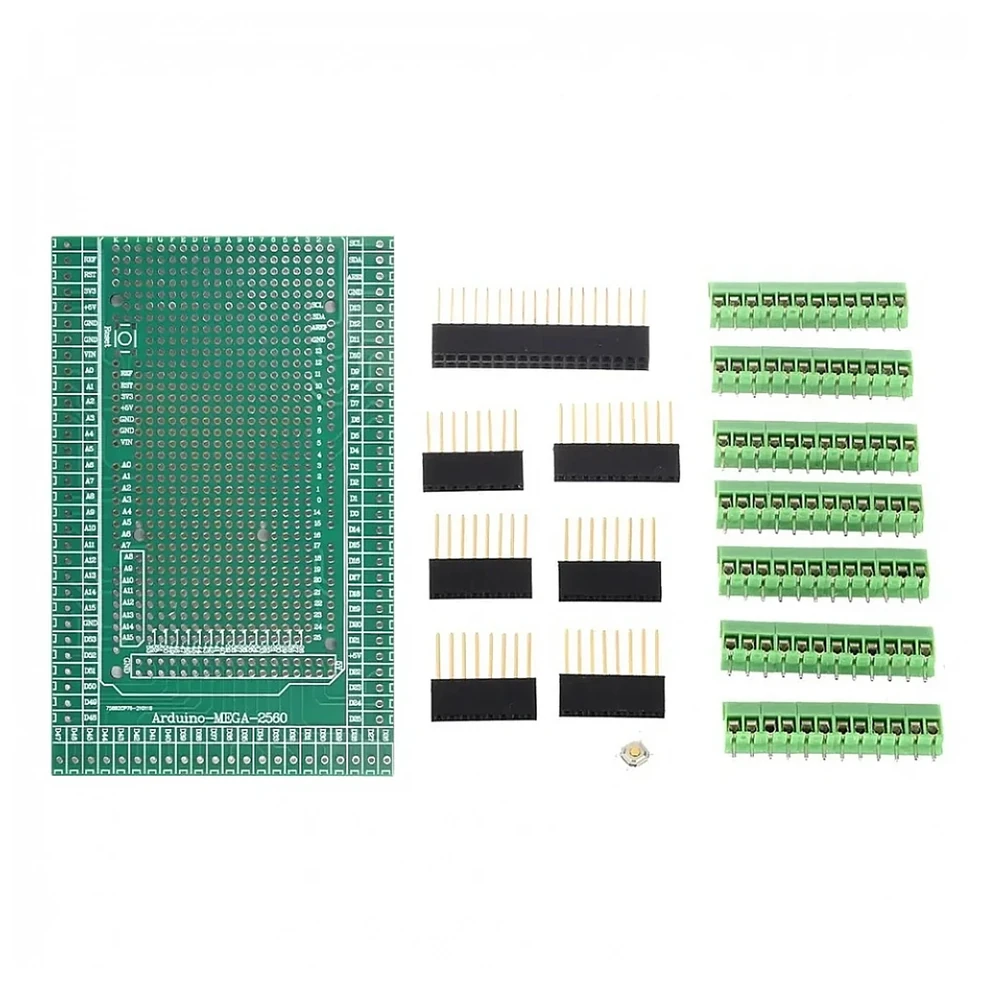

No, this is an "Unsoldered" version. The screw terminal blocks and female header sockets are included but require the user to solder them onto the PCB. This approach offers flexibility, allowing users to choose specific header types or custom wiring setups as needed for their application.

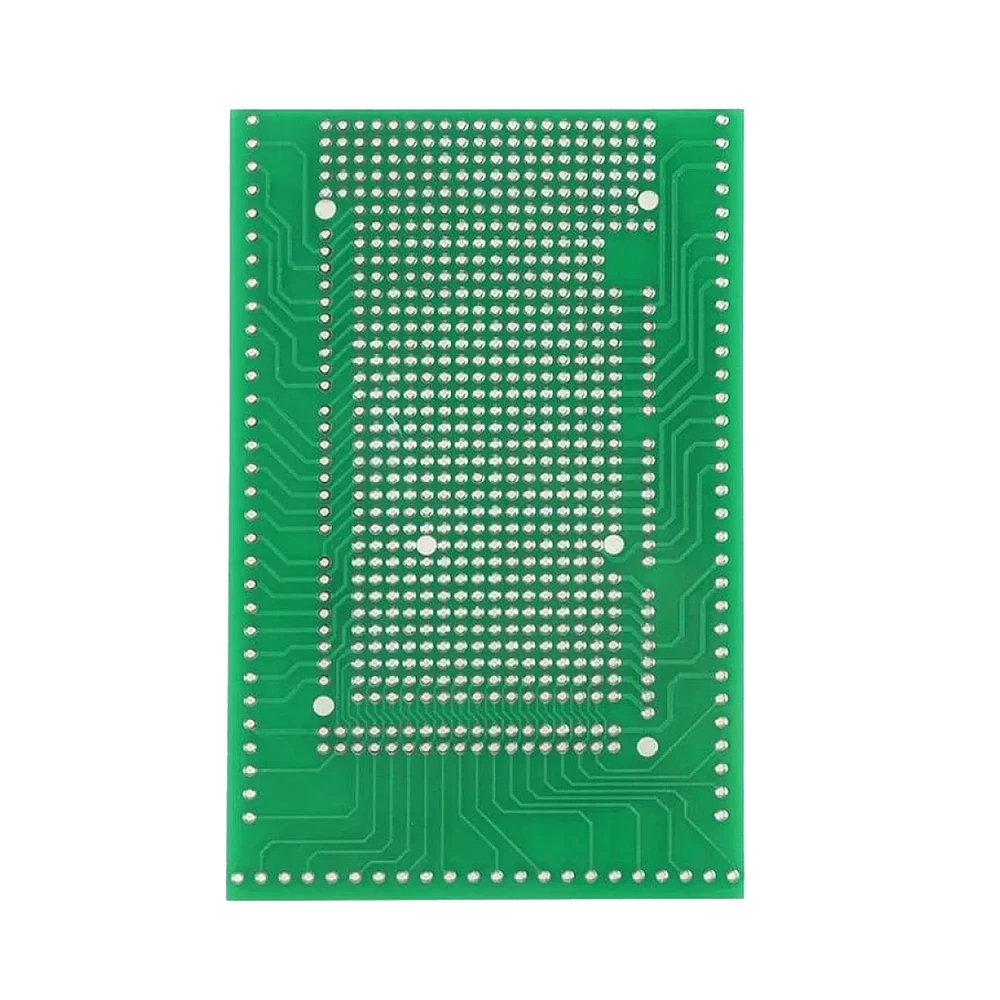

The integrated prototype PCB area allows users to build custom circuits directly on the shield. This eliminates the need for external breadboards, enabling the addition of sensors, actuators, or other components and creating more permanent, compact prototypes without extensive external wiring.

This shield simplifies wiring by providing clearly labeled screw terminal blocks for every Arduino I/O pin. This design ensures robust, secure connections for wires, preventing accidental disconnections common with breadboards, and organizing complex wiring harnesses for clarity and easier debugging in embedded applications.

A stackable shield design allows this terminal board to be placed on top of an Arduino board while still enabling other shields to be stacked on top of it. This modularity is crucial for complex projects, facilitating the expansion of functionality without occupying additional space or requiring extensive re-wiring.
