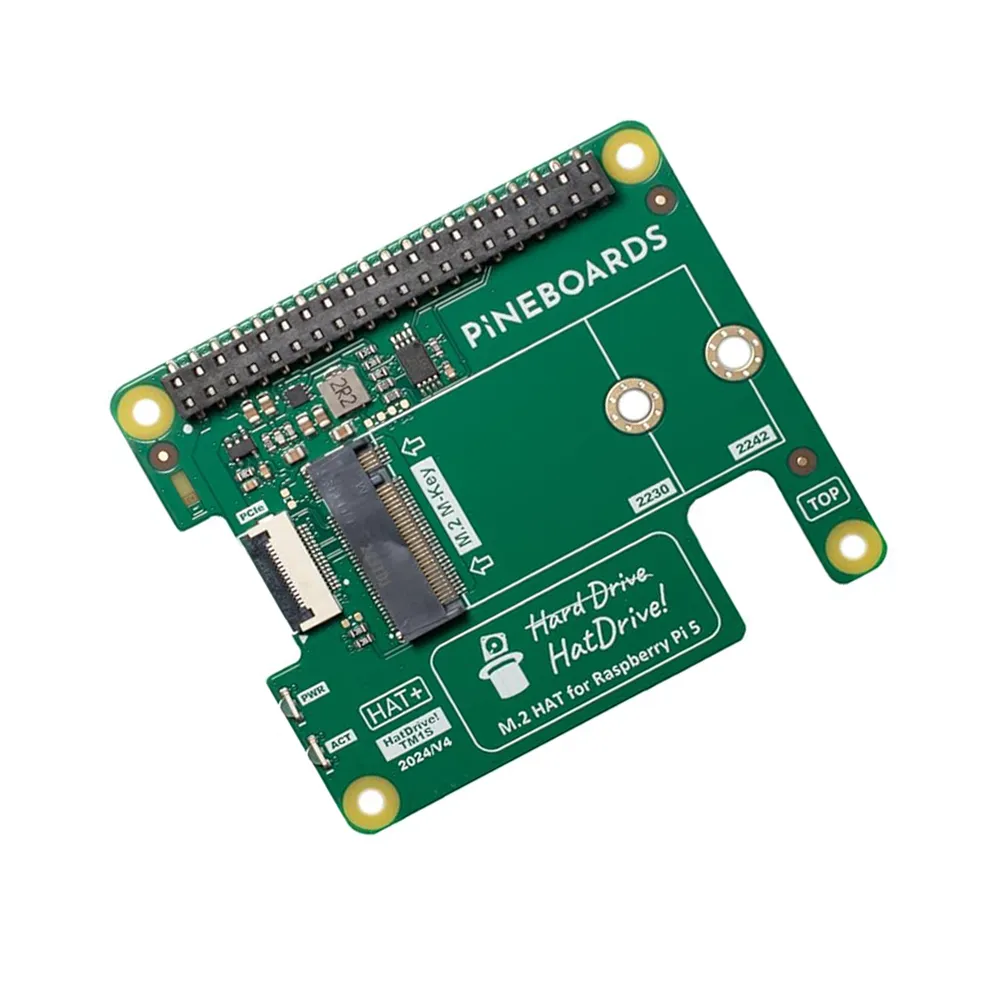

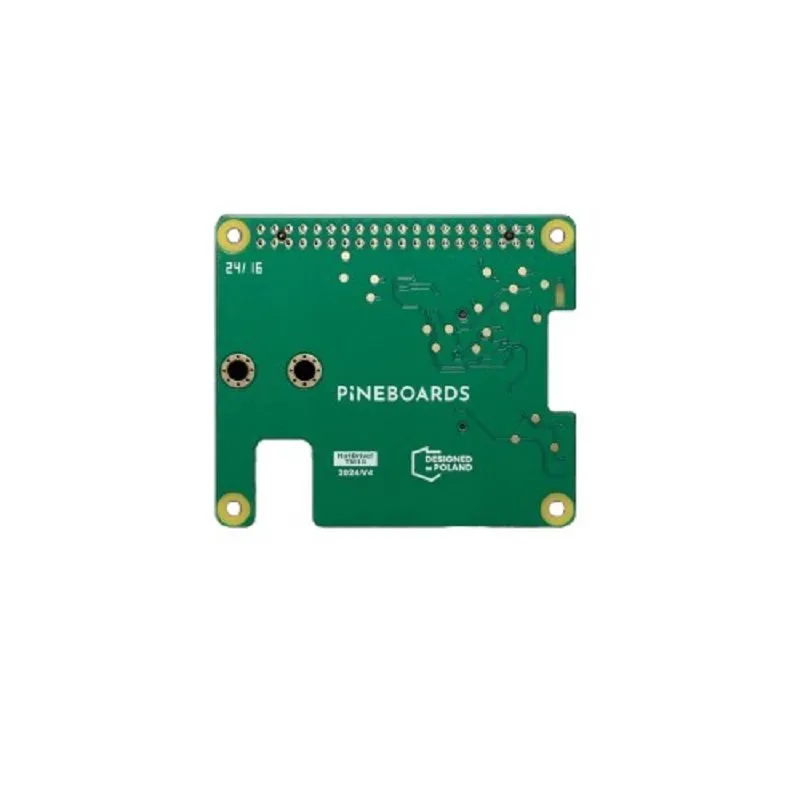

Pineboards HatDrive! Top (NVMe 2230/2242) for Raspberry Pi 5
The Pineboards HatDrive! Top is an NVMe expansion HAT designed for the Raspberry Pi 5, providing fast and reliable M.2 NVMe storage via its PCIe x1 interface for enhanced performance.
Features
- Raspberry Pi 5 compatible, designed for PCIe x1 (Gen2/Gen3) interface.
- Supports M.2 NVMe SSDs in 2230 and 2242 form factors.
- Features dual LED indicators for power and M.2 activity.
- Integrated 3A @ 3.3V regulator ensures stable power delivery to the M.2 drive.
- Compact HAT form factor with 40-pin connector for stackable design.
Out of stock
The Pineboards HatDrive! Top (TM1S) is engineered to unlock the full potential of your Raspberry Pi 5 by integrating high-speed NVMe storage. This expansion HAT utilizes the Pi 5’s dedicated PCIe x1 interface, supporting both Gen2 and Gen3 standards, to provide a significant upgrade over traditional microSD card performance. It accommodates M.2 NVMe (M-key) drives in popular 2230 and 2242 sizes, making it ideal for operating systems, large data sets, and demanding applications.
Beyond its core storage capabilities, the HatDrive! Top is designed with robust power management, featuring a 3A @ 3.3V regulator to ensure stable power delivery to the NVMe SSD. It also includes dual LED indicators for power and M.2 activity, offering visual feedback on its operational status. The board maintains a standard Raspberry Pi HAT form factor, ensuring compatibility with existing enclosures and allowing for stacking with other HATs, while clear PCB markings and a secure CNC-machined bracket simplify installation.
Additional Information
| Weight | 0.049 kg |
|---|---|
| Dimensions | 14 × 10 × 3 cm |
