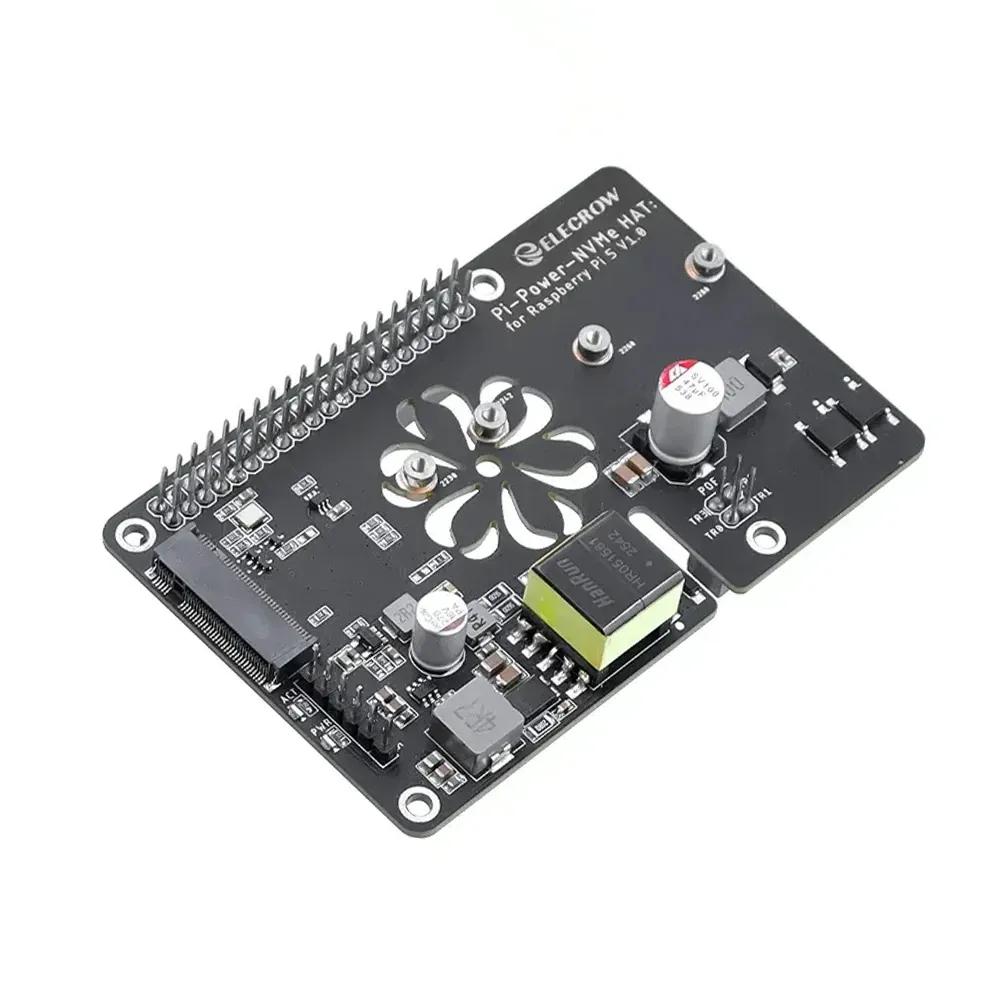

Elecrow Pi Power M.2 NVMe & PoE+ HAT for Raspberry Pi 5

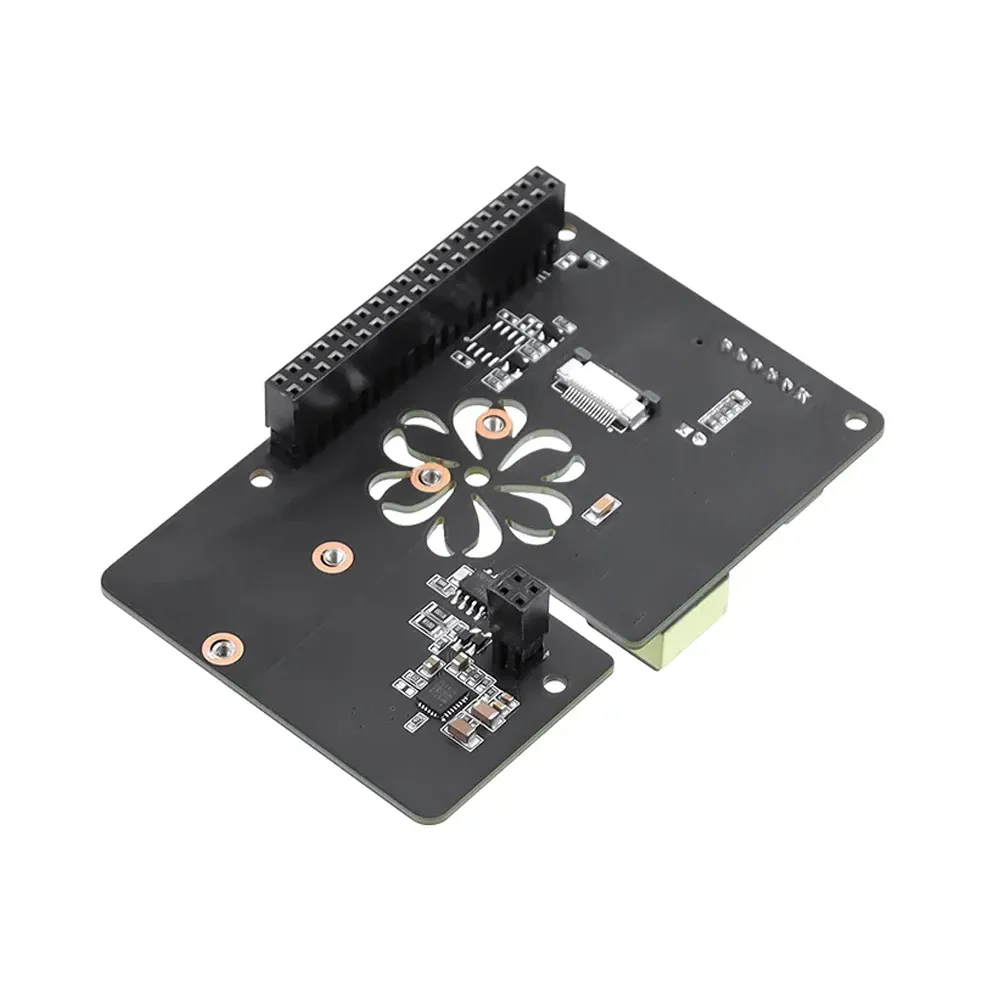

Elecrow Pi Power M.2 NVMe & PoE+ HAT for Raspberry Pi 5 - Image 2

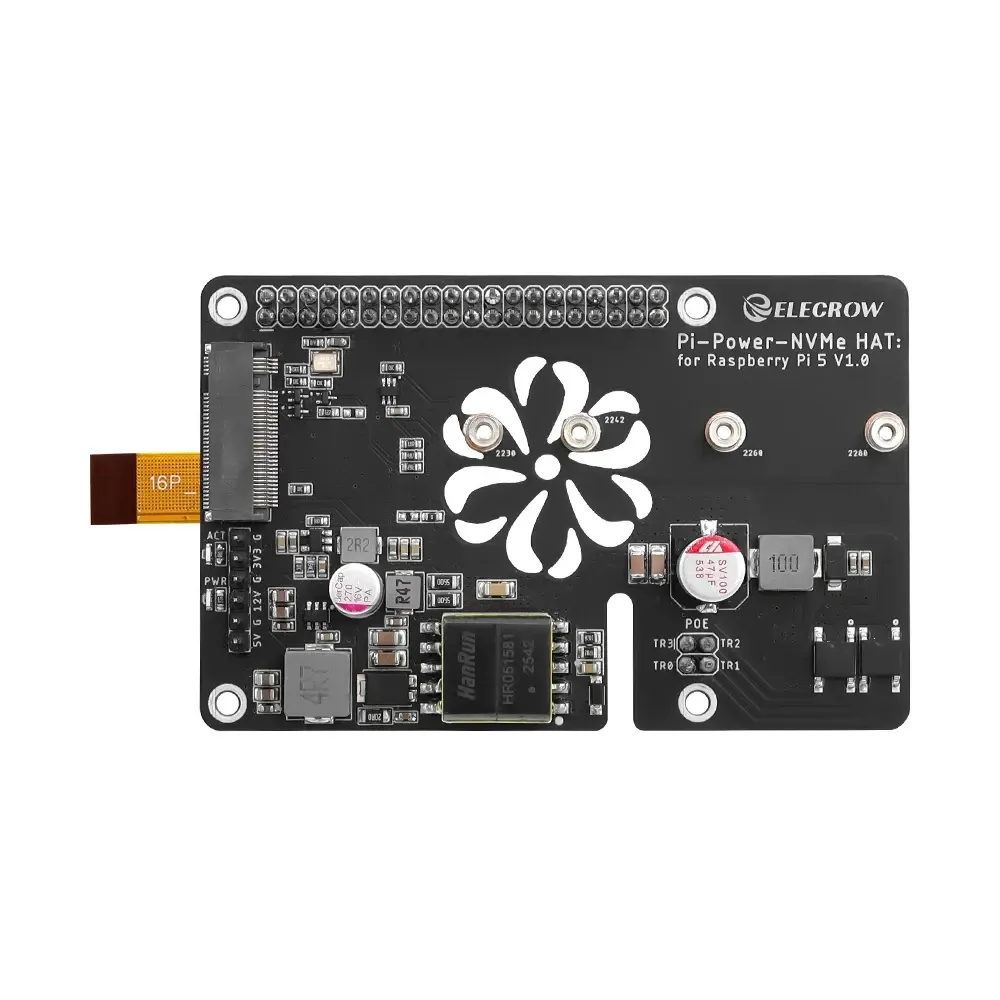

Elecrow Pi Power M.2 NVMe & PoE+ HAT for Raspberry Pi 5 - Image 3
SKU: SBCD-0847
📋 GST Invoice Available

Elecrow Pi Power M.2 NVMe & PoE+ HAT for Raspberry Pi 5

₹1,549.00 (Inclusive of all taxes)
Out of Stock

The Elecrow Pi Power M.2 NVMe and PoE+ HAT expands your Raspberry Pi 5 with high-speed PCIe M.2 NVMe storage and convenient IEEE 802.3af/at PoE+ power, supporting SSD sizes from 2230 to 2280. This all-in-one board ensures robust power delivery and network connectivity over a single Ethernet cable, exclusively for the Raspberry Pi 5.

Features

  • Integrates native PCIe interface for high-speed M-Key M.2 NVMe SSDs.
  • Compatible with 2230, 2242, 2260, and 2280 NVMe SSD form factors.
  • Features IEEE 802.3af/at compliant PoE+ input (37V–57V DC) for simplified power.
  • Provides a stable 5V/5A continuous power output for the Raspberry Pi 5.
  • Designed exclusively for Raspberry Pi 5, retaining full access to the 40-pin GPIO.

Out of stock

Description

Upgrade your Raspberry Pi 5 with the Elecrow Pi Power M.2 NVMe and PoE+ HAT, an all-in-one expansion board engineered for high-speed storage, simplified power delivery, and flexible hardware expansion. Leveraging the Raspberry Pi 5’s native PCIe interface, it supports M-Key M.2 NVMe SSDs in 2230, 2242, 2260, and 2280 form factors, delivering significantly faster boot times and storage performance compared with microSD card storage.

The integrated IEEE 802.3af/at PoE+ module delivers both power and network connectivity over a single Ethernet cable, making installations cleaner and more efficient for NAS systems, industrial automation, edge computing, and network appliances. The compact HAT design remains compatible with the official Raspberry Pi 5 Active Cooler while retaining access to the 40-pin GPIO header for additional expansion.

Providing up to 5V/5A continuous output along with 12V, 5V, and 3.3V power rails, the Elecrow Pi Power M.2 NVMe and PoE+ HAT offers reliable power distribution for demanding Raspberry Pi 5 projects. It is an ideal solution for developers, makers, educators, and industrial users looking to combine high-speed NVMe storage with convenient PoE-powered deployment.

Key Features

  • Single-Cable Power (PoE+): Delivers both power and data over a single Ethernet cable, enabling clean and clutter-free installations.
  • High-Speed NVMe Storage: Utilizes the Raspberry Pi 5's native PCIe interface for ultra-fast M.2 NVMe SSD performance.
  • Flexible SSD Compatibility: Supports a wide range of M.2 NVMe drive sizes, including 2230, 2242, 2260, and 2280.
  • Powerful Output Options: Provides stable 5V/5A continuous output to the Raspberry Pi 5, plus additional 12V, 5V, and 3.3V power rails for peripherals.
  • GPIO Retention: Ensures the 40-pin GPIO header remains fully accessible for connecting additional expansion boards and modules.
  • Cooling-Friendly Design: Compact form factor allows seamless compatibility with official Raspberry Pi 5 cooling solutions, such as the Active Cooler.
  • Multi-Voltage Interfaces: Includes dedicated 3.3V, 5V, 12V, and GND output pins for diverse project power requirements.

Applications

  • High-performance network-attached storage (NAS) systems
  • Edge computing nodes for data processing and AI inference
  • IoT gateways for industrial automation and data collection
  • Robotics control centers requiring fast storage and simplified power
  • Media servers for streaming and content management
  • Educational and scientific research experimental platforms

Technical Specifications

Product TypeRaspberry Pi 5 NVMe & PoE+ Expansion HAT
Compatible BoardRaspberry Pi 5
Storage InterfaceNative PCIe
SSD SupportM.2 NVMe (M-Key Only)
Supported SSD Sizes2230 / 2242 / 2260 / 2280
PoE StandardIEEE 802.3af/at (PoE+)
PoE Input Voltage37V–57V DC
Power Output5V / 5A Continuous
Power Interfaces12V, 5V, 3.3V, GND
GPIO40-Pin GPIO Pass-Through Header
Main ControllerESP32-P4NRW32
Flash Memory16MB
ROM128KB (HP) + 16KB (LP)
Cooling CompatibilitySupports Official Raspberry Pi 5 Heatsink
Operating Temperature0°C to +50°C
Storage Temperature-10°C to +70°C
Form FactorRaspberry Pi HAT
Dimensions56.6 × 88 mm
Weight41g

Frequently Asked Questions

What SSD types are compatible with the Elecrow Pi Power M.2 NVMe and PoE+ HAT?

This HAT supports M-Key M.2 NVMe SSDs exclusively, specifically compatible with 2230, 2242, 2260, and 2280 form factors. It leverages the Raspberry Pi 5's native PCIe interface for high-speed data transfer, significantly improving storage performance compared to traditional microSD cards for demanding applications.

How does the PoE+ functionality work, and what are its power capabilities?

The HAT is IEEE 802.3af/at compliant, allowing both power and network data to be delivered over a single Ethernet cable. It accepts a 37V-57V DC input and provides a stable 5V/5A continuous output to the Raspberry Pi 5, along with additional 12V, 5V, and 3.3V power rails for peripheral devices.

Is the Elecrow Pi Power HAT compatible with the Raspberry Pi 5's official Active Cooler?

Yes, the Elecrow Pi Power M.2 NVMe and PoE+ HAT is designed to be fully compatible with the official Raspberry Pi 5 Active Cooler. Its compact HAT form factor ensures that adequate clearance is maintained, allowing for efficient thermal management alongside high-speed storage and PoE+ capabilities.

What is the role of the integrated ESP32-P4NRW32 controller on this HAT?

The integrated ESP32-P4NRW32 controller, featuring 16MB Flash memory, acts as the main controller for the HAT. It manages the board's various functions, including power distribution, PoE+ negotiation, and potentially advanced features, ensuring stable and efficient operation alongside the Raspberry Pi 5's native PCIe interface for NVMe storage.

Package Includes

  • 1 x Elecrow Pi Power M.2 NVMe & PoE+ Hat for Raspberry Pi 5
  • 2 x CM2*4 screw
  • 8 x CM2.5*4 screw
  • 4 x M2.5*16 double-pass copper pillar

Additional Information

Weight 0.041 kg
Dimensions 8.8 × 5.66 cm

Related Products

Out of Stock

Waveshare PCIe to M.2 E Key HAT+ (D) for Raspberry Pi 5

709.00
Learn More
Out of Stock

Waveshare 2-Ch GMSL Camera HAT for Raspberry Pi 5 & Jetson Orin

8,069.00
Learn More
Out of Stock

Argon ONE V5 Quad M.2 NVMe Expansion Board Gen 2.0

3,989.00
Learn More
Out of Stock

Raspberry Pi AI HAT+ with Hailo 8L (13 TOPS)

7,839.00
Learn More
Out of Stock

52Pi P33 M.2 NVMe PoE+ HAT for Raspberry Pi 5

4,149.00
Learn More
Out of Stock

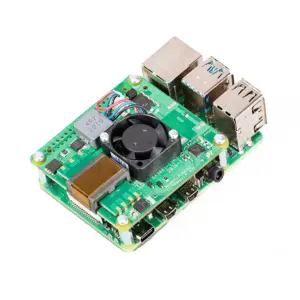

Official Raspberry Pi PoE+ HAT for Pi 3B+/Pi 4

2,359.00
Learn More
Out of Stock

Raspberry Pi M.2 HAT+ M Key

1,609.00
Learn More
Out of Stock

Argon Industria PCIe M.2 Single NVMe Board

1,259.00
Learn More
Out of Stock

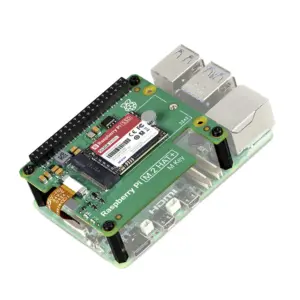

Raspberry Pi 512GB NVMe SSD Kit with M.2 HAT+
