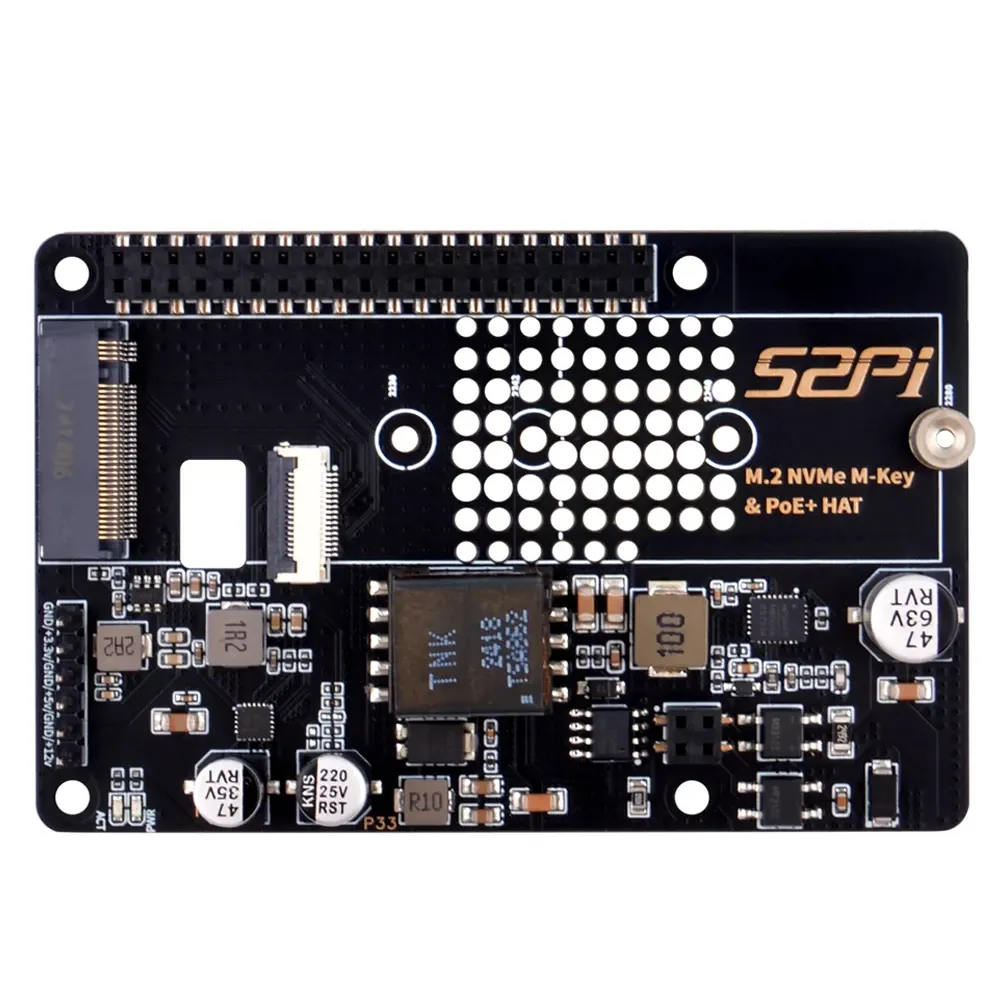

52Pi P33 M.2 NVMe PoE+ HAT for Raspberry Pi 5

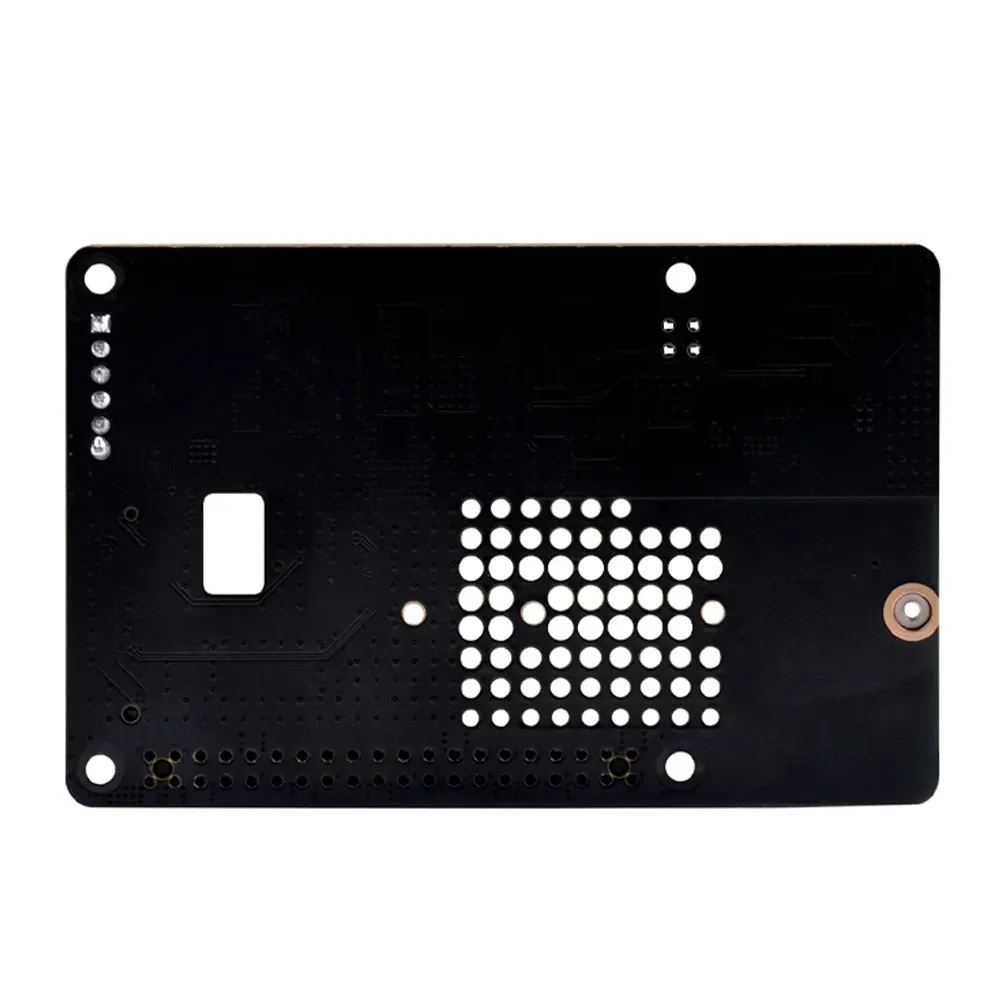

52Pi P33 M.2 NVMe PoE+ HAT for Raspberry Pi 5 - Image 2
SKU: SBCD-0846
📋 GST Invoice Available

52Pi P33 M.2 NVMe PoE+ HAT for Raspberry Pi 5

₹4,149.00 (Inclusive of all taxes)
Out of Stock

The 52Pi P33 M.2 NVMe PoE+ HAT for Raspberry Pi 5 is an advanced expansion board providing both Power over Ethernet (802.3at) and high-speed M.2 NVMe SSD storage capabilities. It simplifies cabling and significantly boosts data transfer rates, making it ideal for demanding Raspberry Pi 5 applications.

Features

  • Integrates Power over Ethernet (PoE+) for simplified network power delivery to your Raspberry Pi 5, adhering to 802.3at standard.
  • Expands storage with a high-speed M.2 NVMe M-key slot, supporting SSD sizes from 2230 up to 2280 for enhanced data performance.
  • Delivers a stable 5.1V/4.5A power output, ensuring reliable operation for the Raspberry Pi 5 and connected peripherals.
  • Designed for seamless plug-and-play integration with the Raspberry Pi 5’s PCIe interface, maximizing compatibility and throughput.

Out of stock

Description

The 52Pi P33 M.2 NVMe 2280 PoE+ HAT is a versatile expansion board meticulously engineered for the Raspberry Pi 5. This accessory elegantly combines two critical functionalities: robust Power over Ethernet (PoE+) support and a high-performance M.2 NVMe SSD slot. By leveraging the 802.3at PoE+ standard, the HAT enables your Raspberry Pi 5 to receive both power and data over a single Ethernet cable, thereby reducing cable clutter and simplifying deployment in various environments, from embedded systems to server racks.

Featuring an M.2 M-Key slot, the P33 HAT accommodates a broad range of NVMe SSD form factors, including 2230, 2242, 2260, and 2280. This capability allows for a dramatic increase in storage performance compared to traditional microSD cards, making the Raspberry Pi 5 suitable for more intensive applications such as high-speed NAS builds, media servers, or edge computing projects requiring rapid data access. The HAT’s design focuses on stable power delivery and efficient integration via the Raspberry Pi 5’s dedicated PCIe interface, ensuring optimal performance and reliability for your projects.

Key Features

  • Power over Ethernet (PoE+) Support: Powers your Raspberry Pi 5 directly via an 802.3at compatible PoE++ switch or injector, streamlining power and data cabling.
  • M.2 NVMe SSD Expansion: Features a built-in M-Key slot for installing high-speed NVMe SSDs (2230, 2242, 2260, 2280), dramatically boosting storage performance.
  • Stable Power Output: Provides a reliable 5.1V at 4.5A output, capable of powering the Raspberry Pi 5 and connected peripherals for demanding tasks.
  • Plug-and-Play PCIe Compatibility: Engineered for seamless integration with the Raspberry Pi 5's dedicated PCIe interface, ensuring maximum data throughput.
  • Enhanced System Performance: Enables the Raspberry Pi 5 to boot and run from an NVMe SSD, offering superior read/write speeds over microSD cards.
  • Simplified Cabling: Reduces the need for a separate USB-C power adapter by utilizing PoE+, leading to a cleaner and more organized setup.
  • Safety Design: Incorporates safety guidelines, warning against simultaneous USB-C power connection when PoE is active to prevent conflicts.

Applications

  • High-speed Network Attached Storage (NAS) builds with Raspberry Pi 5.
  • Compact servers and data logging systems requiring fast, reliable storage.
  • Edge AI and machine learning projects needing quick data access for inference.
  • Media centers and streaming hubs with enhanced storage capabilities.
  • Embedded systems requiring robust storage and simplified power delivery via Ethernet.

Technical Specifications

Board TypeRaspberry Pi 5 HAT
Storage InterfacePCIe to M.2 NVMe (M-Key)
Supported SSD Sizes2230, 2242, 2260, 2280
Power MethodEthernet PoE+ (802.3at)
Output Voltage5.1V
Output Current4.5A
CompatibilityRaspberry Pi 5 only
Dimensions8.8 x 5.6 x 1.5 cm (88 x 56 x 15 mm)
Weight0.033 kg (33g)

Frequently Asked Questions

What specific PoE+ standard does the 52Pi P33 HAT support?

The 52Pi P33 HAT supports the 802.3at Power over Ethernet (PoE+) standard. This enables your Raspberry Pi 5 to receive up to 25.5W of power along with network data via a single Ethernet cable, simplifying cabling in deployments. Ensure your switch or injector is 802.3at compliant.

What NVMe SSD form factors are compatible with this HAT?

This HAT features an M.2 M-key slot designed for a wide range of NVMe SSDs. It supports form factors including 2230, 2242, 2260, and 2280. This flexibility allows users to select an SSD that best fits their project's performance and capacity requirements for the Raspberry Pi 5.

Is a separate power supply still required when using the PoE+ HAT?

No, when the PoE+ HAT is actively powered via an 802.3at compliant Ethernet source, a separate USB-C power supply for the Raspberry Pi 5 is not required. In fact, it is explicitly advised *not* to connect a USB-C power supply simultaneously to prevent potential power conflicts.

How does the included active cooler integrate with the Raspberry Pi 5?

The active cooler included with the 52Pi P33 HAT is designed to sit directly on the Raspberry Pi 5's CPU. It uses a fan and heatsink assembly to efficiently dissipate heat, ensuring the Raspberry Pi 5 maintains optimal operating temperatures, especially during high-load operations or when utilizing the NVMe SSD.

What are the performance benefits of using an NVMe SSD over a microSD card on the Raspberry Pi 5?

Utilizing an NVMe SSD via the PCIe interface offers significantly higher read/write speeds and I/O operations per second (IOPS) compared to typical microSD cards. This dramatically improves boot times, application loading, and overall system responsiveness, making the Raspberry Pi 5 more capable for data-intensive tasks like database hosting or video processing.

Package Includes

  • 1 x 52Pi P33 M.2 NVMe 2280 PoE+ HAT Extension Board for Raspberry Pi 5
  • 1 x Raspberry Pi Active Cooler
  • 1 x 8.5 * 40mm PCIe FFC cable
  • 4 x M2.5 * 19 mm Double-pass copper pillars
  • 8 x M2.5 * 4 mm Flat head screws
  • 1 x 2.54 Connector Socket 2 * 2P
  • 3 x M2/1.5+5 Hard drive copper pillars
  • 3 x M2 Flat head screws
  • 1 x 40 Pin heightened pin header
  • 1 x Screwdriver

Additional Information

Weight 0.033 kg
Dimensions 8.8 × 5.6 × 1.5 cm
