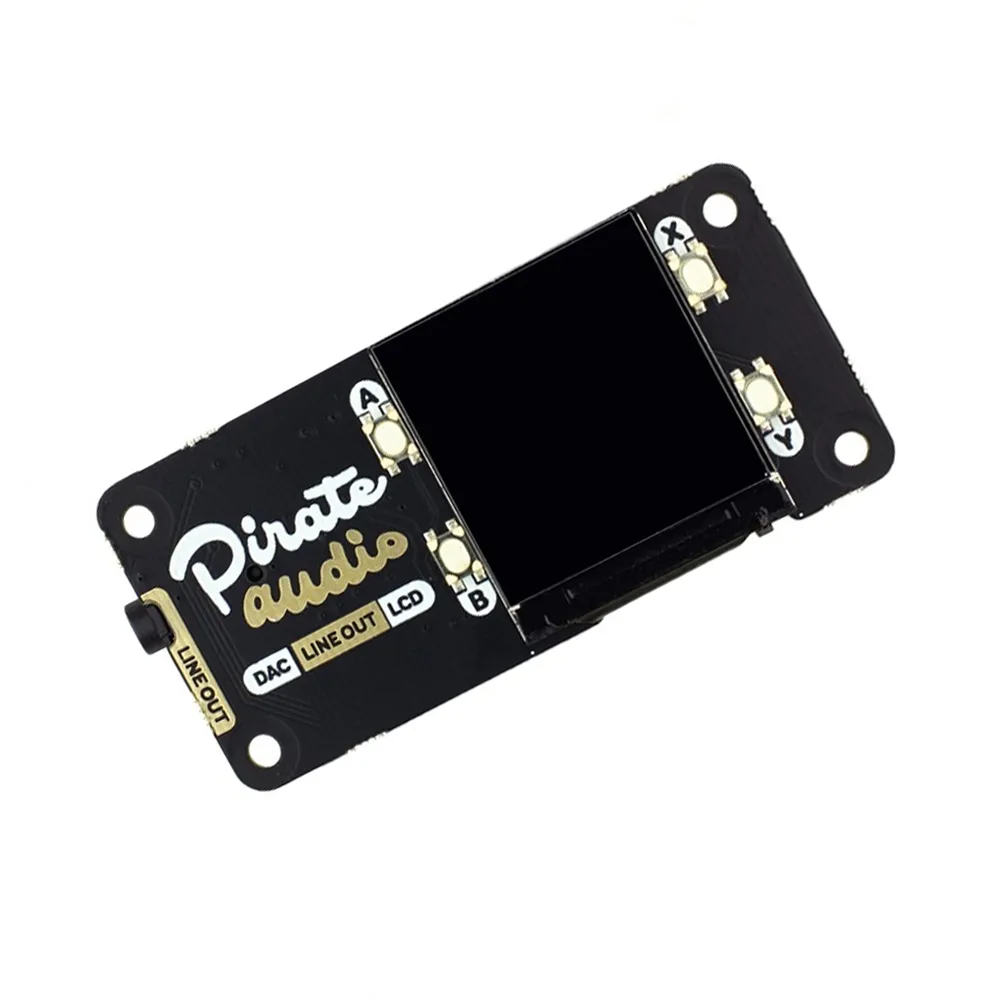

Pimoroni Pirate Audio: Line-out HAT for Raspberry Pi

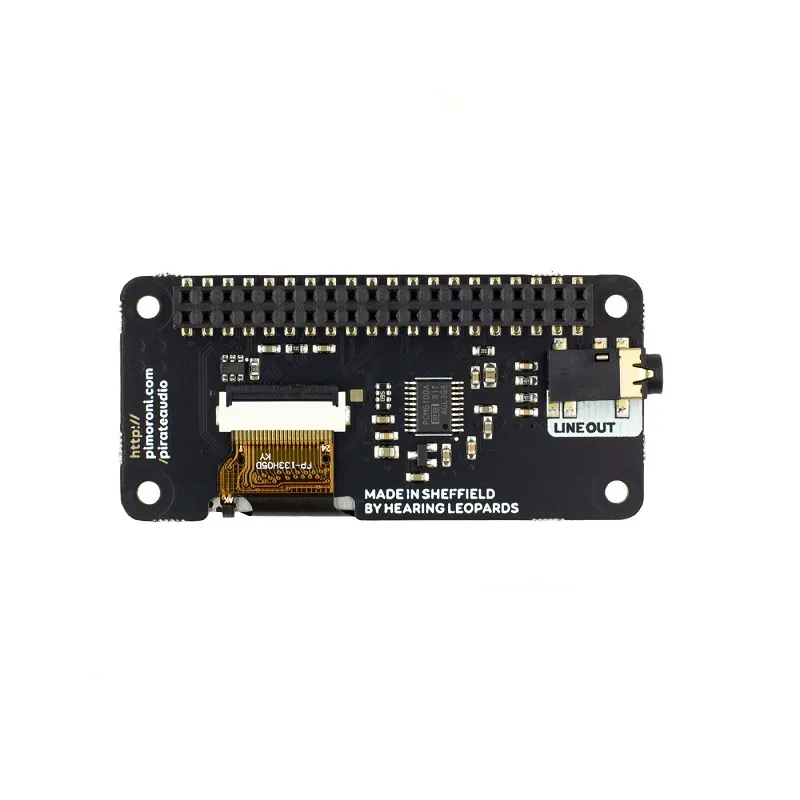

Pimoroni Pirate Audio: Line-out HAT for Raspberry Pi - Image 2

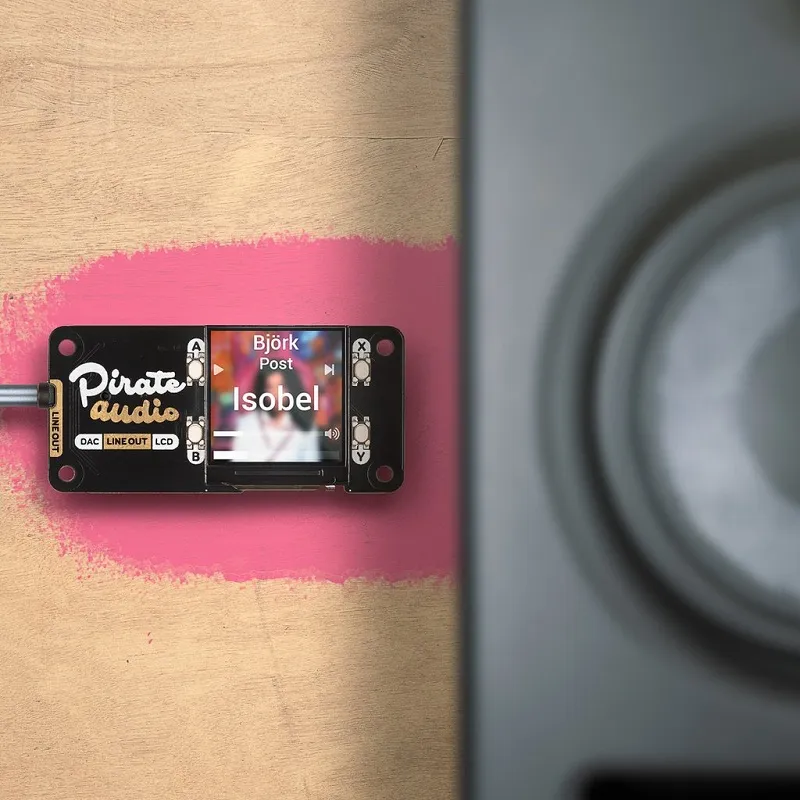

Pimoroni Pirate Audio: Line-out HAT for Raspberry Pi - Image 3
SKU: SBCD-1433
📋 GST Invoice Available

Pimoroni Pirate Audio: Line-out HAT for Raspberry Pi

₹2,489.00 (Inclusive of all taxes)
Out of Stock

This Pimoroni Pirate Audio Line-out HAT provides crisp 24-bit/192KHz digital audio via a 3.5mm stereo jack, enabling high-quality audio output for any 40-pin Raspberry Pi. It integrates a PCM5100A DAC and is fully assembled for immediate use with hi-fi amplifiers or powered speakers.

Features

  • High-fidelity 24-bit/192KHz audio output via PCM5100A DAC over I2S.
  • Standard 3.5mm stereo line-out jack for easy connection to external audio systems.
  • Fully assembled Mini HAT format, ready to plug into any 40-pin Raspberry Pi model.
  • Integrated 1.3″ IPS colour LCD and four tactile buttons for intuitive control and status display.
  • Seamless integration with Raspberry Pi audio libraries and custom Pirate Audio software.

Out of stock

Description

The Pimoroni Pirate Audio Line-out HAT transforms your Raspberry Pi into a high-quality digital audio source, perfect for upgrading existing hi-fi amplifiers, powered monitors, or custom audio projects. Equipped with a PCM5100A DAC chip, this board delivers pristine 24-bit/192KHz audio, ensuring exceptional sound clarity whether you’re streaming from services like Spotify or playing local audio files in various formats.

Designed as part of the versatile Pirate Audio range, this HAT goes beyond simple audio output. It features a vibrant 1.3-inch IPS colour LCD with a 240x240px resolution for displaying album art or track information, alongside four tactile buttons that provide convenient playback and menu control. Its Mini HAT format and fully assembled design ensure a straightforward setup, compatible with all 40-pin header Raspberry Pi models.

For developers and makers, the board offers flexible configuration options for the DAC and buttons, allowing for deep integration into custom applications. With dedicated software support from Pimoroni, setting up your digital audio system is made simple, providing a robust platform for advanced audio projects and media centers.

Key Features

  • Line-level digital audio output (24-bit / 192KHz) over I2S interface.
  • Integrated PCM5100A DAC chip for high-fidelity audio conversion.
  • Standard 3.5mm stereo audio jack for versatile connectivity.
  • 1.3" IPS colour LCD (240x240px) with ST7789 driver for visual feedback.
  • Four programmable tactile buttons for intuitive control.
  • Compact Mini HAT-format board design.
  • Fully-assembled, ready for immediate use.
  • Compatible with all Raspberry Pi models featuring a 40-pin GPIO header.

Applications

  • Upgrading existing Hi-Fi amplifiers and speakers with digital audio.
  • Building Raspberry Pi-based digital audio players (DAPs).
  • Creating custom streaming audio solutions with services like Spotify.
  • Developing embedded media centers with high-quality audio output.
  • Integrating into home automation systems for audio playback.

Technical Specifications

Audio Output Port3.5mm Stereo Jack
DAC ChipPCM5100A
Audio Resolution24-bit / 192KHz
Display1.3" IPS Colour LCD (240x240px, ST7789)
Input/Output InterfaceI2S (Audio), SPI (Display), GPIO (Buttons)
CompatibilityAll Raspberry Pi models with 40-pin GPIO
Dimensions (L x W)65 x 30.5 mm

Frequently Asked Questions

How do I enable the DAC on the Pirate Audio Line-out HAT?

The DAC requires configuring `dtoverlay=hifiberry-dac` in `/boot/config.txt`. Additionally, the DAC enable pin (BCM 25) must be driven high by adding `gpio=25=op,dh` to the same configuration file. This ensures proper initialization and functionality for the PCM5100A audio chip, allowing for high-quality sound output.

What software support is available for the Pirate Audio HAT?

Pimoroni provides a custom Pirate Audio software installer and libraries, simplifying setup and integration. It's compatible with standard Raspberry Pi OS audio stacks and supports various audio players. The software handles display management, button inputs, and DAC interaction for a streamlined user experience, enhancing project development.

Can this HAT be used with any Raspberry Pi model?

Yes, the Pirate Audio Line-out HAT is designed to be compatible with all Raspberry Pi models that feature a standard 40-pin GPIO header. This includes the Raspberry Pi 2, 3, 4, and 5, as well as the Pi Zero series, ensuring broad platform support for your audio projects and designs.

What is the purpose of the integrated IPS display and tactile buttons?

The 1.3" IPS color LCD (240x240px) provides visual feedback, such as album art, track information, or system status. The four tactile buttons enable direct control over audio playback (play/pause, next/previous, volume) and menu navigation, enhancing the user interface for standalone audio applications without requiring external input devices.

Package Includes

  • 1 x Pimoroni Pirate Audio: Line-out HAT for Raspberry Pi

Additional Information

Weight 0.018 kg
Dimensions 6.5 × 3.05 × 1 cm

Related Products

Out of Stock

Waveshare ESP32-S3 3.5-Inch Capacitive Touch Display Development Board Type B

4,919.00
Learn More
Out of Stock

Waveshare ESP32-P4 Wi-Fi 6 4.3" Touch Dev Board - 32MB PSRAM/Flash

4,279.00
Learn More
Out of Stock

Waveshare ESP32-S3 1.8-Inch Knob Display Development Board w/ CNC Case

6,609.00
Learn More
Out of Stock

Elecrow 10.1" IPS 1280x800 Capacitive Touch Monitor

9,339.00
Learn More
Out of Stock

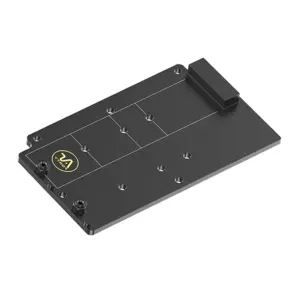

Argon ONE V5 Quad M.2 NVMe Expansion Board Gen 3.0
