Waveshare RP2350B 4-Inch 480x480 IPS Display Dev Board w/ Touch
The Waveshare RP2350 4-inch IPS Display Development Board integrates a high-resolution 480×480 touchscreen with the powerful dual-core RP2350B MCU, offering a complete platform for embedded HMI, wearable, and IoT display projects with USB drag-and-drop programming.
Features
- 4-Inch IPS Touch Display: Features a vivid 480×480 resolution, 65K color screen with optional 5-point capacitive touch via I²C for intuitive user interfaces.
- Dual-Core RP2350B MCU: Combines ARM Cortex-M33 and Hazard3 RISC-V cores running up to 150 MHz, backed by 520 KB SRAM and 16 MB flash for demanding embedded applications.
- Rich Onboard Peripherals: Includes a 6-axis IMU (accelerometer & gyroscope), RTC chip, TF card slot, and USB Type-C with host/device support for comprehensive project development.
- Flexible Integration: Offers dual wiring terminal blocks (bottom or back) and a power header for 3.7V LiPo battery support, enabling easy DIN-rail mounting and low-power designs.
Out of stock

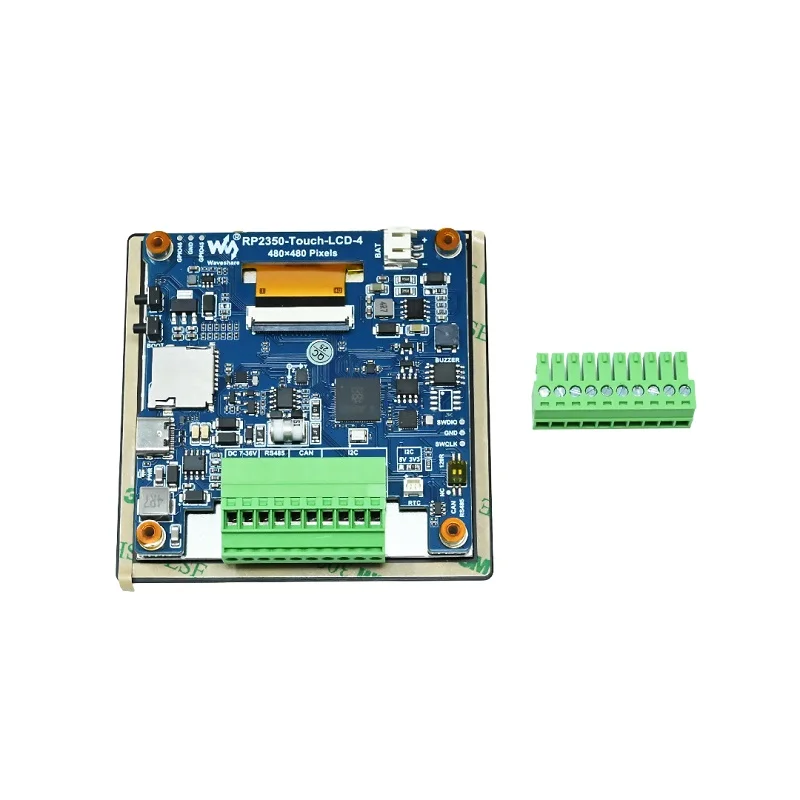

This Waveshare development board is engineered as a compact, all-in-one solution for creating sophisticated graphical user interfaces and embedded systems. At its core is the RP2350B microcontroller, a dual-architecture chip featuring both an ARM Cortex-M33 and a Hazard3 RISC-V core, capable of operating at speeds up to 150 MHz. This processing power, combined with 520 KB of SRAM and 16 MB of onboard flash, provides the headroom needed for complex display rendering, sensor data processing, and application logic.

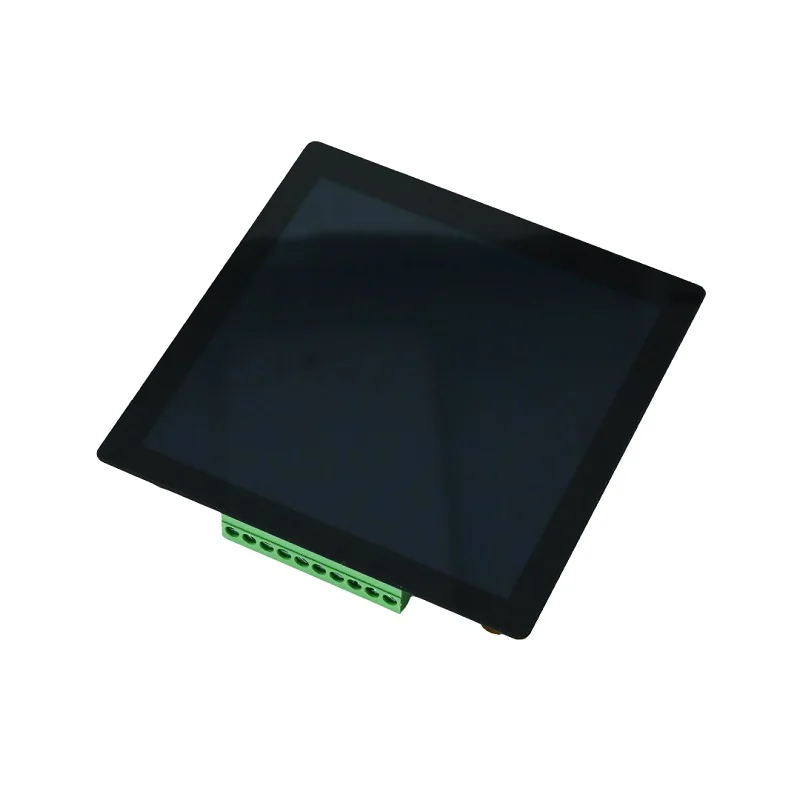

The board’s 4-inch IPS display delivers sharp 480×480 resolution with 65K colors, directly connected via an integrated RGB interface. For interactive projects, the optional capacitive touch overlay provides a responsive, multi-touch input method communicated over I²C. Beyond the display, the board is equipped with a suite of peripherals including a 6-axis inertial measurement unit (IMU) for motion sensing, a real-time clock (RTC) for timekeeping, and a microSD (TF) card slot for data logging or asset storage. The USB Type-C port facilitates both power delivery and drag-and-drop firmware programming, streamlining the development workflow from prototype to deployment.
Additional Information
| Weight | 0.077 kg |
|---|---|
| Dimensions | 8.3 × 8.3 cm |
