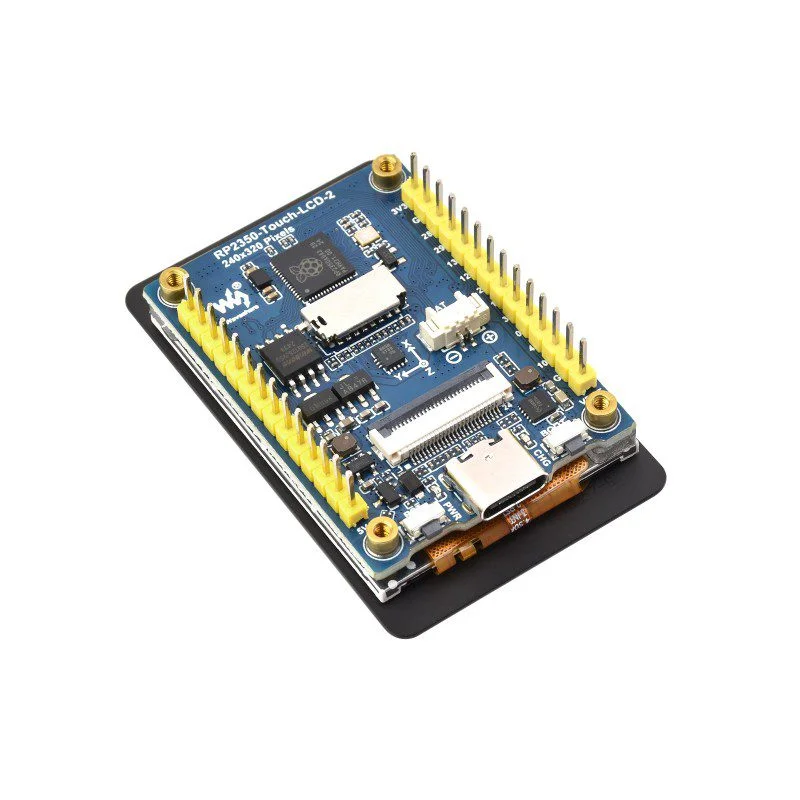

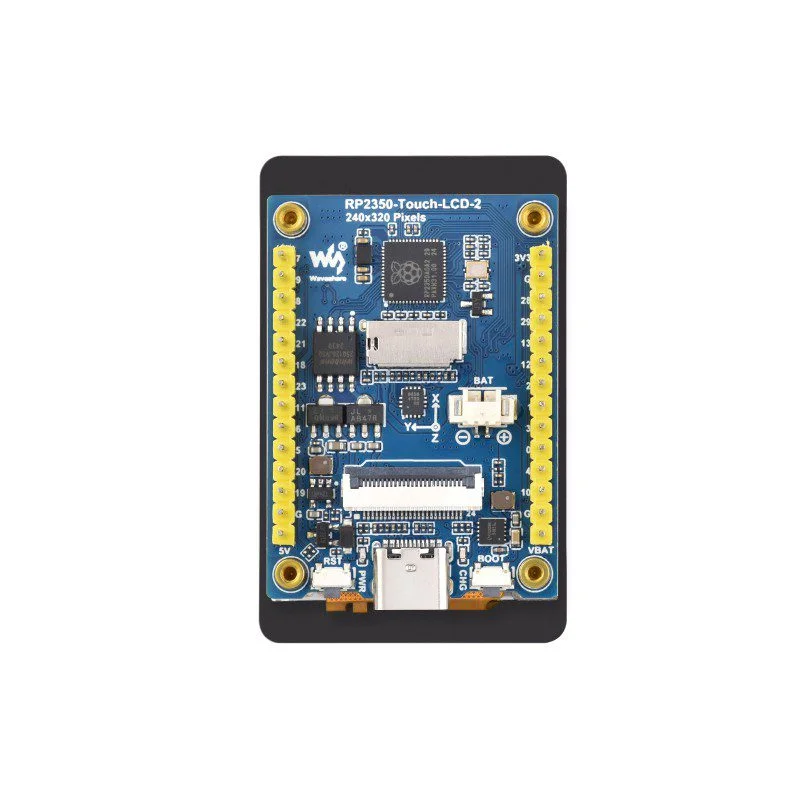

Waveshare RP2350 2-Inch Capacitive Touch Display Development Board
The Waveshare RP2350 Development Board integrates a dual-core Arm Cortex-M33 and RISC-V processor with a 2-inch IPS capacitive touch display. It supports Arduino IDE and MicroPython for rapid prototyping of embedded GUI and computer vision applications, powered via USB-C.
Features
- Dual-Core Heterogeneous Processing: Combines a 150 MHz Arm Cortex-M33 with a Hazard3 RISC-V core for efficient task partitioning and real-time control.

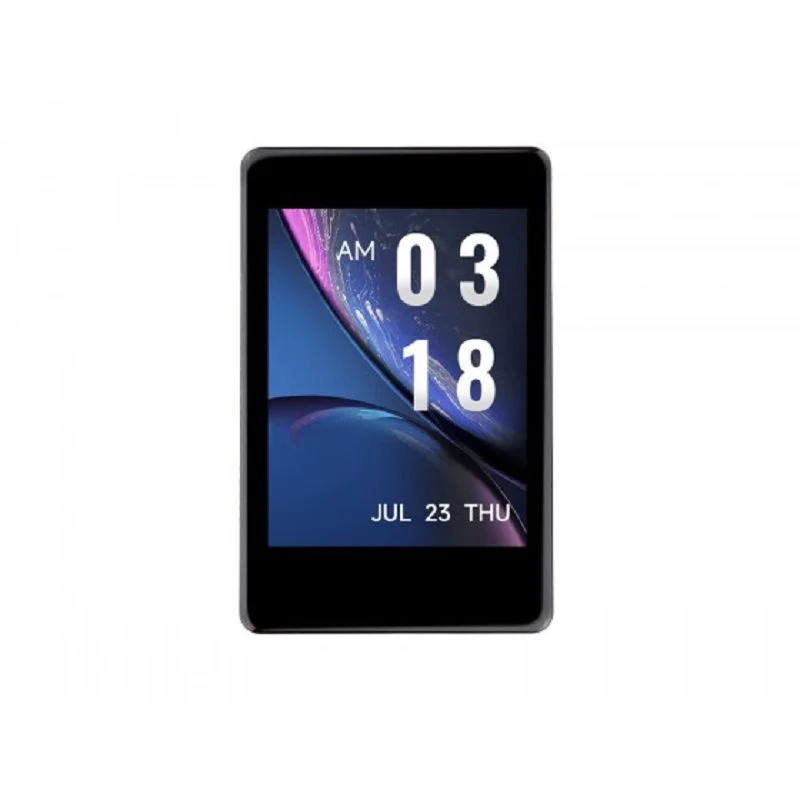

- Onboard 2-Inch IPS Touch Display: Features a 240×320 resolution, 262K color capacitive touchscreen for intuitive GUI development without external hardware.
- Camera Interface & Expansion: Directly supports OV2640/OV5640 camera modules for image capture and video streaming, alongside a TF card slot for data logging.
- Integrated Sensor Suite: Includes a QMI8658 6-axis IMU (accelerometer + gyroscope) and temperature sensor for motion and environmental sensing projects.
- Flexible I/O & Low-Power Modes: Offers 22 GPIOs, multiple serial interfaces (SPI, I2C, UART), and sleep/dormant modes for battery-operated portable IoT devices.
Out of stock
The Waveshare RP2350 is a compact, feature-rich MCU development board centered around the Raspberry Pi-designed RP2350 microcontroller. Its unique dual-architecture pairs an Arm Cortex-M33 for application tasks with a RISC-V core for custom peripheral emulation via 12 programmable I/O (PIO) state machines, enabling high-speed, deterministic I/O control without taxing the main CPU.
Designed for embedded GUI and vision-based IoT applications, the board comes with a pre-integrated 2-inch capacitive touch IPS display, a camera interface compatible with popular OV series sensors, and a lithium battery management circuit. This integration drastically reduces external wiring and component count, accelerating development cycles for smart wearables, handheld instruments, and interactive control panels.
Additional Information
| Weight | 0.025 kg |
|---|---|
| Dimensions | 5.7 × 3.7 cm |
