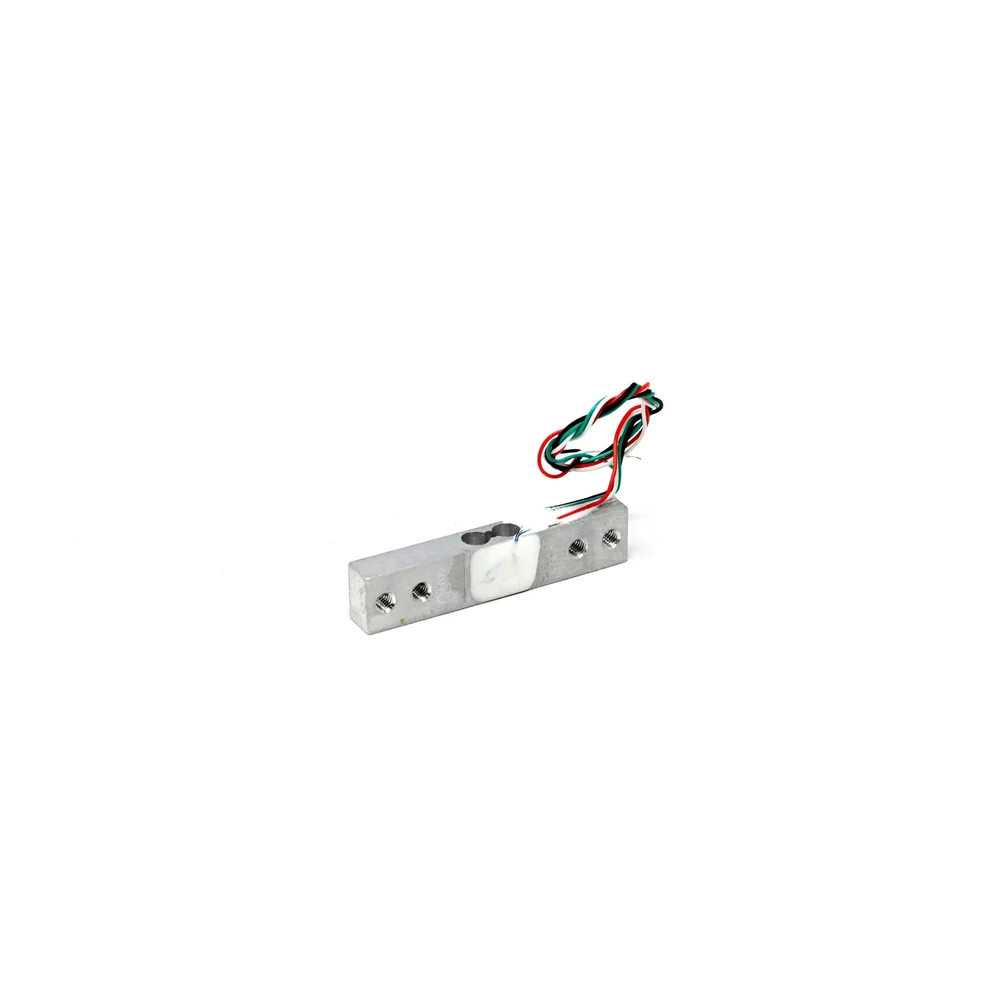

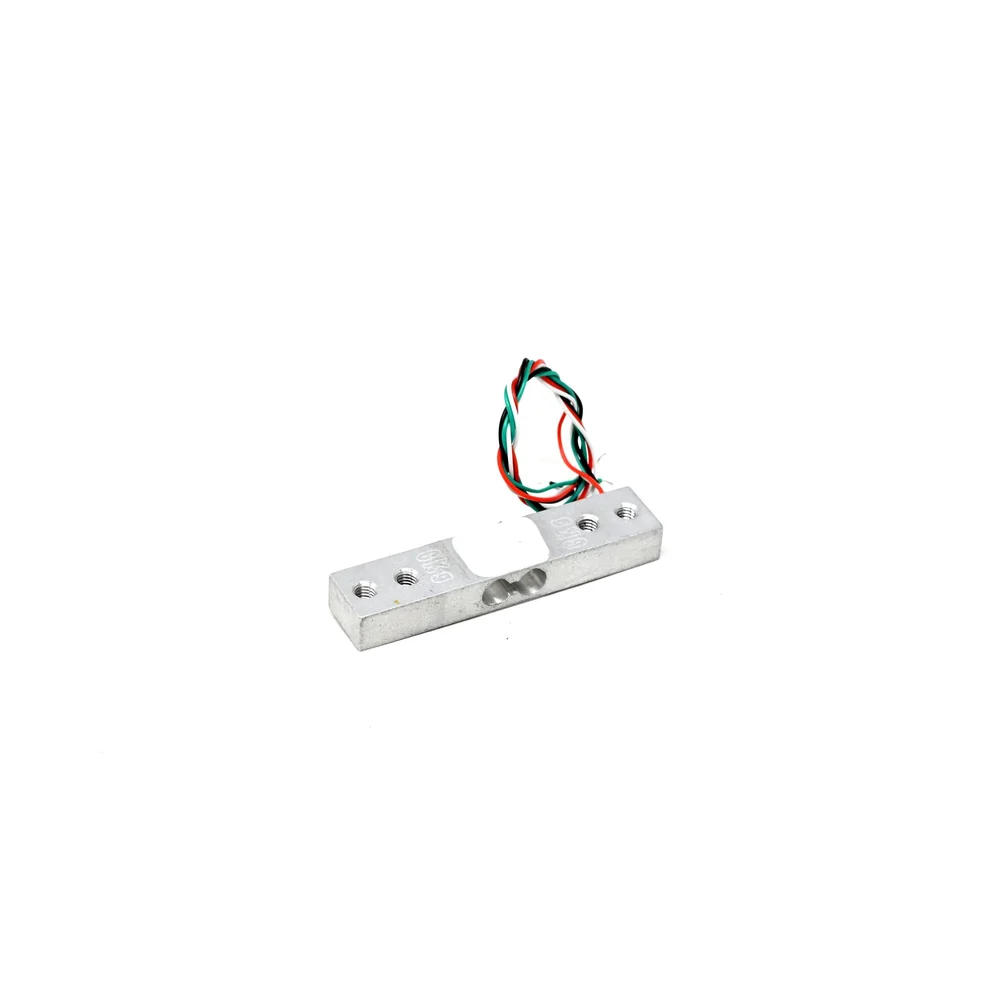

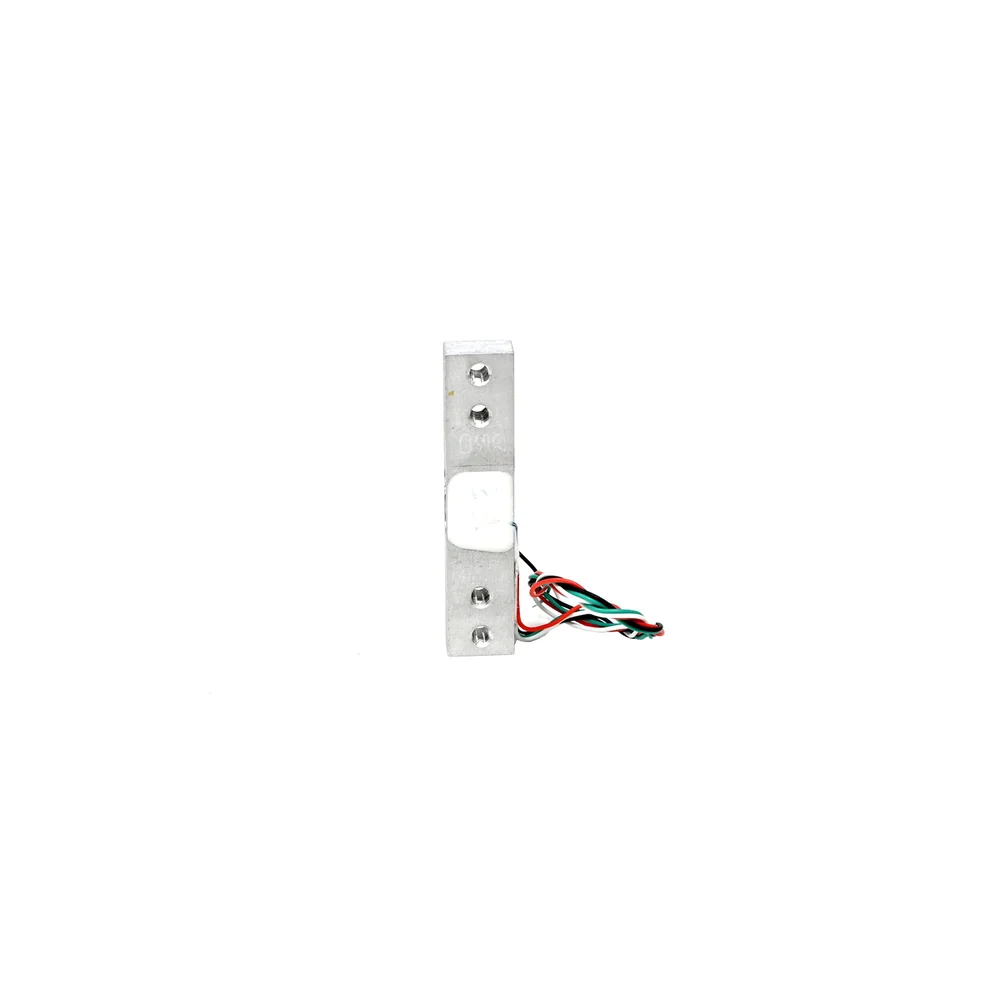

Phaeton CZL-611CF 6KG Aluminum Load Cell Sensor - Screw-Fastened
The Phaeton CZL-611CF is a 6kg capacity aluminum alloy load cell sensor designed for precise weight measurement applications. Featuring a screw-fastened design for secure mounting, it provides a 1.0±0.1 mV/V output sensitivity compatible with standard instrumentation amplifiers and data acquisition systems.
Features
- 6kg (approx. 13.2 lb) nominal weighing capacity with aluminum alloy construction.
- High output sensitivity of 1.0±0.1 mV/V for accurate signal conditioning.
- Screw-fastened mechanical design ensures robust and stable installation.
- Standard 4-wire configuration (Red, Green, Black, White) for bridge completion.
- Compact form factor ideal for integration into scales, industrial equipment, and force measurement rigs.
Out of stock
The CZL-611CF is a resistive strain gauge-based load cell engineered for precise force-to-electrical signal conversion. Its aluminum alloy structure provides a favorable strength-to-weight ratio and elastic deformation characteristics, ensuring linear output proportional to the applied load within its rated capacity.
The sensor employs a full Wheatstone bridge configuration, outputting a millivolt-per-volt (mV/V) signal that requires external amplification, such as an HX711 or INA125, for microcontroller integration (e.g., Arduino, Raspberry Pi, PLCs). The screw-fastened design offers mechanical stability, minimizing off-axis loading errors and ensuring reliable performance in industrial, commercial, and prototyping environments.
Additional Information
| Weight | 0.05 kg |
|---|---|
| Dimensions | 11 × 3 × 3 cm |
