T-Motor Navigator MN601-S KV320 - 2PCS/SET

The MN601-S KV320 is engineered primarily for heavy-lift and enterprise UAV applications such as cargo delivery, agricultural spraying, and aerial surveying. Its 320KV rating provides high torque at lower RPMs, making it ideal for swinging large-diameter propellers (18-24 inches) on 6S to 12S battery systems for efficient, long-endurance flight.

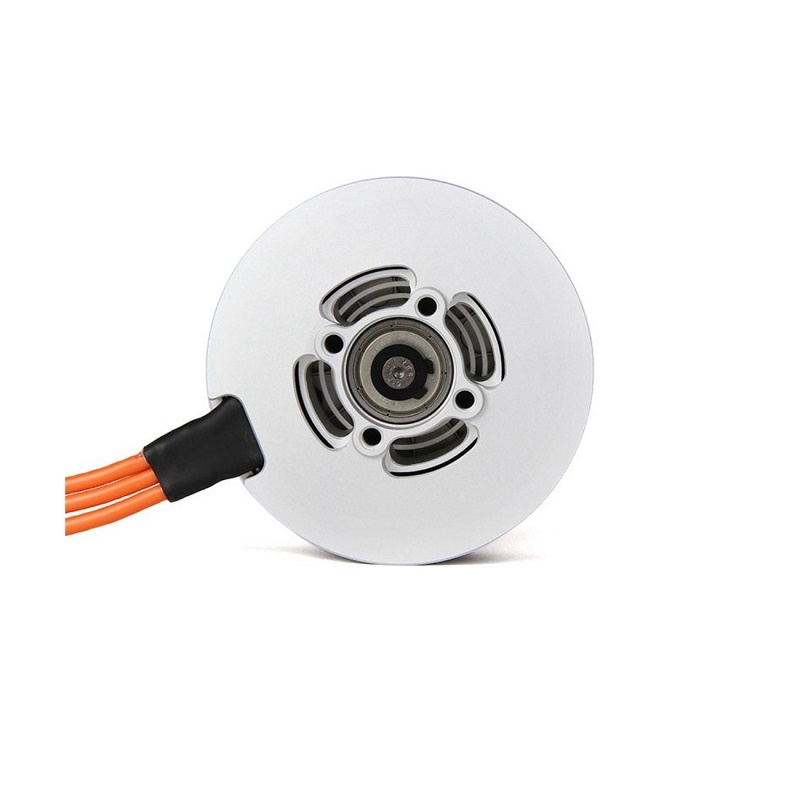

The semi-closed grid structure on the bell cap and base inlet holes creates a balanced airflow path for active cooling while forming a physical barrier against dust, sand, and moisture. This design is crucial for operations in harsh environments like farms or construction sites, protecting the internal magnets, bearings, and windings from foreign object damage and corrosion.

This specialized coating on the stator and windings allows the motor to sustain continuous operation at elevated temperatures without degradation of insulation or magnetic properties. It is essential for high-power, sustained-load scenarios common in heavy-lift drones, preventing thermal runaway and ensuring motor longevity and consistent performance.

Yes, the MN601-S motors use a standard 3-phase brushless interface compatible with high-current ESCs (Electronic Speed Controllers) rated for the motor's expected amp draw. Ensure your ESC supports the motor's voltage range (typically 6S-12S) and that your flight controller's firmware (e.g., ArduPilot, PX4) is configured for large, low-KV motors. Proper soldering of high-gauge motor wires is required.
