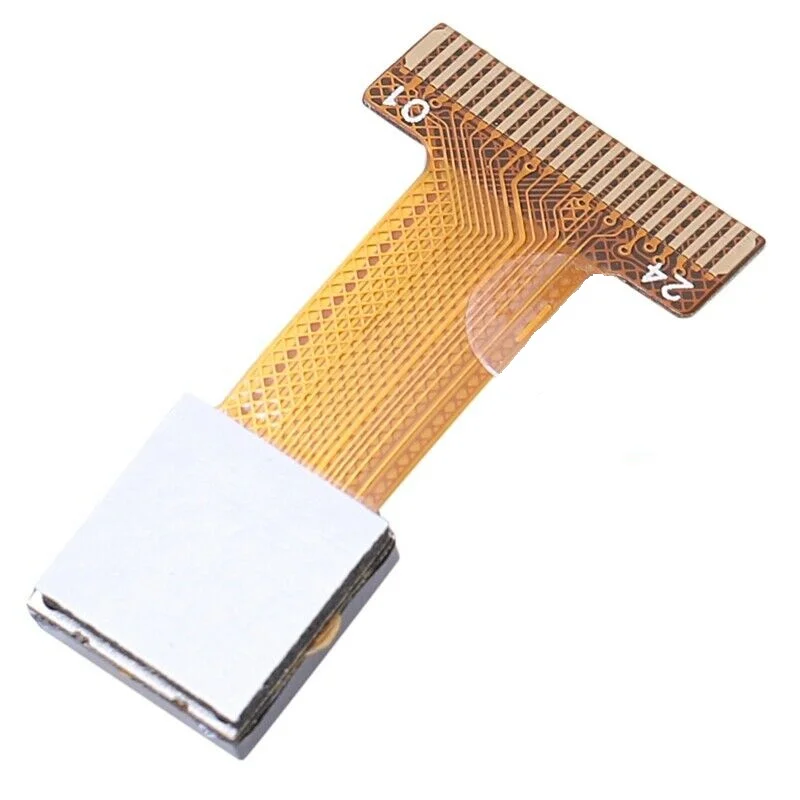

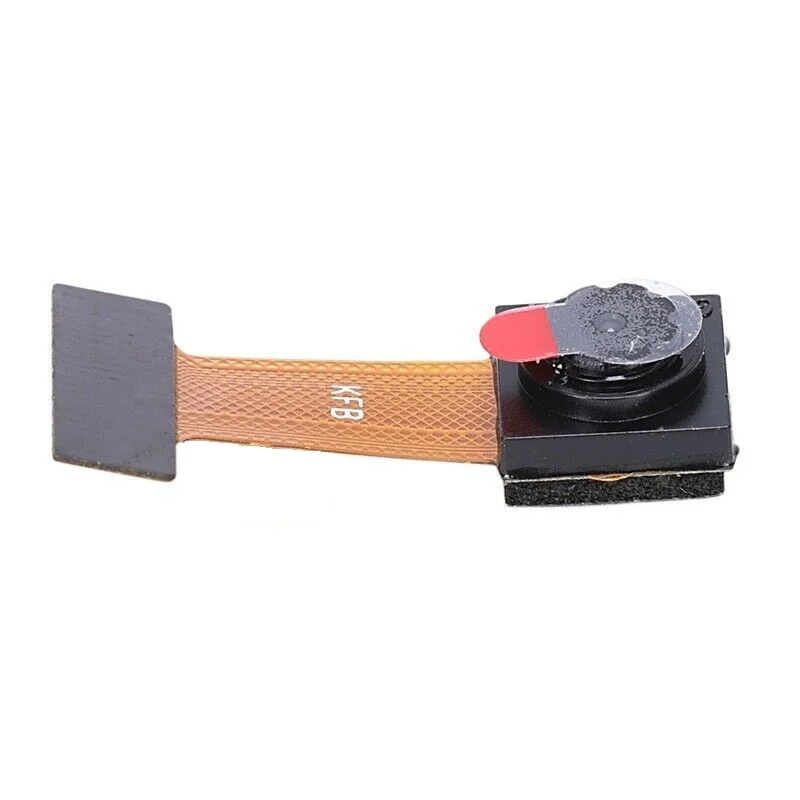

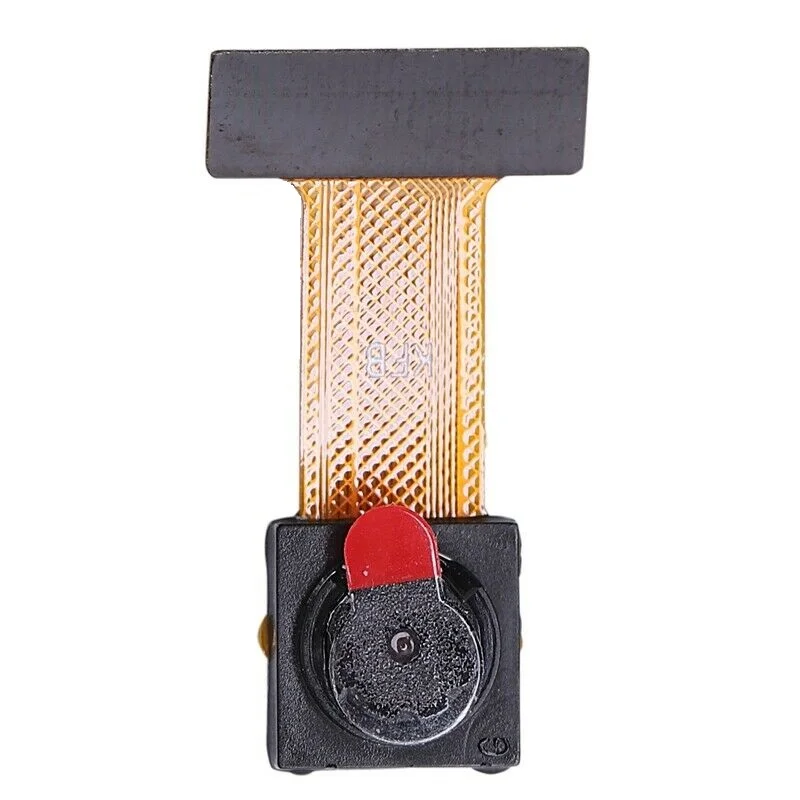

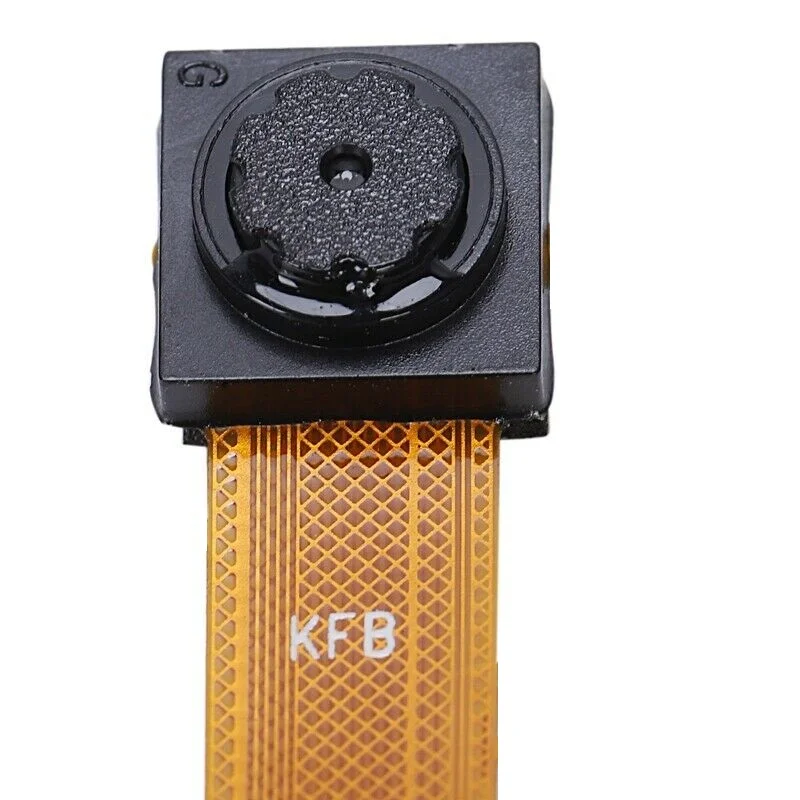

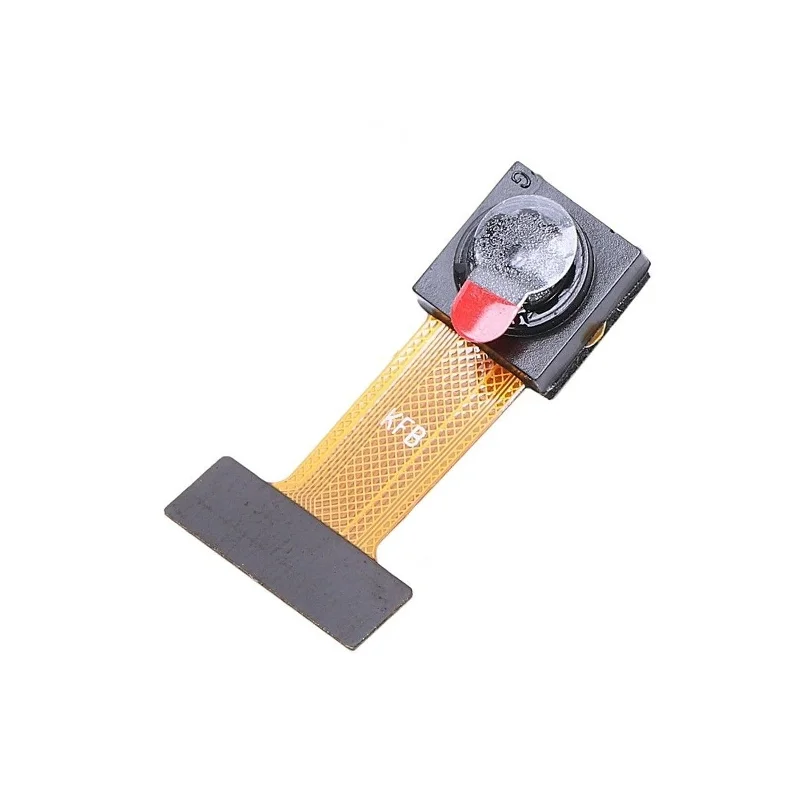

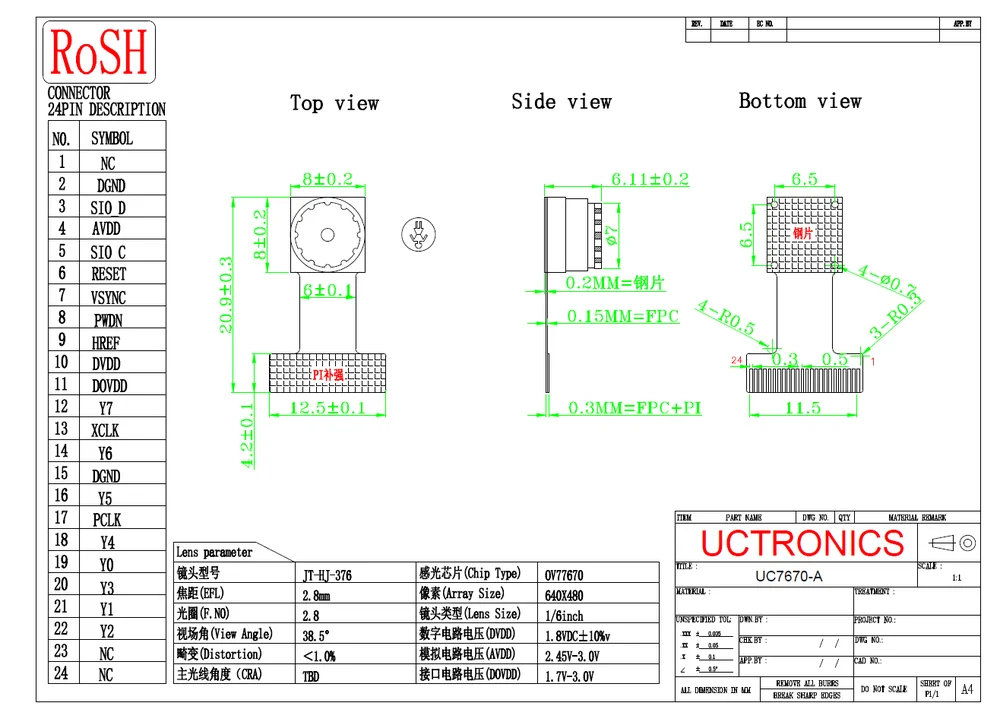

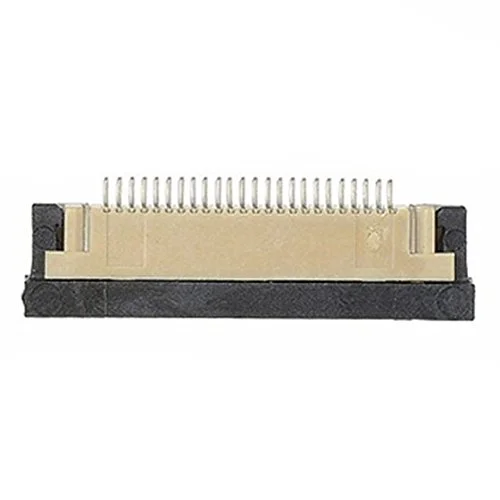

OV7670 0.3MP Camera Module w/ SCCB Connector

Connect the module's SCCB pins (SIO_C and SIO_D) to the Arduino's I2C pins (A4 for SDA, A5 for SCL). Supply 3.3V or 5V (check your module's logic level) to VCC and ground to GND. You will need a library like 'OV7670' or 'Arducam' to handle the SCCB commands for initialization, configure the desired resolution and output format, and then read the image data from the parallel data bus pins. Ensure you connect all necessary data lines (D0-D7) for the chosen output mode.

SCCB (Serial Camera Control Bus) is a two-wire serial bus protocol developed by OmniVision for controlling their image sensors. It is very similar to I2C in timing and structure, using a clock line (SIO_C) and a data line (SIO_D). Most Arduino I2C libraries can communicate with SCCB devices for basic read/write operations, though some advanced SCCB sequences may require bit-banging. For most configuration tasks, you can use the standard Wire library.

The module operates from 2.5V to 3.0V. Typical active power consumption is around 60mW at 15 fps. To minimize current, utilize the sensor's built-in sleep mode via SCCB commands, which reduces current draw to less than 20 microamps. You can also lower the frame rate or resolution through configuration registers. For battery-powered projects, power the sensor through a GPIO pin to enable complete power cycling between capture cycles.

Yes, but it requires additional hardware and firmware. The OV7670 outputs parallel digital data (8-bit) alongside pixel clock (PCLK) and horizontal/vertical sync signals. You need a microcontroller with sufficient GPIOs and speed (like an ESP32) to capture this data stream. Then, you can buffer and convert the RGB565 or YUV data to a format compatible with your LCD driver (e.g., SPI or parallel RGB). Libraries exist for ESP32 to capture OV7670 data and push it to an ILI9341 TFT display.
