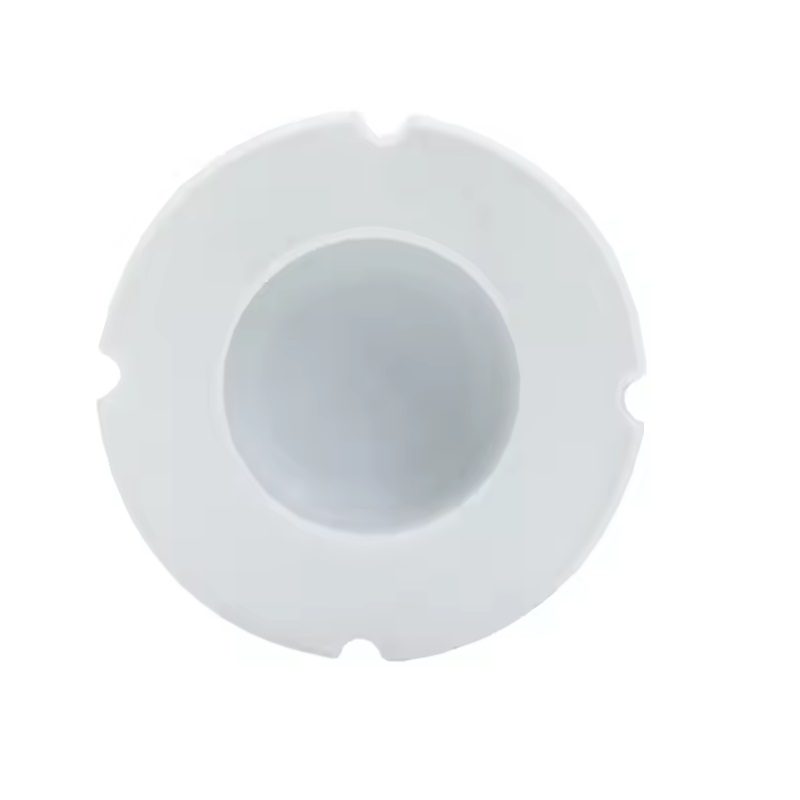

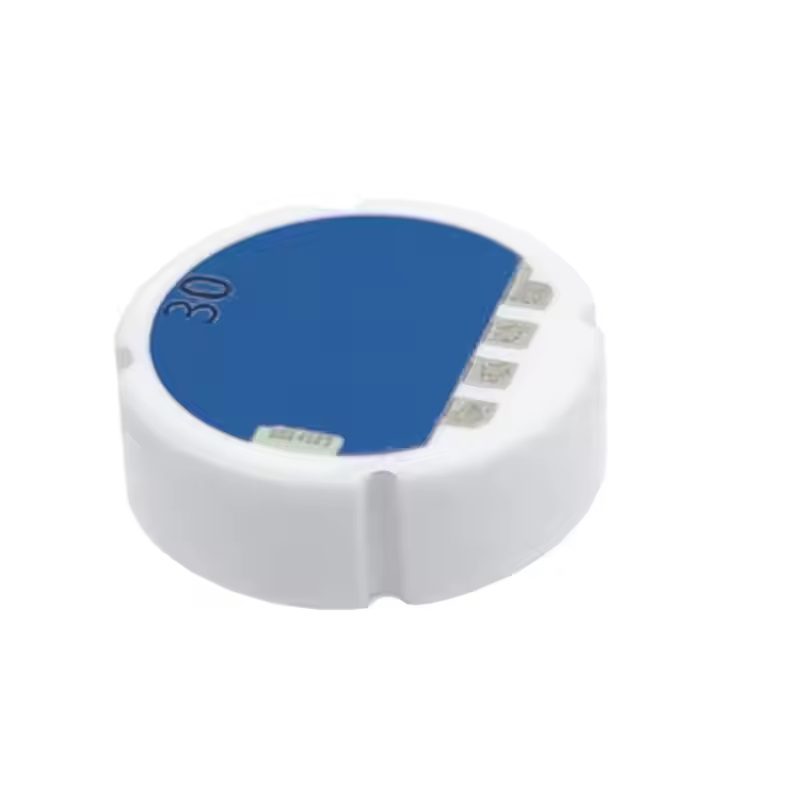

OULD CP-100 Pressure Sensor Module | 0-400 Bar | 4-20mA Output | Ceramic Piezoresistive
The OULD CP-100 is a high-accuracy ceramic piezoresistive pressure sensor module delivering a standard 4-20mA analog output for industrial process control and hydraulic systems. It operates from a wide 9-36V DC supply and is designed for stable performance in demanding environments.
Features
- High-precision ceramic piezoresistive sensing element with ±0.5% FS accuracy.
- Standard 4-20mA two-wire current loop output for robust, long-distance signal transmission.
- Wide operating pressure range of 0 to 400 Bar (Gauge).
- Broad 9-36V DC supply voltage compatibility for industrial power rails.
- Durable construction rated for operation from -40°C to +125°C.
Out of stock
The OULD CP-100 Pressure Sensor Module utilizes a robust ceramic piezoresistive sensing element to provide highly stable and accurate pressure measurements. The 4-20mA current loop output is intrinsically noise-resistant, making it ideal for transmitting signals over extended distances to PLCs, DCS, or data acquisition systems without significant signal degradation.
Engineered for harsh industrial conditions, the module maintains its specified accuracy across a wide temperature range from -40°C to +125°C. Its compact form factor and simple two-wire connection (power and signal combined) facilitate straightforward integration into existing control panels, hydraulic test stands, and process monitoring setups.
Additional Information
| Weight | 0.005 kg |
|---|---|
| Dimensions | 1.8 × 1.8 cm |
