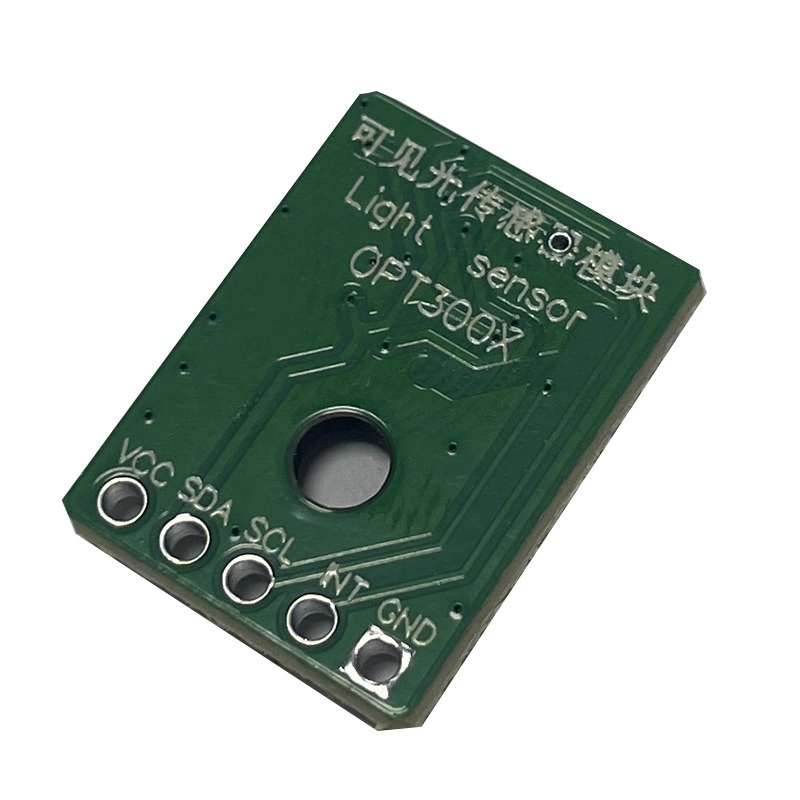

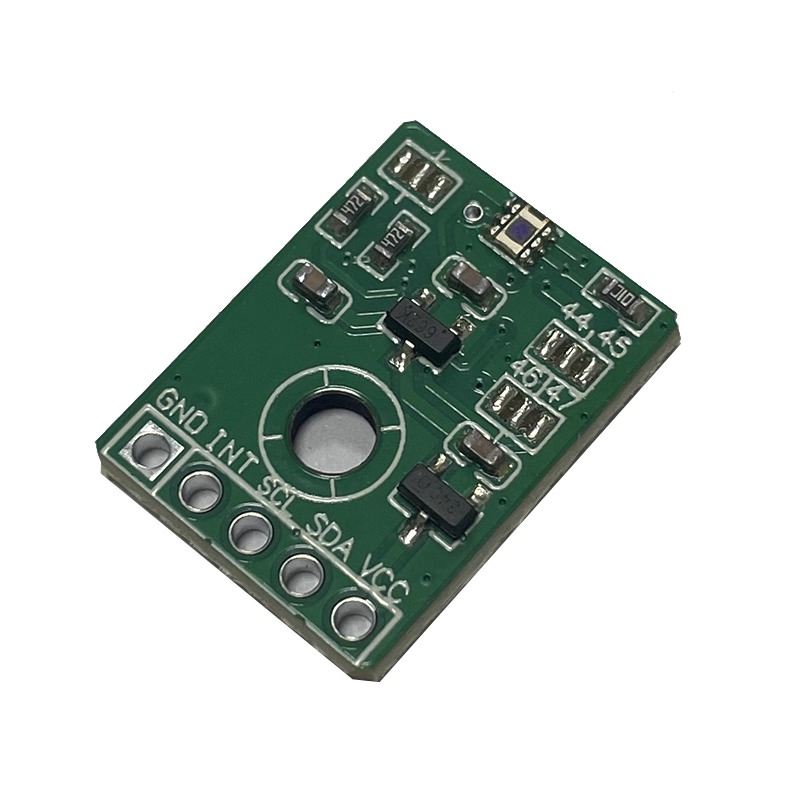

OPT3004 Ambient Light Sensor Module Proxy - I2C Interface
The OPT3004 Ambient Light Sensor Module is a high-precision, low-power I2C sensor designed for Arduino, Raspberry Pi, and other 3.3V/5V microcontroller systems. It provides accurate Lux measurements from 0.01 to 83,000 Lux with a spectral response closely matching the human eye.
Features
- Human-eye spectral response with >99% IR rejection
- Ultra-wide 0.01 to 83,000 Lux measurement range
- Ultra-low 1.8µA typical operating current
- 1.6V to 3.6V supply with 5.5V tolerant I2C pins
- Compact module with pre-soldered header pins
Out of stock
The OPT3004 Ambient Light Sensor Module integrates Texas Instruments’ OPT3004 digital sensor, delivering precise ambient light intensity measurements. Its advanced photodiode and optical filter system provide a spectral response that closely matches the human eye, while actively rejecting over 99% of infrared light for accurate Lux readings in varied lighting conditions.
The sensor features a 23-bit effective dynamic range with automatic full-scale selection, ensuring optimal resolution across its entire 0.01 to 83,000 Lux span. Communication is handled via a standard I2C interface, compatible with 3.3V and 5V logic systems. Its ultra-low power consumption and wide operating temperature range make it suitable for battery-powered and industrial applications.
Additional Information
| Weight | 0.002 kg |
|---|---|
| Dimensions | 1.9 × 1.4 cm |
