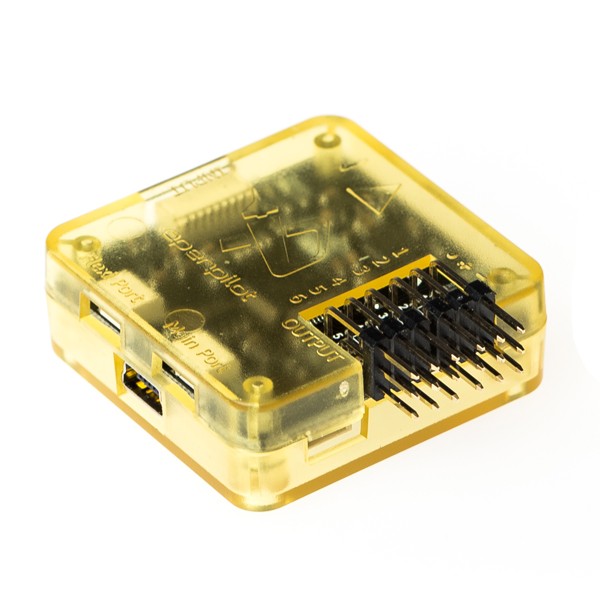

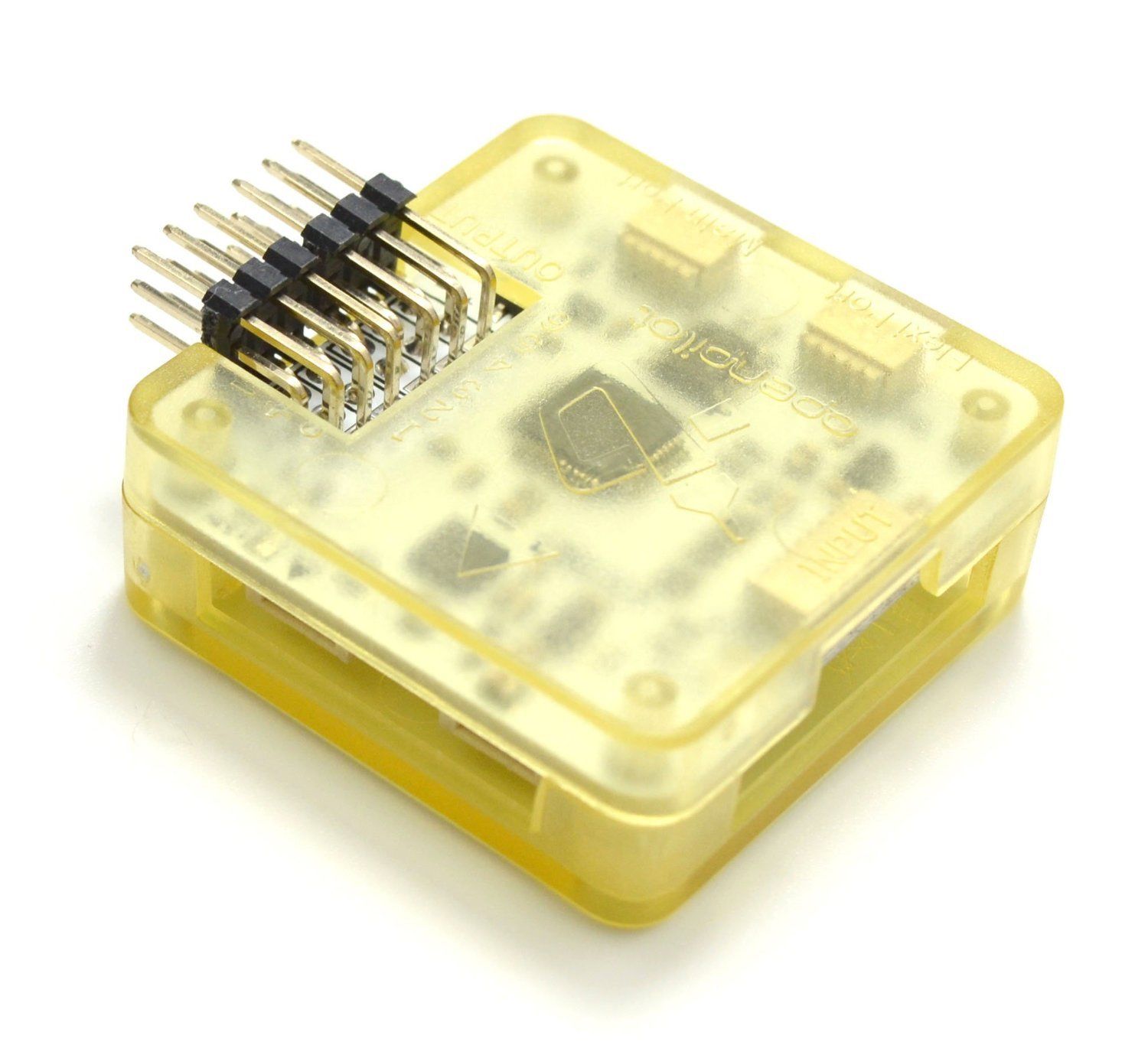

OpenPilot CC3D EVO Flight Controller with Side Pins
The OpenPilot CC3D EVO is a 32-bit STM32-based flight controller featuring a side-pin connector layout, designed for multirotor drones. It integrates an MPU6000 sensor for 3-axis gyro and accelerometer data, supporting PWM, PPM, Spektrum satellite, and S.BUS receivers via its configurable FlexiPort technology.
Features
- 32-bit STM32 microcontroller with 128KB Flash and 20KB RAM for robust flight processing.
- Integrated MPU6000 3-axis MEMs gyroscope and accelerometer sensor.
- Side-pin connector layout for direct compatibility with satellite receivers without conversion cables.
- FlexiPort technology supports dual serial ports or I2C for GPS, telemetry, or peripheral expansion.
- Plug-and-play USB connectivity for configuration on Windows, Mac, and Linux via OpenPilot GCS.
Out of stock
The OpenPilot CC3D EVO flight controller is built on a compact 36x36mm 4-layer PCB designed to minimize electrical noise and enhance flight stability. Its core processing is handled by a powerful STM32 32-bit microcontroller operating at 90 MIPS, paired with a high-performance MPU6000 IMU delivering precise 3-axis attitude data. The side-pin variant offers a 90-degree connector orientation for streamlined wiring integration in tight frame builds.
Hardware support includes direct input for Spektrum/JR DSM2/DSMJ/DSMX satellite receivers and Futaba S.BUS, alongside traditional PWM and combined PPM streams. The configurable FlexiPort provides flexible I/O options for serial telemetry, GPS modules, or I2C peripherals. The controller runs the OpenPilot firmware, featuring a quaternion-based complementary filter at 500Hz for stable multirotor flight control.
Additional Information
| Weight | 0.028 kg |
|---|---|
| Dimensions | 4 × 4 × 1.8 cm |
