BIGTREETECH SKR V1.4 Turbo 3D Printer Control Board

₹4,749.00 (Inclusive of all taxes)
Out of Stock

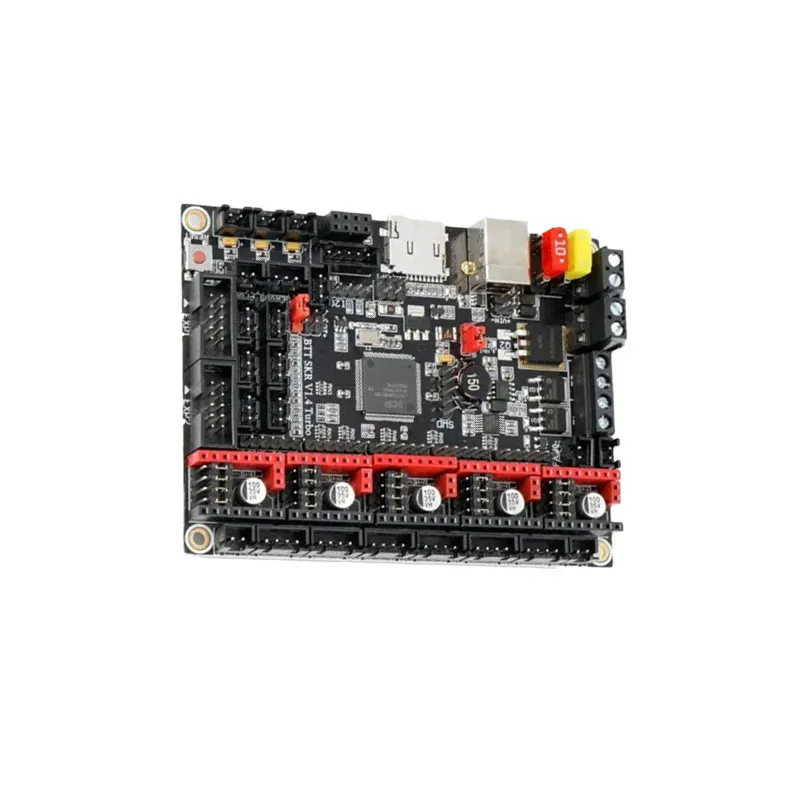

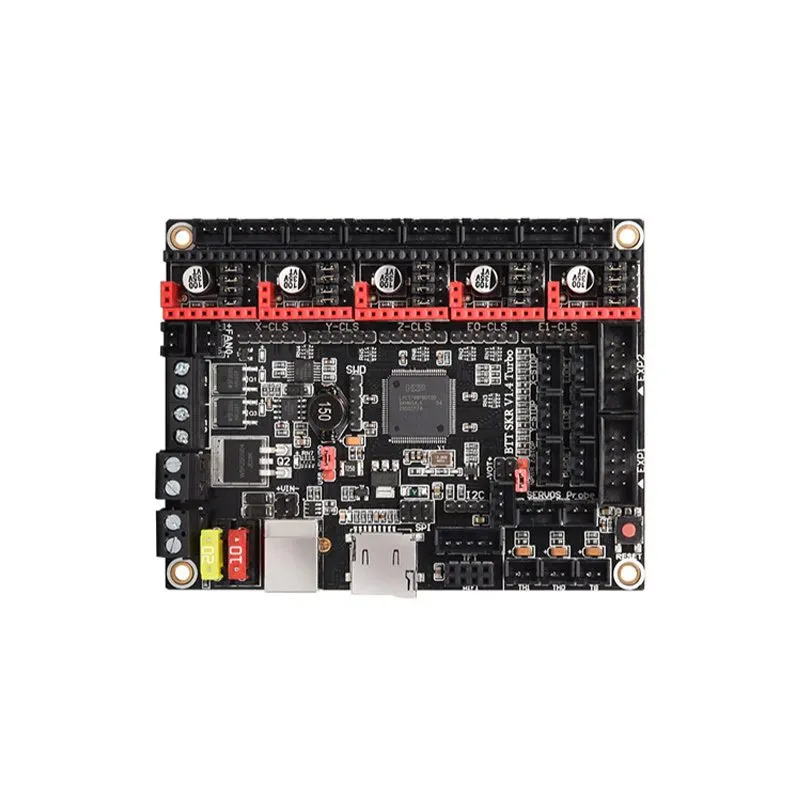

The BIGTREETECH SKR V1.4 Turbo is a high-performance 32-bit control board designed to power your 3D printer with enhanced processing capabilities and versatile connectivity. It supports various stepper drivers and printer kinematics, offering a robust upgrade for improved accuracy and speed.

Features

  • Features a powerful 32-bit ARM Cortex M3 120MHz processor for superior command execution and motor control.
  • Integrates dedicated interfaces for closed-loop drives, dual Z-axis motors, and BLTouch for advanced configurations.
  • Equipped with high-performance MOSFETs and a protected thermistor interface for reliable operation and heat management.
  • Offers expanded connectivity with multiple fan ports and reserved I2C, SPI, WIFI for future DIY expansions.
  • Utilizes a power selection design to isolate USB power, preventing potential damage to connected devices.

Out of stock

Description

The BIGTREETECH SKR V1.4 Turbo Control Board is an advanced 32-bit mainboard engineered to be the central processing unit of your 3D printer. Utilizing an ARM Cortex-M3 series LPC1768 microcontroller clocked at 120MHz, it significantly surpasses older 8-bit boards in processing power and efficiency. This enhanced performance allows for faster G-code parsing, more precise motor control, and smoother overall operation, crucial for intricate prints and high-speed movements.

Equipped with highly modular and open-source Marlin 2.0 firmware, the SKR V1.4 Turbo offers extensive customization and flexibility for various 3D printer types, including XYZ, Delta, Kossel, Ultimaker, and CoreXY. Its design incorporates features like reserved closed-loop drive interfaces and dual Z-axis motor support, simplifying complex upgrades and configurations. The board’s robust architecture ensures stable temperature regulation and precise stepper motor movements, making it an ideal choice for makers seeking to improve their printer’s reliability and performance.

This control board is essential for any 3D printer, translating digital instructions into physical movements and actions. Its comprehensive set of interfaces, including those for BLTouch, Neopixel RGB light bars, and DIY expansion (I2C, SPI, WIFI), provide a powerful foundation for building or upgrading a highly capable and versatile 3D printing system.

Key Features

  • Utilizes high-performance MOSFET tubes for enhanced heat dissipation and stable operation.
  • Designed with pluggable fuses for easy and quick replacement, minimizing downtime.
  • Includes dedicated BLTouch interfaces (SERVOS and Probe) for straightforward auto-bed leveling integration.
  • Supports Neopixel scheme for RGB light bars, enabling customizable visual feedback.
  • Features a power selection design to isolate USB power from the switching power supply, preventing short-circuit damage to the computer's USB port.
  • Employs conspicuous pin headers for special function interfaces, significantly reducing wiring error rates during setup.
  • Reserves I2C, SPI, and WIFI interfaces, facilitating convenient DIY expansions and module integration.
  • Equipped with a protected thermistor interface featuring a bile capacitor pressure sensitive resistor for increased durability.
  • Offers more fan interfaces: one digitally controlled and three normally open, for comprehensive cooling management.
  • Supports external DC5V power module for TFT screen, BLTouch, and Neopixel power supply.

Applications

  • Upgrading or replacing existing 8-bit control boards in FDM 3D printers.
  • Building custom 3D printers requiring a powerful 32-bit control system.
  • Enhancing 3D printers with advanced features like closed-loop stepper drives and auto-bed leveling.
  • Controlling various printer kinematics including Cartesian (XYZ), Delta, Kossel, Ultimaker, and CoreXY setups.
  • Integrating multi-material systems or other peripherals requiring I2C, SPI, or WIFI connectivity.

Technical Specifications

Item TypeController Board
CompatibilityTMC Specific Driver Series
Input Voltage (VDC)12-24V
Logic Voltage (V)3.3V
MicrocontrollerARM Cortex M3 (LPC1768)
Clock Frequency120 MHz
Supported Printer TypesXYZ, Delta, Kossel, Ultimaker, CoreXY (according to motion kinematics)
Board Dimensions (L x W)110mm x 84mm
Weight88g

Frequently Asked Questions

What are the primary advantages of the SKR V1.4 Turbo over 8-bit boards?

The SKR V1.4 Turbo utilizes a 32-bit ARM Cortex M3 processor, clocking at 120MHz, which offers significantly faster G-code processing and more precise motor control compared to older 8-bit boards. This translates to smoother prints, higher speeds, and greater overall efficiency for complex tasks in 3D printing.

Which stepper motor drivers are compatible with this control board?

The BIGTREETECH SKR V1.4 Turbo is designed for compatibility with TMC specific driver series. This includes popular drivers like TMC2208, TMC2209, TMC2130, and others that utilize a standard STEP/DIR or UART/SPI interface, allowing for quiet operation and advanced motor control features in your 3D printer.

Can the SKR V1.4 Turbo support dual Z-axis motors directly?

Yes, the SKR V1.4 Turbo features a dedicated dual Z-axis interface, eliminating the need for an external drive expansion module. This simplifies wiring and configuration for 3D printers that utilize two Z-axis stepper motors, ensuring synchronized and stable vertical movement of the print head or bed.

Is the SKR V1.4 Turbo compatible with auto-bed leveling sensors like BLTouch?

Absolutely. The board reserves specific BLTouch interfaces, SERVOS and Probe, making it easy to integrate auto-bed leveling sensors directly. This feature streamlines the setup process for BLTouch or similar probes, allowing for precise bed leveling and improved first-layer adhesion without complex modifications.

What firmware does the BIGTREETECH SKR V1.4 Turbo use?

The BIGTREETECH SKR V1.4 Turbo is primarily designed to run highly modular and open-source firmware such as Marlin 2.0. This provides users with extensive customization options and compatibility with a wide range of printer configurations and features. It ensures continuous development and community support.

Package Includes

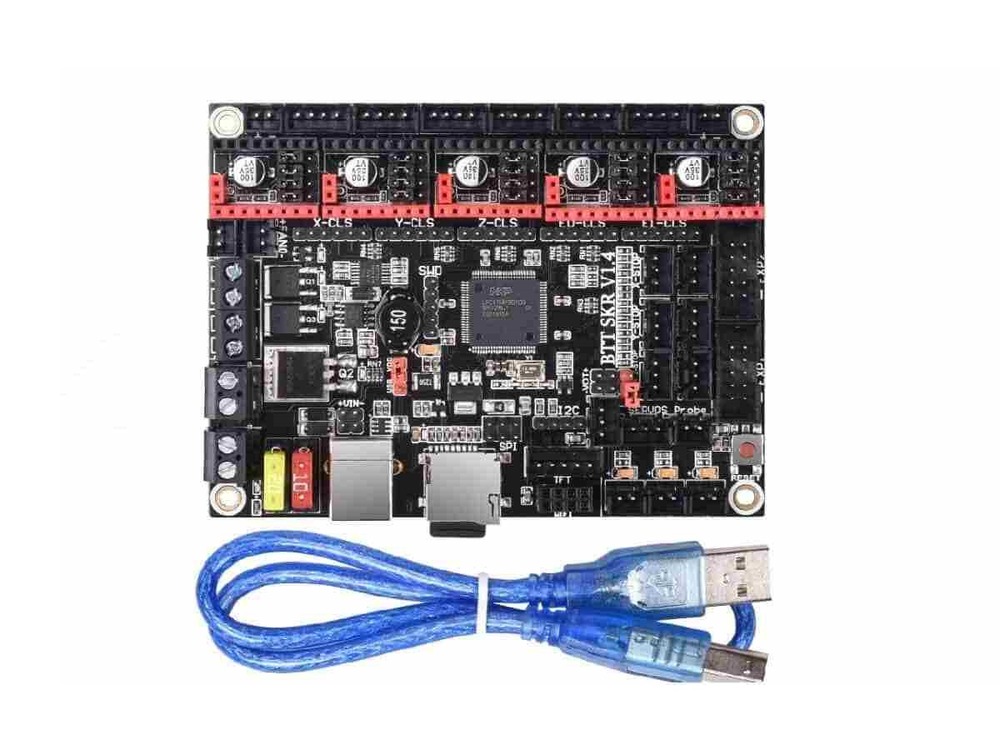

  • 1x BIGTREETECH SKR V1.4 Turbo Control Board
  • 1x 50 cm USB Cable

Additional Information

Weight 0.088 kg
Dimensions 11 × 8.4 × 3.5 cm
