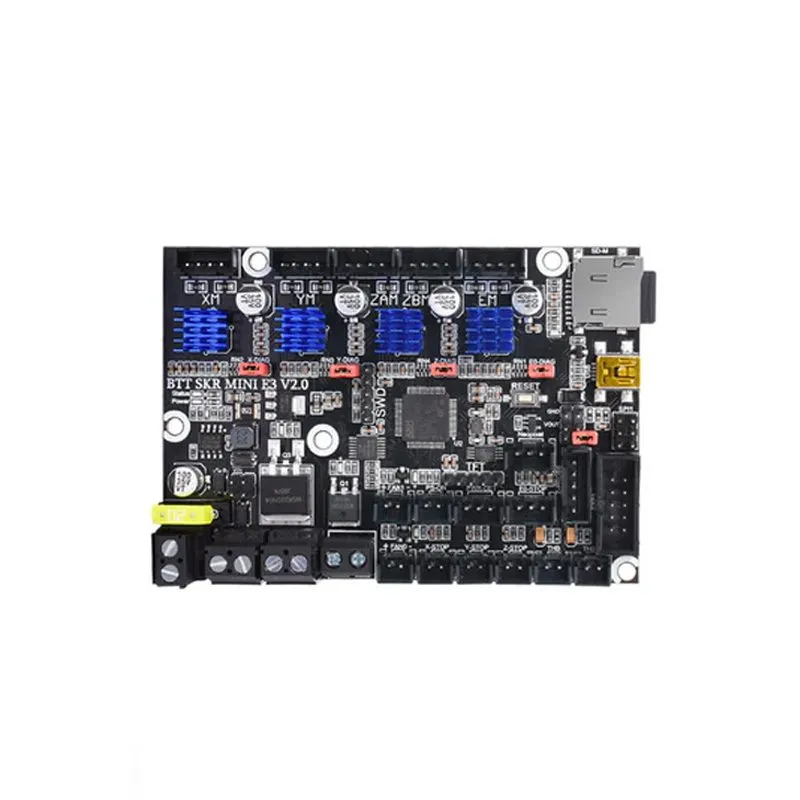

BIGTREETECH SKR Mini E3 V2.0 32-bit Control Board
The BIGTREETECH SKR Mini E3 V2.0 is a 32-bit control board featuring an ARM Cortex-M3 STM32F103RCT6 microprocessor and integrated TMC2209 UART drivers, engineered for direct replacement in Creality Ender 3 3D printers, providing quieter operation and enhanced performance.
Features
- Direct replacement for Creality Ender 3 and Ender 3 Pro 3D printers.
- Integrated TMC2209 UART silent stepper motor drivers for quiet operation.
- Powerful ARM Cortex-M3 32-bit CPU (72MHz) for stable and precise control.
- Supports dual Z-axis motors, BLTouch, and filament runout detection.
- Enhanced heat dissipation with a robust 4-layer PCB design.
Out of stock
The BIGTREETECH SKR Mini E3 V2.0 serves as a significant upgrade over stock 3D printer mainboards, specifically designed to seamlessly integrate with the Creality Ender 3 and Ender 3 Pro series. This 32-bit control board leverages a powerful ARM Cortex-M3 STM32F103RCT6 microprocessor, operating at 72MHz, to deliver superior processing capabilities and precise control over printing operations. Its architecture is engineered for reliability and performance in demanding 3D printing environments.
Equipped with integrated TMC2209 stepper motor drivers operating in UART mode, the SKR Mini E3 V2.0 drastically reduces operational noise and enhances print quality through advanced motor control algorithms. The board also features dedicated connections for dual Z-axis motors, BLTouch auto-leveling, and filament runout detection, expanding the printer’s versatility. With its improved 4-layer PCB and optimized component layout, this control board ensures efficient heat dissipation and robust interference resistance, contributing to a stable and consistent printing experience.
Additional Information
| Weight | 0.058 kg |
|---|---|
| Dimensions | 10 × 7 cm |
