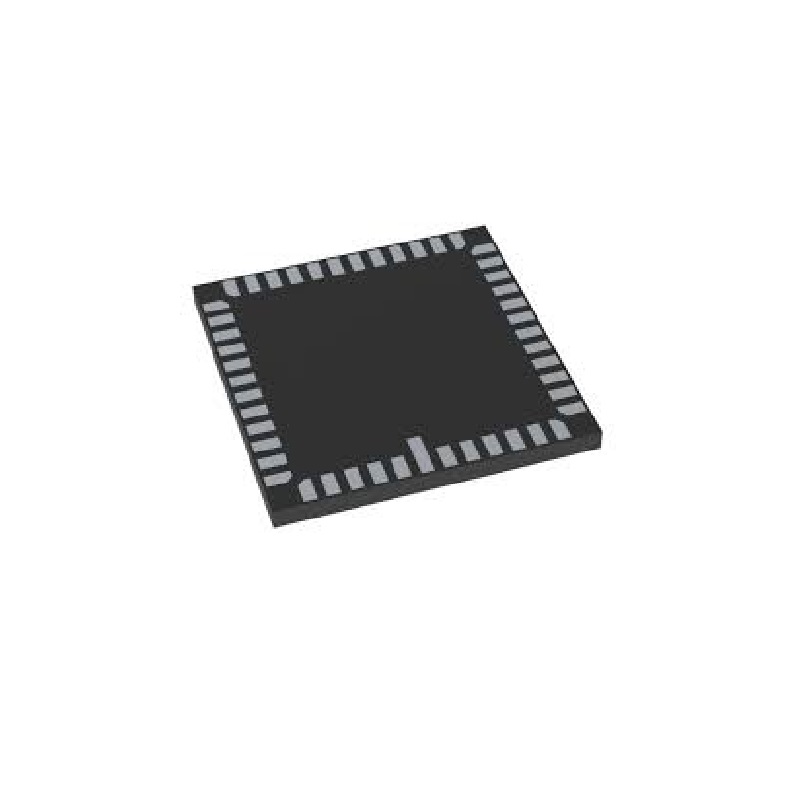

onsemi MT9J003I12STCU-DP 1.67um CMOS 3856Hx2764V LCC-48 Image Sensor
The onsemi MT9J003I12STCU-DP is a high-resolution 10.7-megapixel CMOS image sensor with a 1.67μm pixel pitch, designed for integration into professional imaging systems requiring detailed capture, such as machine vision, industrial inspection, and high-end surveillance.
Features
- 10.7-megapixel resolution (3856H x 2764V active pixels)
- Advanced 1.67μm x 1.67μm pixel architecture for high sensitivity
- LCC-48 (10×10) surface-mount package for compact integration
- Wide operating temperature range from -30°C to +75°C
- ROHS-compliant construction for environmental safety
Out of stock
The MT9J003I12STCU-DP from onsemi is a professional-grade CMOS image sensor engineered for demanding imaging applications. Its 10.7-megapixel array provides the resolution necessary for precise machine vision tasks, detailed inspection, and high-fidelity surveillance. The sensor’s 1.67μm pixel technology is optimized to deliver high sensitivity and dynamic range, ensuring clear image capture even in challenging lighting conditions.
Housed in a compact LCC-48 package, this sensor is designed for direct surface-mount assembly onto system PCBs, facilitating streamlined integration into space-constrained designs. Its robust operating temperature range supports deployment in industrial environments, from factory floors to outdoor enclosures. The sensor outputs a digital signal ready for processing by standard image signal processors (ISPs) or FPGAs, making it a core component for building advanced digital imaging systems.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 8 × 10 × 3 cm |
