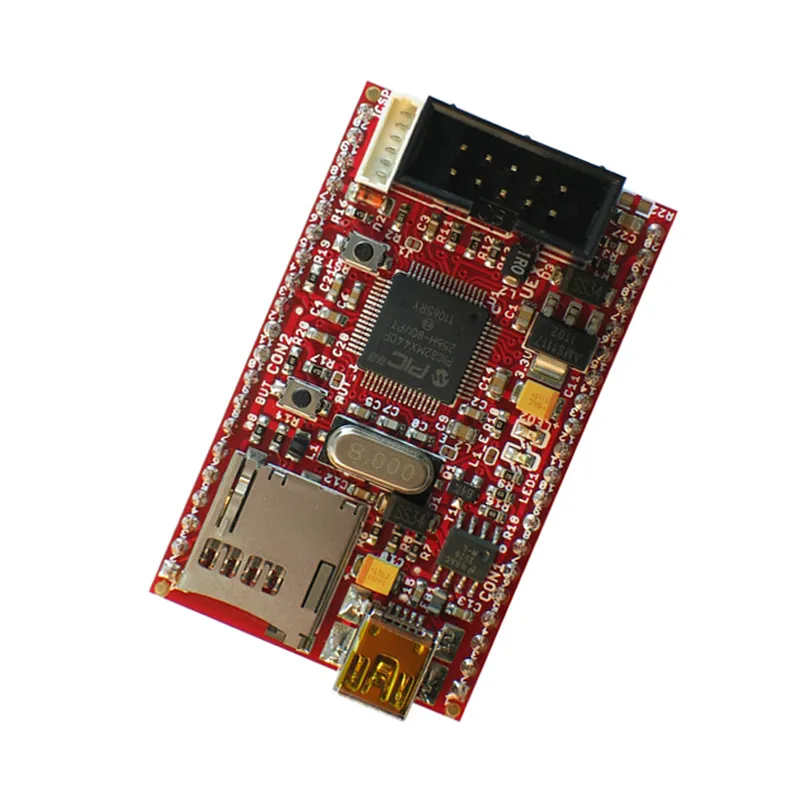

Olimex PIC32-Pinguino-Micro PIC32MX440F256H USB OTG

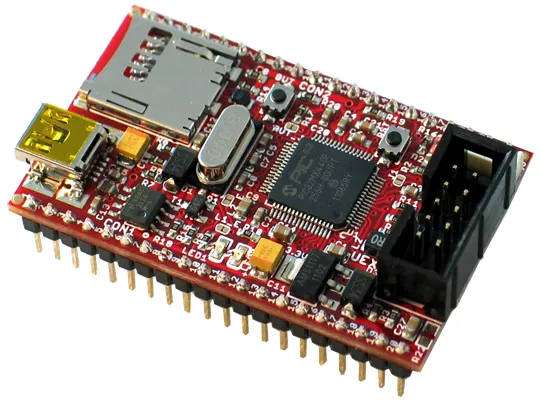

Olimex PIC32-Pinguino-Micro PIC32MX440F256H USB OTG - Image 2

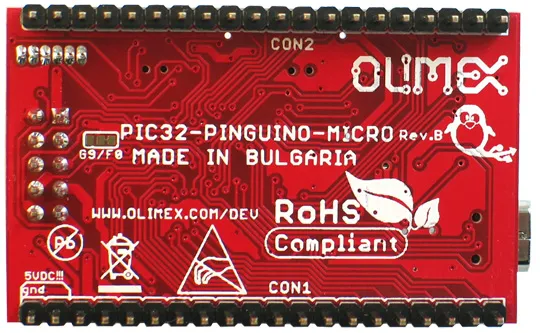

Olimex PIC32-Pinguino-Micro PIC32MX440F256H USB OTG - Image 3
SKU: SBCD-0830
📋 GST Invoice Available

Olimex PIC32-Pinguino-Micro PIC32MX440F256H USB OTG

₹1,890.00 (Inclusive of all taxes)
Out of Stock

The Olimex PIC32-Pinguino-Micro is a powerful development board featuring the 80MHz PIC32MX440F256H microcontroller, offering 256KB Flash and 32KB RAM. It provides USB OTG connectivity, a MicroSD card slot for data logging, and a UEXT connector for broad module expansion, making it ideal for robust embedded applications.

Features

  • Powered by the 80MHz PIC32MX440F256H microcontroller with 256KB Flash and 32KB RAM.
  • Features USB OTG for versatile host/device capabilities and programming via bootloader.
  • Integrated MicroSD card slot supports data logging and storage applications.
  • UEXT connector enables seamless integration with RF, Zigbee, GSM, and GPS modules.
  • All PIC I/O ports are exposed on breadboard-compatible 0.1-inch connectors.

Out of stock

Description

The Olimex PIC32-Pinguino-Micro is an advanced development board designed for applications leveraging the Microchip Technology PIC32MX440F256H microcontroller. This board differentiates itself with a significantly more powerful 32-bit PIC32 MCU running at 80MHz, featuring 256KB of Flash memory and 32KB of RAM, offering substantial performance over traditional 8-bit microcontrollers.

Key features include a USB OTG port for flexible connectivity and simple programming via the pre-loaded bootloader. For advanced users, a mini-ICSP connector is available for direct programming with external tools like PIC-KIT3. All microcontroller I/O signals are accessible via standard 0.1-inch (2.54mm) pitch pins, ensuring full compatibility with breadboards and custom prototyping setups, unlike many common development boards.

Key Features

  • PIC32MX440F256H 80 Mhz microcontroller with 256KB Flash and 32KB RAM.
  • Integrated MicroSD card slot for convenient data logging and storage.
  • UEXT connector for easy expansion with a wide range of modules (RF, ZIGBEE, GSM, GPS).
  • Includes two user-configurable LEDs and a user-definable button.
  • Dedicated RESET button for quick system restarts.
  • Mini USB connector for power and USB OTG communication, widely compatible with standard cables.
  • All PIC I/O ports are broken out to 0.1" (2.54mm) connectors, ensuring breadboard compatibility.
  • miniICSP connector (0.05" step) for external programming with tools like PIC-ICD2-POCKET or PIC-KIT3 via a converter board.

Applications

  • Embedded control systems requiring robust processing.
  • IoT gateway and sensing prototypes using UEXT modules for RF, Zigbee, GSM.
  • Data logging applications leveraging the integrated MicroSD card.
  • Industrial automation and monitoring solutions with wide input voltage range.
  • Custom peripheral development and breadboard prototyping.

Technical Specifications

MicrocontrollerPIC32MX440F256H
Clock Speed80 MHz
Flash Memory256KB
RAM32KB
Power Supply Voltage (DC)9 to 30V
Operating Temperature Range-25°C to +85°C
USBUSB OTG (Mini USB connector)
Expansion InterfacesMicroSD, UEXT, 0.1" I/O Headers, miniICSP

Frequently Asked Questions

What microcontroller is used on the Olimex PIC32-Pinguino-Micro?

The board features a Microchip Technology PIC32MX440F256H microcontroller. This 32-bit MIPS-based MCU operates at 80MHz, offering 256KB of Flash memory and 32KB of RAM. It provides a significant performance upgrade for complex embedded tasks, data processing, and rapid prototyping compared to 8-bit alternatives.

How can the Olimex PIC32-Pinguino-Micro be programmed?

The board supports programming via its USB OTG port utilizing a pre-installed bootloader, which is compatible with environments like Pinguino IDE. Additionally, for direct programming, a mini-ICSP (0.05-inch pitch) connector is available for use with external programmers such as Microchip Technology PIC-KIT3, often requiring a converter board.

What expansion capabilities does the PIC32-Pinguino-Micro offer?

The board includes a UEXT connector, enabling seamless integration with a variety of modules for RF, Zigbee, GSM, and GPS communication. It also features a MicroSD card slot for data logging and ample 0.1-inch pitch headers that expose all PIC ports, facilitating custom circuit expansion and breadboard prototyping.

What is the acceptable power supply voltage range for this board?

The Olimex PIC32-Pinguino-Micro is designed to operate with a wide DC power supply voltage range, specifically from 9V to 30V. This broad input voltage tolerance makes it suitable for various industrial and automotive applications where stable 5V or 3.3V power might not be directly available, enhancing deployment flexibility.

Package Includes

  • 1 x Olimex PIC32-PINGUINO-MICRO

Additional Information

Weight 0.04 kg
Dimensions 9 × 6 × 4 cm
