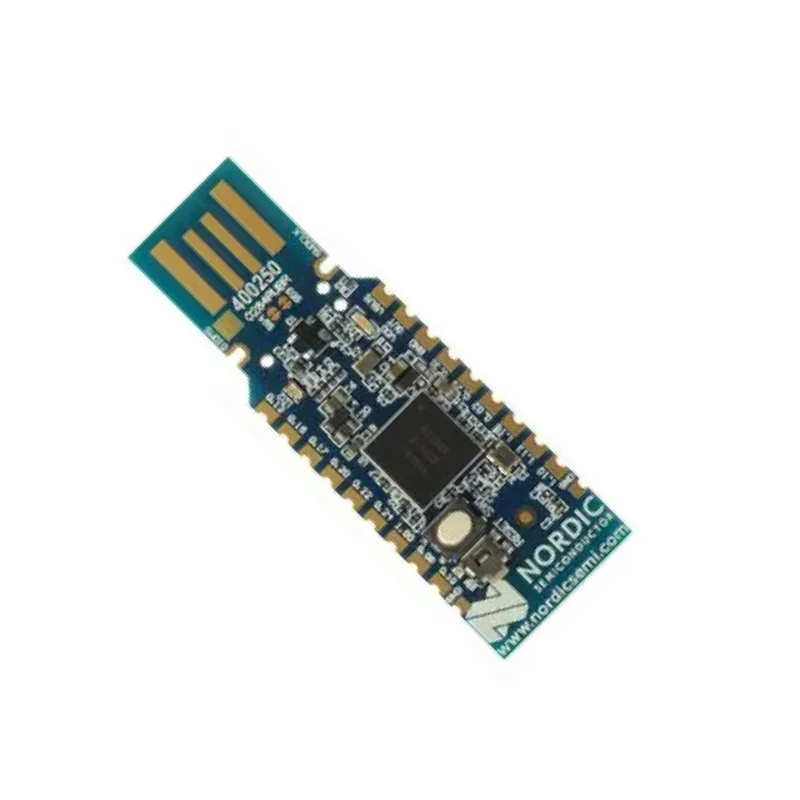

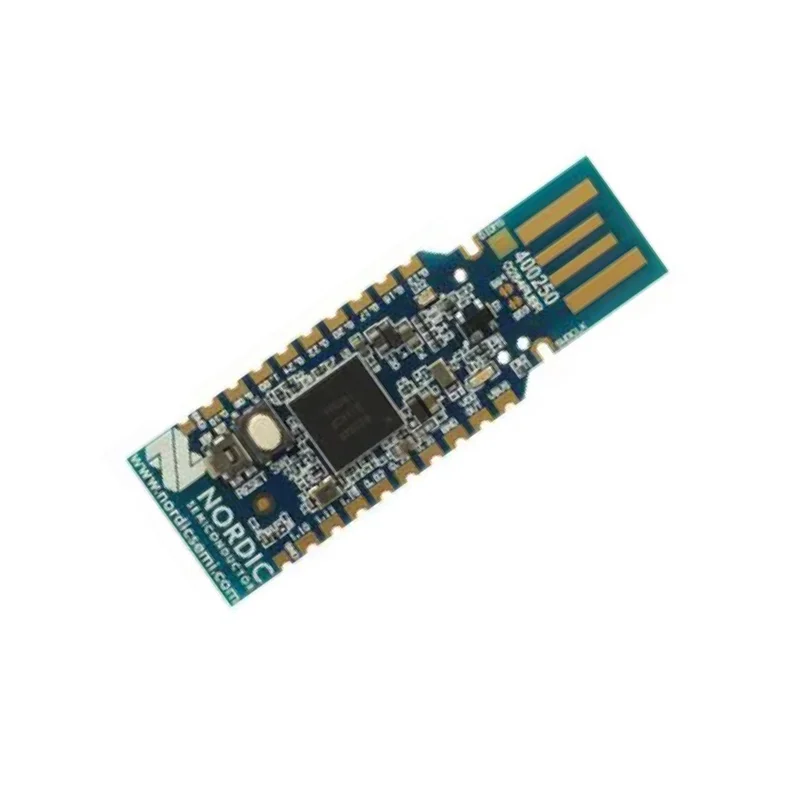

Nordic Semiconductor Semiconductor nRF52840 Dongle Bluetooth 5.4 Module

You can program the dongle using nRF Connect for Desktop tools or the nRF Command Line Tools (nrfutil). First, install the necessary software package. Connect the dongle via USB, then use the 'Programmer' app in nRF Connect for Desktop to flash a pre-compiled HEX file. For custom firmware, develop your application using the nRF5 SDK or nRF Connect SDK, compile it, and deploy the output file to the dongle using the same method. The device appears as a mass storage drive for drag-and-drop programming with certain bootloader configurations.

Yes, the nRF52840 Dongle is fully compatible with the 'nRF Sniffer for Bluetooth LE' tool within nRF Connect for Desktop. Simply plug the dongle into your computer, launch the Sniffer app, and select the dongle as the capture device. It will passively monitor advertising and data channels on the 2.4 GHz band, displaying decoded packets in real-time. This is invaluable for debugging BLE communication, analyzing protocol behavior, and reverse-engineering wireless interactions between your devices and smartphones or other peripherals.

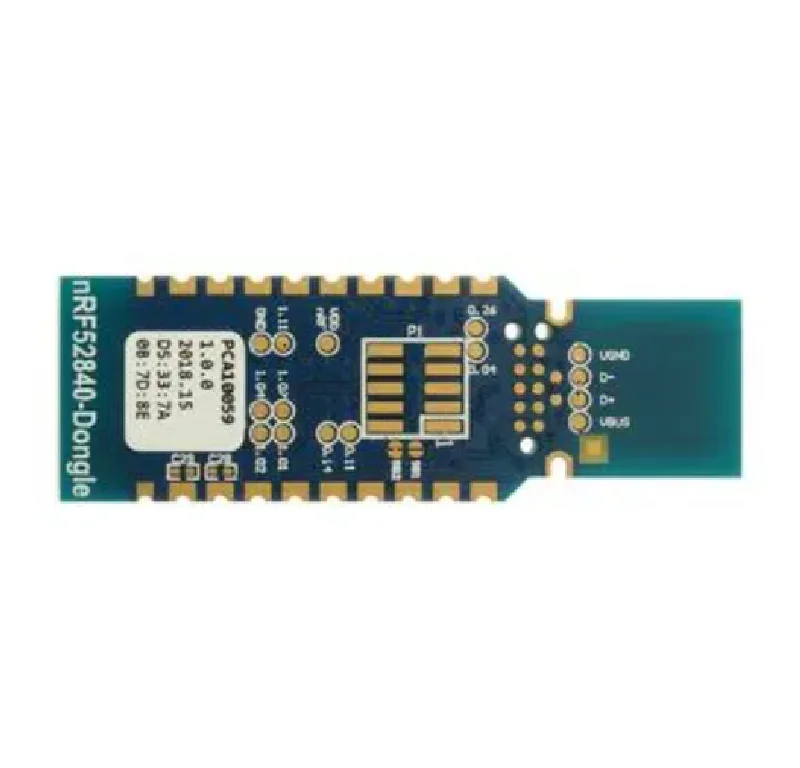

The castellated solder pads along the dongle's edges provide electrical access to 15 general-purpose I/O pins, power, and ground from the nRF52840 SoC. To use them, you must solder header pins, wires, or directly mount the dongle onto a carrier PCB. The pinout mapping (which pad corresponds to which GPIO) is defined in the nRF52840 Dongle product specification and the nRF5 SDK board files (PCA10059). This allows you to connect sensors, displays, actuators, or other peripherals to expand the dongle's functionality beyond its onboard USB and wireless capabilities.

No, the nRF52840 Dongle does not feature an external antenna connector like IPEX (U.FL). It relies solely on its integrated 2.4 GHz PCB trace antenna, which is optimized for typical indoor, short-range communication. For applications requiring extended range or directional gain, you would need to modify the board or use a different nRF52840 module variant that includes an antenna connector. The onboard antenna provides adequate performance for development, testing, and many final applications within a range of approximately 10-30 meters in open space.
