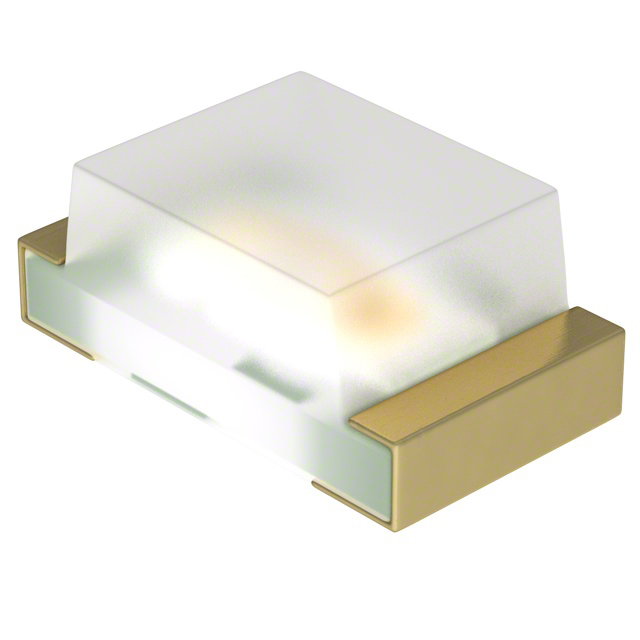

NEWOPTO PT19C-L1 0603 Ambient Light Sensor - 2-Pin SMD

The PT19C-L1 is a basic photodiode sensor with a 2-pin (anode/cathode) configuration. It does not have a digital or linear voltage output. Its resistance or photocurrent changes with light intensity, requiring an external circuit, such as a voltage divider or transimpedance amplifier, to generate a measurable voltage signal for a microcontroller's ADC.

To interface with a microcontroller like Arduino, you must build a conditioning circuit. Connect the sensor in series with a fixed resistor to form a voltage divider between Vcc and GND. The junction point connects to an analog input pin. As light changes, the sensor's resistance changes, altering the voltage at the pin, which can be read by the ADC. Calibration is required to map ADC values to lux levels.

The PT19C-L1 is designed with an integrated infrared (IR) filter. This filter attenuates infrared wavelengths, shaping its spectral sensitivity to closely match the human eye's photopic response curve, which peaks around 555 nm (green-yellow). This makes it ideal for applications where the perceived brightness, not total radiant energy, is the critical measurement.

Yes, the PT19C-L1 is a passive component with no internal active circuitry requiring a specific voltage. It can be used in a voltage divider circuit powered by 3.3V, 5V, or other suitable voltages. The key design consideration is selecting an appropriate series resistor value to achieve the desired output voltage swing within the ADC range of your microcontroller at the expected light levels.
