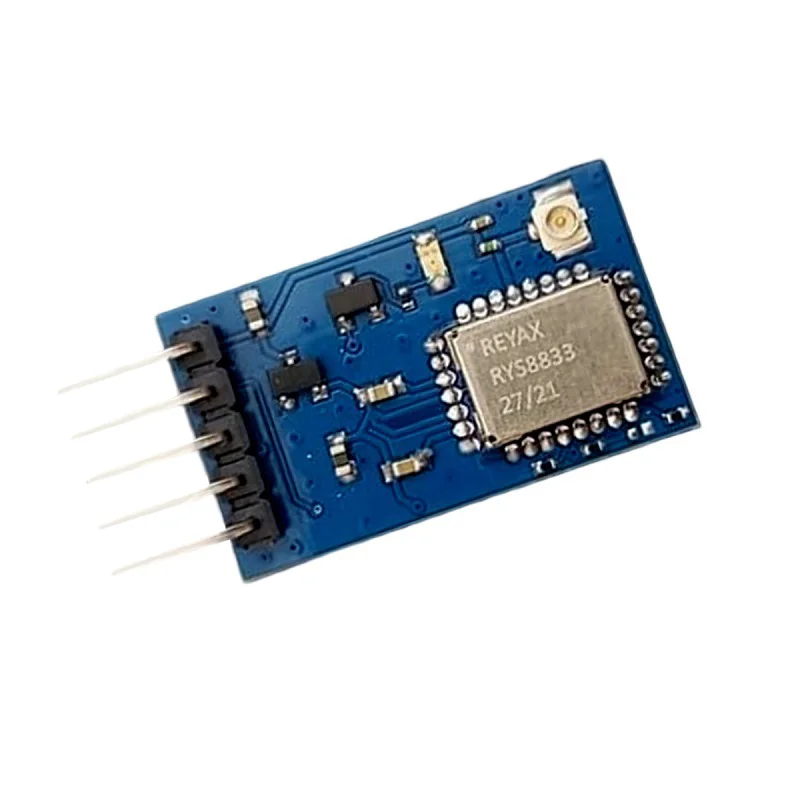

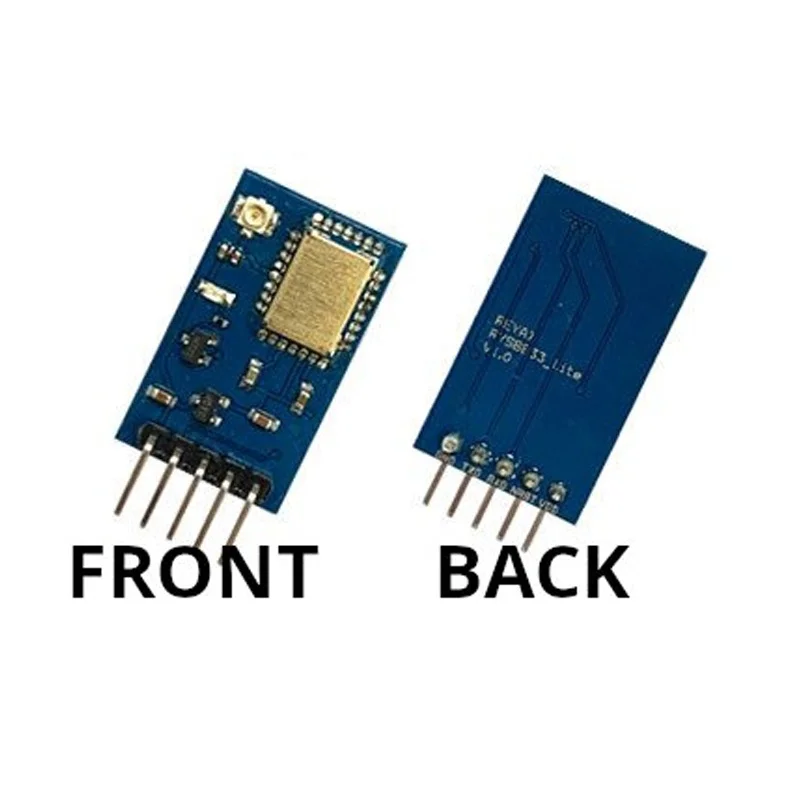

Reyax RYS8833_LITE Ultra Low Power 1.8V GNSS Module
The Reyax RYS8833_LITE is an ultra-low power, multi-GNSS module built around the Sony CXD5605AGF engine, supporting GPS, GLONASS, SBAS, and QZSS for battery-sensitive IoT tracking and positioning applications.
Features
- Ultra-low power consumption with a 3.7mA idle current, ideal for battery-powered IoT devices and trackers.
- Multi-GNSS support for GPS (L1 C/A), GLONASS (L1 OF), SBAS, and QZSS, with planned BeiDou and Galileo compatibility.
- High-sensitivity Sony CXD5605AGF engine with integrated SAW filter, LNA, and TCXO for robust signal acquisition in challenging environments.
- 1.8V UART and I2C interfaces for easy integration with low-voltage microcontrollers and system-on-chips.
- Compact DIP form factor with an operating temperature range of -40°C to 85°C for industrial and outdoor deployments.
Out of stock
The Reyax RYS8833_LITE is a compact, high-performance GNSS module engineered for applications where power efficiency and reliable positioning are critical. It leverages the Sony CXD5605AGF GNSS engine, which integrates a low-noise amplifier (LNA), SAW filter, and temperature-compensated crystal oscillator (TCXO) to deliver high sensitivity and stable operation even in urban canyons or dense foliage. The module’s architecture includes built-in digital noise filtering and a spectrum analyzer, actively mitigating interference to maintain a solid satellite fix.
Designed with a 1.8V core logic, the RYS8833_LITE is perfectly suited for direct connection to modern low-power MCUs without requiring level shifters. Its ultra-low 3.7mA idle current dramatically extends battery life in always-on tracking devices, wearables, and remote sensors. The module outputs standard NMEA sentences over its configurable UART interface, with a default baud rate of 115200 bps, ensuring straightforward integration into existing firmware stacks for Arduino, ESP32, Raspberry Pi, or other embedded platforms.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 3 × 5 × 3 cm |
