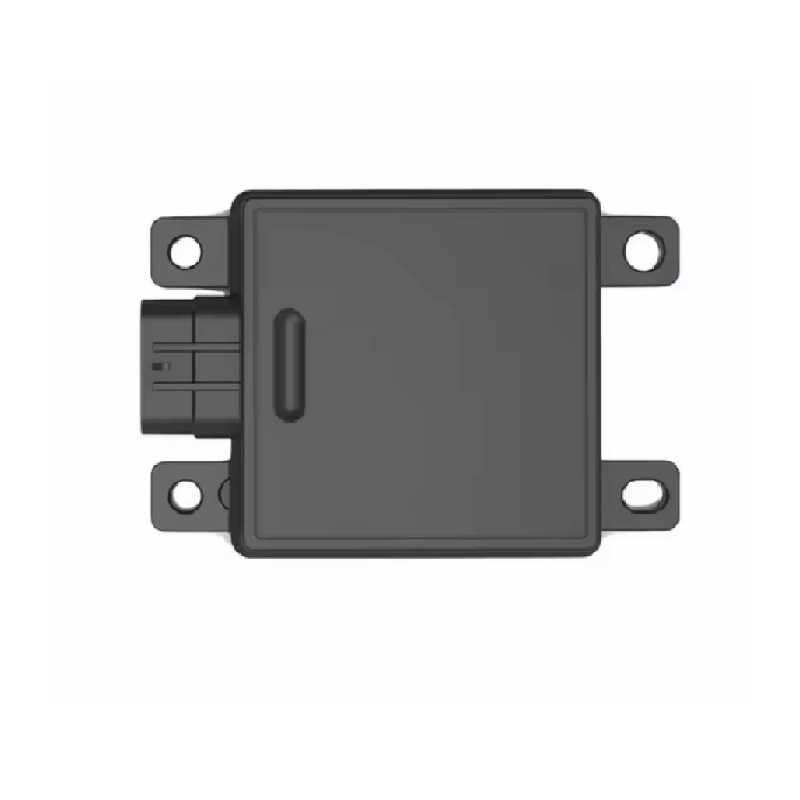

NanoRadar SR75 77GHz MMW 4D High Resolution Imaging Radar - 150° FOV, 40m Range, CAN-FD
The NanoRadar SR75 is a 77GHz millimeter-wave imaging radar module delivering high-resolution 4D point cloud data for advanced environmental perception. Featuring a CAN-FD interface, it is engineered for integration into low-speed autonomous vehicles, mobile robots, and industrial safety systems requiring precise obstacle detection and classification.
Features
- 77GHz millimeter-wave radar with 4D (range, speed, azimuth, elevation) high-resolution imaging.
- Long-range detection up to 40 meters with a wide 150° horizontal field of view.
- Generates dense 1500-point cloud per frame for detailed target contour and motion state analysis.
- Robust IP67-rated enclosure for reliable operation in demanding outdoor and industrial environments.
- Integrated CAN-FD communication interface for seamless integration with vehicle and robotic control systems.
Out of stock
The SR75 imaging radar leverages advanced 77GHz MMIC technology and a proprietary antenna array to capture detailed spatial data, including target height information. This enables the sensor to not only detect obstacles but also classify them based on their轮廓 and dynamic behavior within a comprehensive 4D point cloud. The module’s high data resolution supports sophisticated perception algorithms for autonomous navigation and collision avoidance.
Designed for durability, the compact, IP67-protected housing ensures reliable performance in varied weather conditions, from rain to dust. Its CAN-FD interface provides a high-bandwidth, noise-immune communication link, making it ideal for direct integration into the electronic architecture of unmanned sweepers, mining vehicles, AGVs, and training vehicles where real-time, reliable environmental mapping is critical.
Additional Information
| Weight | 0.18 kg |
|---|---|
| Dimensions | 10.52 × 7.2 × 1.95 cm |
