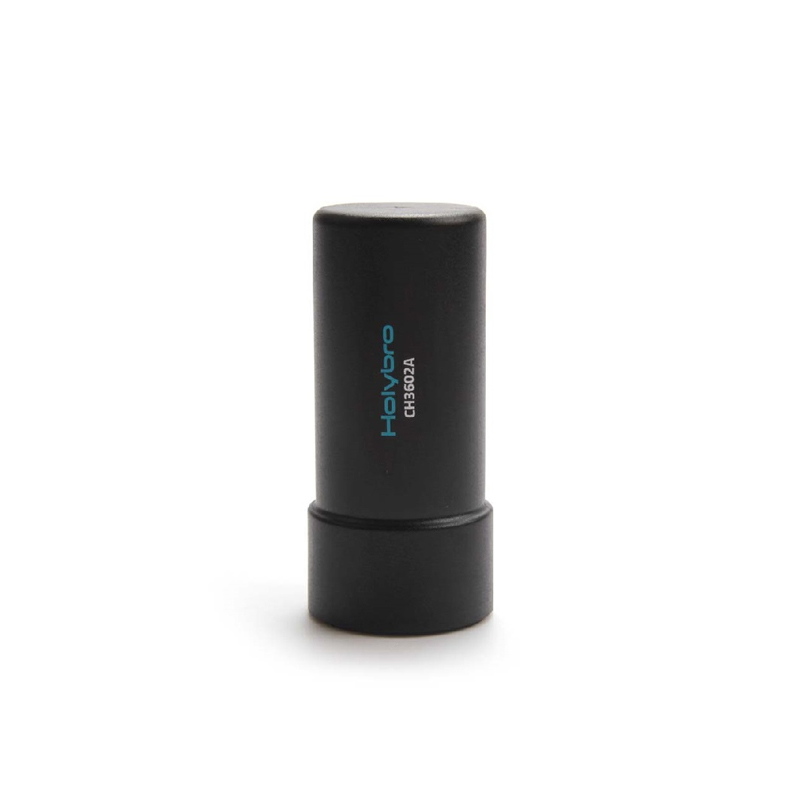

Holybro High Precision RTK GNSS Antennas (CH3602A - 3 Bands)
The Holybro CH3602A is a high-precision, triple-band RTK GNSS antenna designed for professional UAV navigation systems, supporting GPS, GLONASS, Galileo, BeiDou, QZSS, and SBAS signals for centimeter-to-millimeter-level positioning accuracy.
Features
- Triple-band GNSS antenna supporting GPS, GLONASS, Galileo, BeiDou, QZSS, and SBAS signals.
- Stable phase center and Wide-Angle Circular Polarization (WACP) for millimeter-level RTK positioning accuracy.
- IP67-rated ruggedized housing for protection against dust and water ingress in harsh environments.
- Lightweight 25g design with low power consumption, suitable for integration on various UAV platforms.

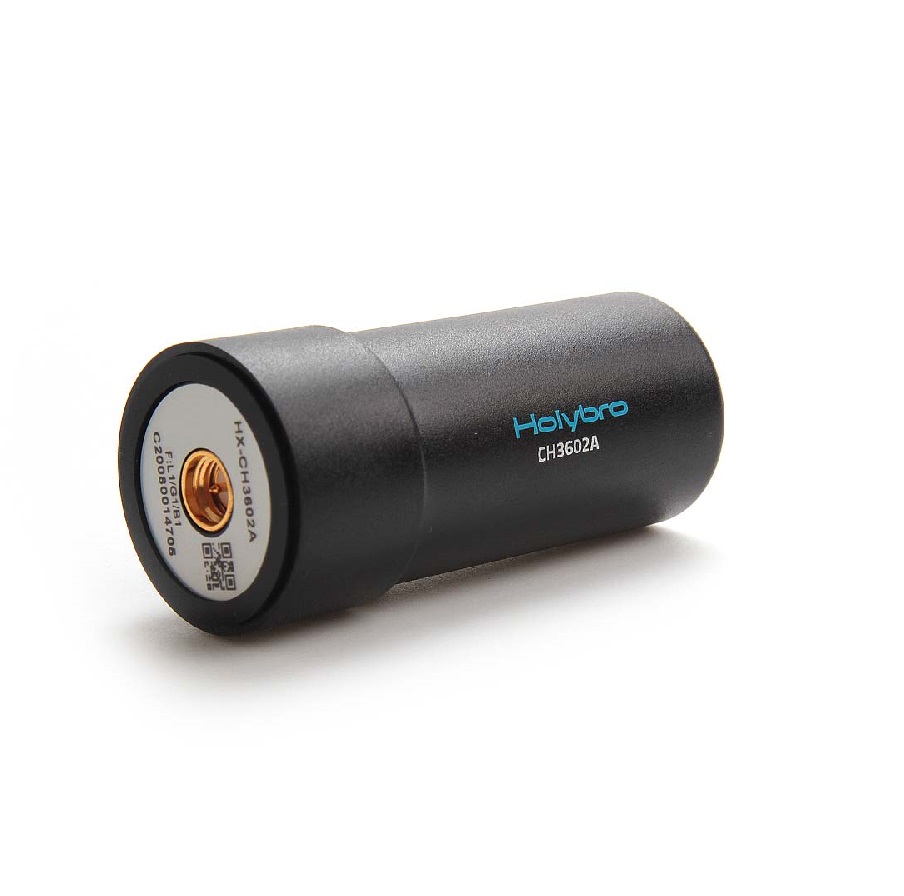

- SMA male connector for direct compatibility with Holybro and other industry-standard flight controller GNSS modules.
Out of stock
The Holybro CH3602A High Precision RTK GNSS Antenna is engineered for demanding UAV applications requiring reliable, high-accuracy positioning. Its triple-band reception capability ensures robust satellite tracking across multiple global navigation constellations, even in challenging signal environments such as near tree lines or urban canyons. The antenna’s stable phase center and minimized phase center variation (PCV) are critical for maintaining the integrity of Real-Time Kinematic (RTK) corrections.
Built with an IP67-rated enclosure, the antenna is protected against dust and temporary immersion, making it suitable for agricultural, surveying, and inspection drones operating in varied conditions. The compact, lightweight form factor minimizes payload impact while the SMA connector provides a secure, industry-standard interface for integration with compatible flight controllers and RTK receivers.
Additional Information
| Weight | 0.025 kg |
|---|---|
| Dimensions | 5.9 × 2.75 cm |
