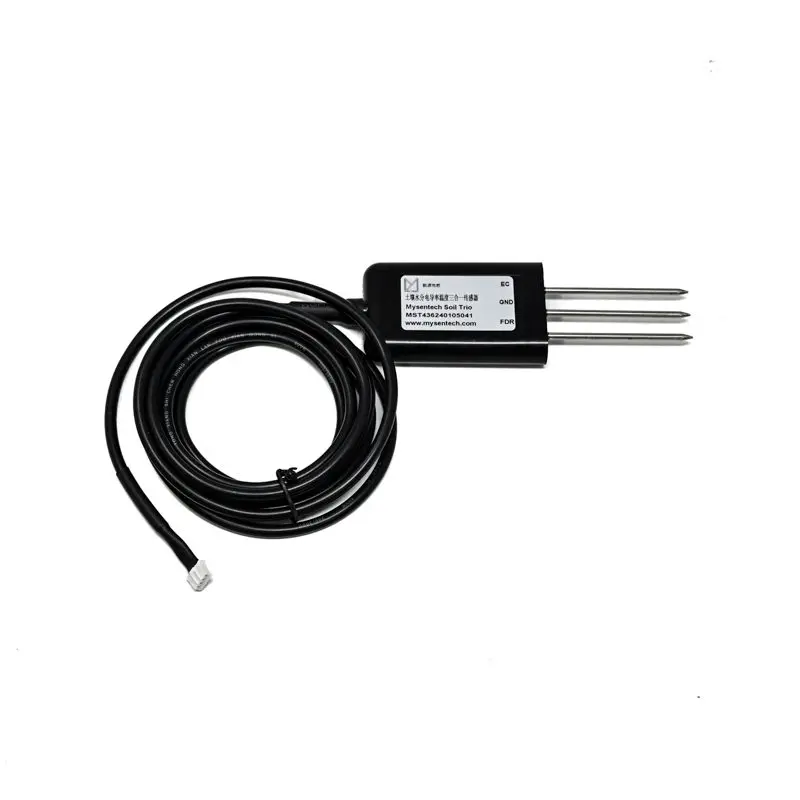

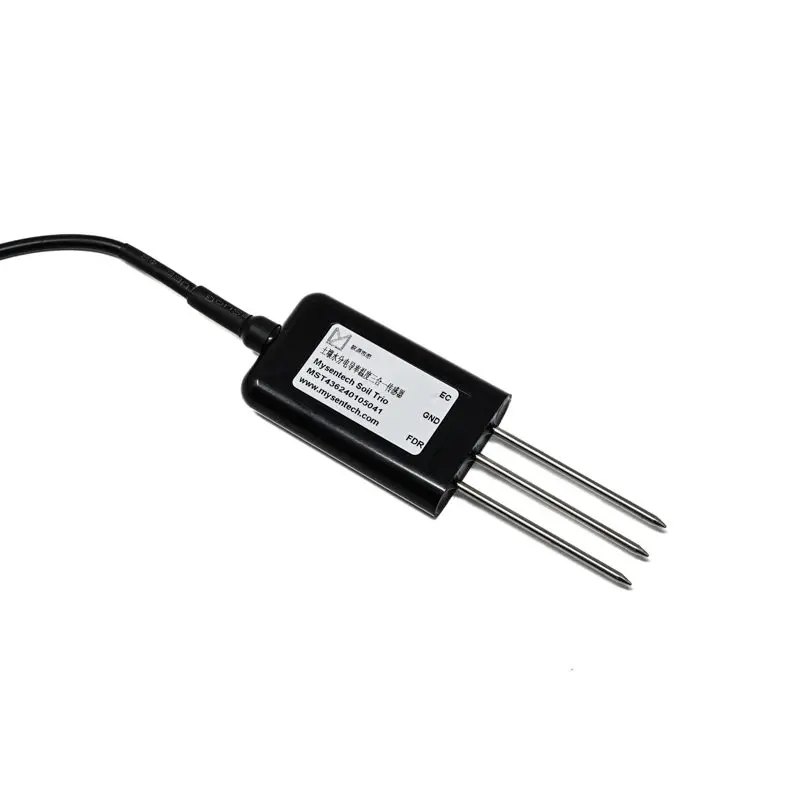

Mysentech MST Sensor RS485 Soil Moisture, EC & Temperature Sensor Module
The Mysentech MST Sensor is an RS485 Modbus RTU-compatible module for simultaneous measurement of soil volumetric water content, electrical conductivity (EC), and temperature. Designed for integration with industrial PLCs, data loggers, and agricultural monitoring systems, it operates on a wide 3.6-24V DC supply.
Features
- Triple-Parameter Sensing: Measures soil moisture (0-100%), electrical conductivity (0-20 mS/cm), and temperature (-40°C to +85°C).
- High Measurement Accuracy: ±3% for moisture and EC, ±0.5°C for temperature.
- Industrial RS485 Interface: Communicates via Modbus RTU protocol for reliable long-distance data transmission.
- Wide Operating Voltage: Supports 3.6V to 24V DC with low power consumption (~24mA at 5V).
- Pre-Calibrated & Weather-Resistant: Factory-calibrated for immediate deployment in outdoor agricultural and environmental applications.
Out of stock
The Mysentech MST Sensor employs advanced sensing techniques to provide accurate, simultaneous readings of three critical soil parameters. Its moisture measurement is based on the dielectric permittivity method (FDR), while the integrated temperature sensor ensures EC readings are temperature-compensated for higher accuracy. The sensor’s robust construction and sealed electronics are designed for long-term burial and exposure to harsh outdoor conditions.
Communication is handled via a standard RS485 interface using the Modbus RTU protocol, making it directly compatible with a wide range of industrial automation controllers, SCADA systems, and IoT gateways. The wide 3.6-24V DC input range allows for flexible power sourcing from solar panels, batteries, or regulated power supplies, suiting remote field deployment.
Additional Information
| Weight | 0.07 kg |
|---|---|
| Dimensions | 25 × 17 × 4 cm |
