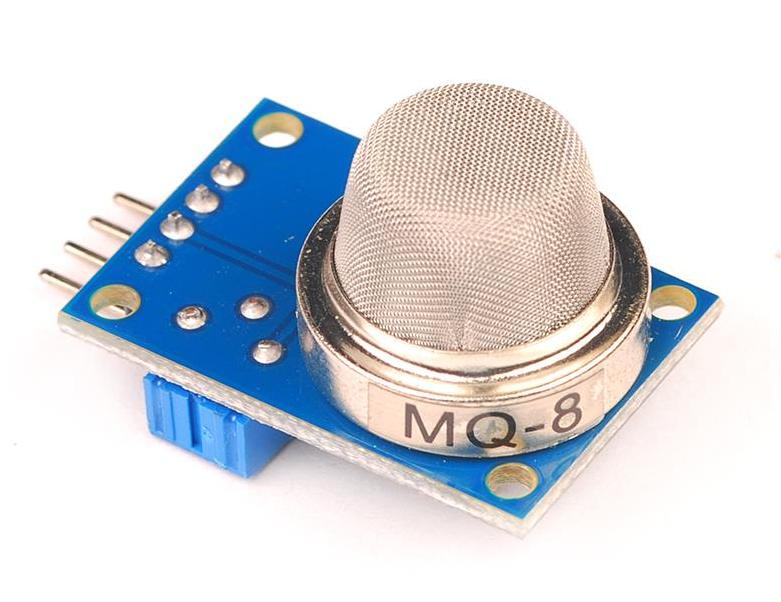

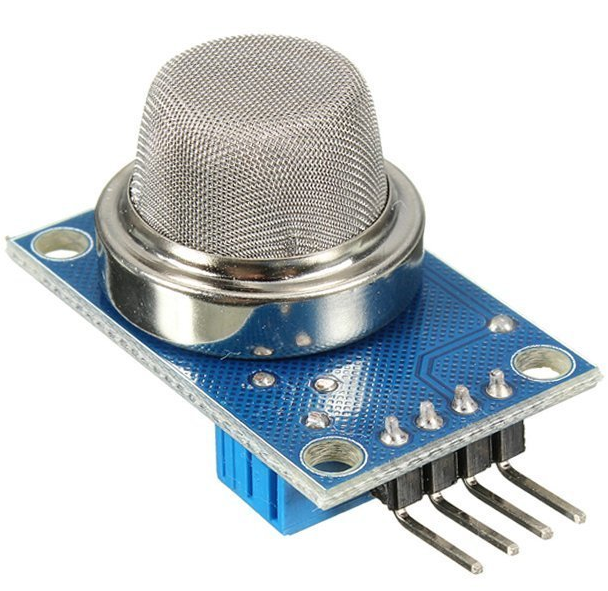

MQ-8 Hydrogen H2 Gas Sensor Alarm Detection Module

The MQ-8 Hydrogen Gas Sensor Module requires a 5V DC power supply. It is important to provide a stable 5V source, as voltage fluctuations can affect the sensor's calibration and analog output accuracy. Typical current draw is around 150 mA during operation.

The digital output (DO) provides a TTL-level signal; a logic low (0V) indicates gas detection above the preset threshold. This pin can be connected directly to a microcontroller's digital input. The analog output (AO) provides a voltage (typically 0.1V to 0.3V) proportional to gas concentration and should be connected to an ADC pin (e.g., on an Arduino) for precise measurement.

Yes, like most semiconductor gas sensors, the MQ-8 requires an initial pre-heating period after power-on to stabilize its sensing element. It is recommended to allow at least 1-2 minutes of warm-up time before relying on readings for accurate detection and to perform any necessary calibration in clean air.

The MQ-8 sensor is specifically sensitive to hydrogen (H2) and is designed to have low cross-sensitivity to common interfering gases such as ethanol vapor, carbon monoxide (CO), and smoke. However, in environments with very high concentrations of other combustible gases, some interference is possible, so it is best used in applications where hydrogen is the primary target gas.
