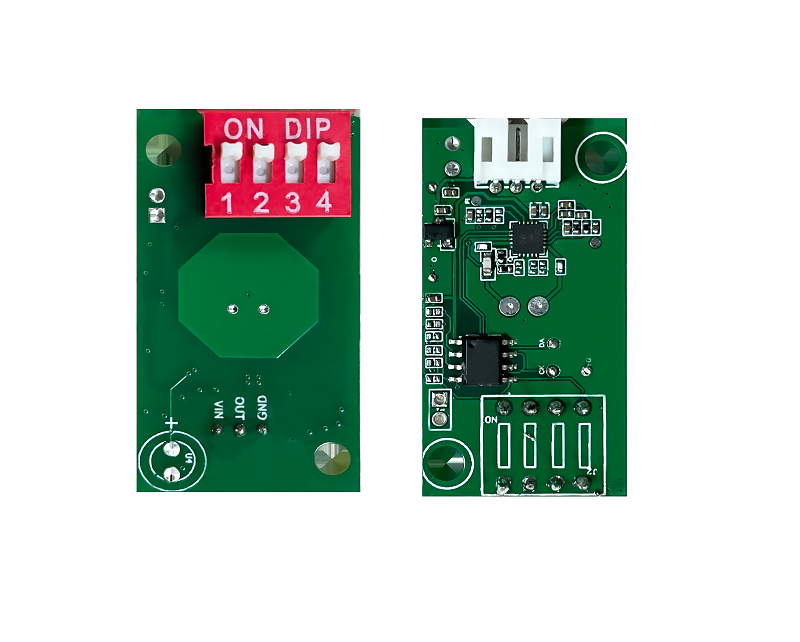

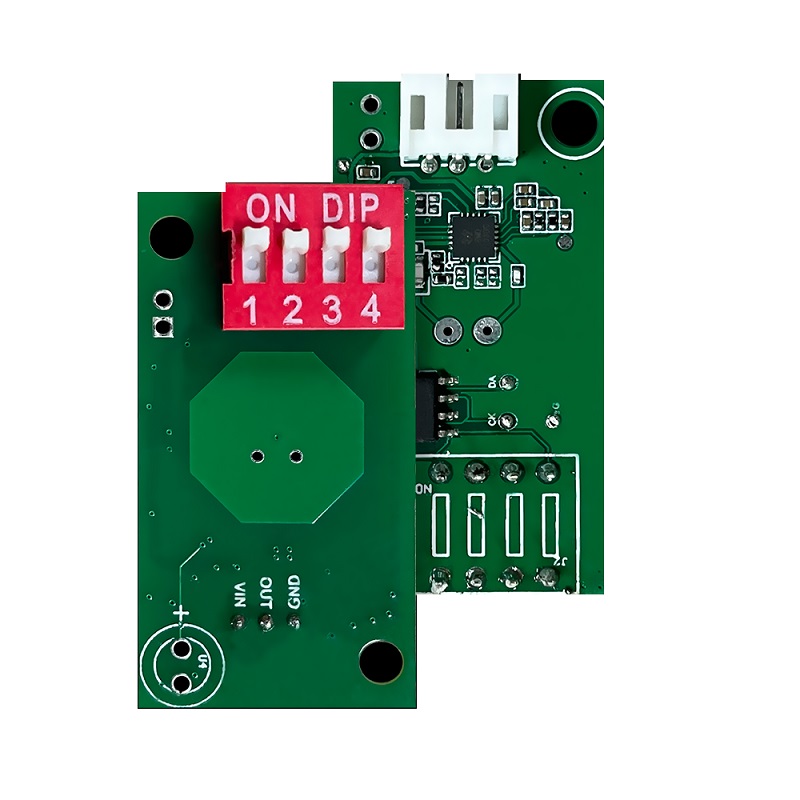

Moresense MS58-3820D9M4 5.8GHz Radar Motion Sensor Module - 3-4m Range, DIP Switch Adjustable
The Moresense MS58-3820D9M4 is a compact 5.8GHz Doppler radar motion sensor module, compatible with 5-12V DC systems, designed for reliable human presence detection through non-metallic materials with a range of 3 to 4 meters.
Features
- 5.8GHz Doppler radar motion detection principle
- Compact 38mm x 20mm module footprint
- 3 to 4 meter adjustable detection range
- Immune to environmental light, temperature, and humidity changes
- DIP switch for configurable sensing parameters
Out of stock
The Moresense MS58-3820D9M4 utilizes a 5.8GHz continuous wave (CW) Doppler radar IC and integrated planar antenna to detect motion. It operates on the principle of frequency shift in reflected electromagnetic waves caused by a moving target, providing reliable detection unaffected by ambient light, temperature, or dust.
This module features a multi-filter digital signal processing algorithm for enhanced anti-jamming performance, reducing false triggers. Its 5.8GHz frequency allows signal penetration through non-metallic materials like glass, plastic, and thin walls, making it suitable for concealed installations. Key operational parameters, such as sensitivity and timing, can be adjusted via an onboard DIP switch.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 7 × 8 × 2 cm |
