Moresense MS58-3216J68U4 5.8GHz Low Power Radar Sensor Module - 3-4m Range, I2C/SPI/UART
The Moresense MS58-3216J68U4 is a 5.8GHz microwave radar motion sensor module designed for low-power IoT and smart device applications. It provides reliable moving target detection through non-metallic materials and interfaces via I2C, SPI, or UART for seamless integration with microcontrollers like Arduino, ESP32, and Raspberry Pi.
Features
- 5.8GHz ISM Band Doppler Radar for precise motion sensing up to 4 meters.
- Ultra-low power consumption, with average current under 70µA for battery-powered designs.

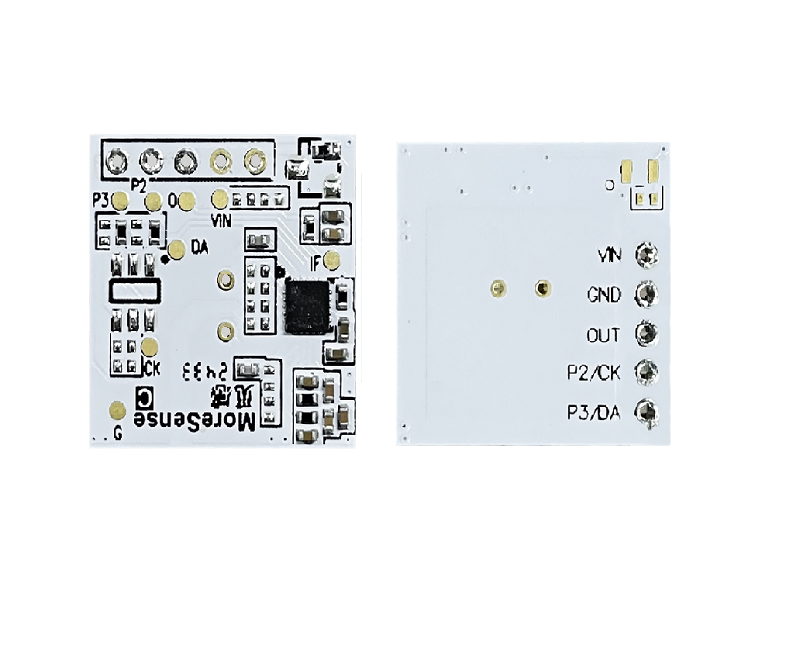

- Compact 32mm x 16mm form factor with integrated planar antenna and signal processor.
- Multi-filter algorithm provides strong anti-interference and penetration of glass/acrylic.
- Flexible digital interfaces: I2C, SPI, and UART for direct control signal output.
Out of stock
The MS58-3216J68U4 is a highly integrated, low-power microwave radar sensor module operating in the 5.8GHz ISM band. Utilizing the Doppler effect, it detects motion by analyzing frequency shifts between transmitted and reflected high-frequency electromagnetic waves. Its SoC-based architecture incorporates signal processing, filtering, and an LDO, enabling direct sensing signal output and robust performance in electrically noisy environments.
Designed for continuous operation, the module’s sub-70µA current draw makes it ideal for solar-powered or battery-driven applications. The sensor’s signal can penetrate common non-metallic enclosures, allowing for concealed installation behind panels, glass, or acrylic, which is critical for aesthetic and protected designs in consumer electronics and smart building systems.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 7 × 8 × 2 cm |
