Moresense MS58-1616D14M4 5.8GHz Radar Motion Sensor Module - UART/I2C/PWM Output
The Moresense MS58-1616D14M4 is a compact 5.8GHz microwave radar sensor module designed for motion detection via the Doppler effect. It offers UART, I2C, and PWM output interfaces for easy integration with microcontrollers like Arduino, ESP32, and Raspberry Pi, making it suitable for smart home and security applications.
Features
- 5.8GHz ISM band (5725-5875 MHz) microwave radar sensor based on the Doppler effect.
- Compact 20 x 20mm module with integrated planar antenna and built-in LDO for wide-voltage power supply.
- Supports UART, I2C, and PWM output for flexible interfacing with MCUs and other sensors.
- Features normal and ultra-low power modes for energy-efficient operation.
- Robust anti-interference capability with multi-filter algorithm; signal penetrates non-metallic materials.
Out of stock

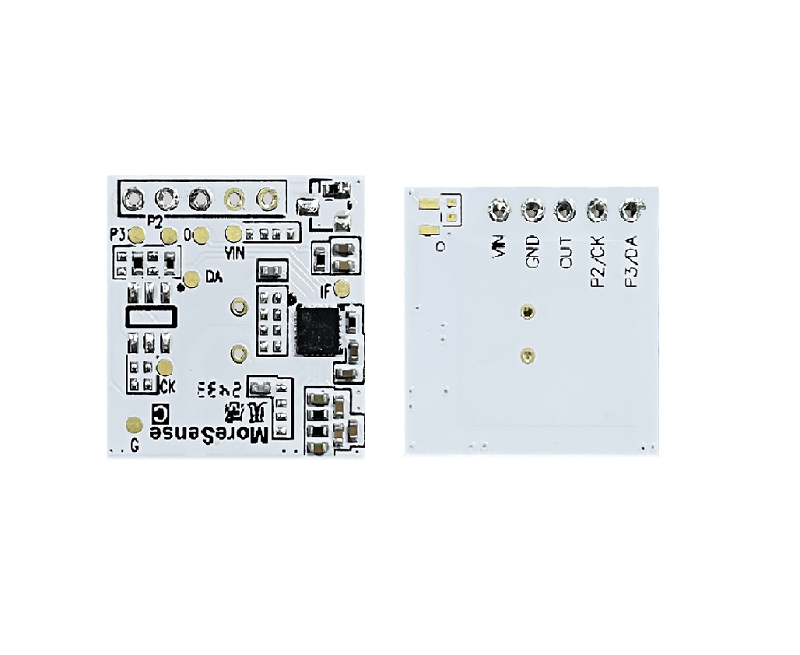

The Moresense MS58-1616D14M4 is a miniaturized, high-performance 5.8GHz radar sensor module. It utilizes mature CMOS technology for full integration, achieving a compact footprint of 20 x 20mm without sacrificing performance. The module operates on the Doppler principle, detecting motion by analyzing frequency differences between transmitted and reflected high-frequency electromagnetic waves.
Its detection is unaffected by ambient temperature, humidity, airflow, dust, noise, or light levels. A built-in multi-filter algorithm provides strong anti-jamming capability, and the microwave signal can penetrate glass, acrylic, and other non-metallic materials. The module comes pre-configured with factory-default parameters, which can be flexibly modified via serial port commands or by configuring pin levels to set operational gears.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 7 × 8 × 2 cm |
