Moresense MS58-1414D20M4 5.8G High-Performance Series Ultrasonic Sensor 3-4m Range - UART/I2C Interface
The Moresense MS58-1414D20M4 is a 5.8 GHz microwave Doppler radar sensor module designed for motion detection. It operates on a wide 3.3V to 12V DC supply and communicates via UART or I2C, making it compatible with microcontrollers like Arduino, ESP32, and Raspberry Pi for smart home and industrial automation projects.
Features
- 5.8 GHz ISM Band Doppler Radar for precise motion sensing up to 4 meters.

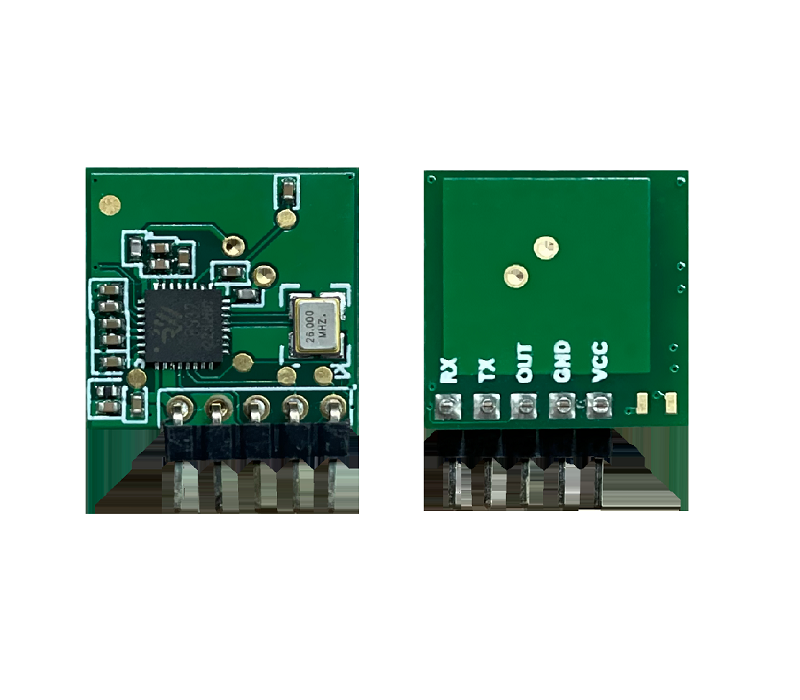

- Compact 14.5 x 14.5 mm module with integrated planar antenna and built-in LDO for wide 3.3V-12V DC operation.
- UART and I2C communication interfaces for easy integration with host controllers and sensor networks.
- Advanced multi-filter algorithm provides strong immunity to environmental interference (temperature, humidity, dust, noise).
- Penetrates non-metallic materials like glass and plastic, ideal for concealed installation scenarios.
Out of stock
The Moresense MS58-1414D20M4 utilizes Doppler radar principles at the 5.8 GHz ISM frequency band to detect moving objects by analyzing frequency shifts between transmitted and reflected signals. Its mature CMOS technology enables a fully integrated, miniaturized design that maintains high performance in a compact footprint.
This sensor module features a built-in low-dropout regulator (LDO) supporting a wide input voltage range, making it suitable for both 3.3V/5V logic systems and higher 12V industrial supplies. Its sophisticated signal processing includes self-calibration and multi-filter algorithms, ensuring reliable operation unaffected by ambient light, airflow, or typical environmental noise, and allowing for dense deployment without crosstalk.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 8 × 7 × 2 cm |
